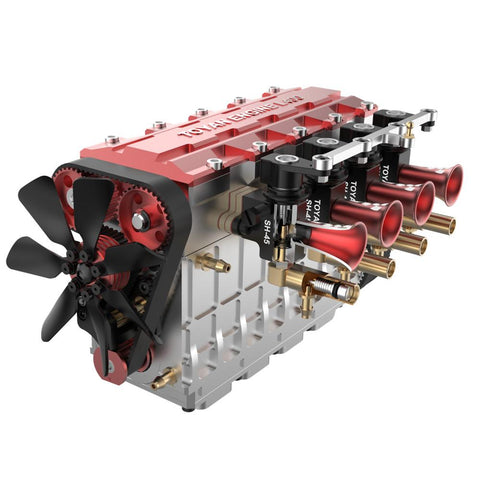

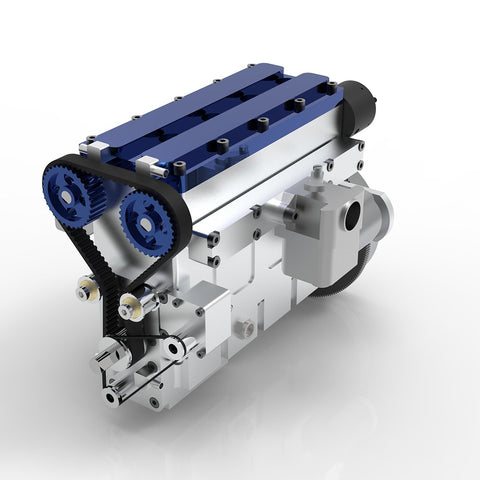

Engine Name | Toyan FS-L400 | Baxter | Enjomor D6 |
Photo | |||
Color | red | red blue golden | red& blue |
Version | Assembly | Finished | Finished |
Engine Weight | 1250 g | 3000g | 3000g |
Product Size | 121.05 x 43.67 x 90mm | 210 x 120 x 150mm | 190 x 131 x 125mm |
Displacement | 14cc (4×3.5cc) | 32cc (4×8cc) | 36cc (4×9cc) |
Cylinders | Four cylinders | Four cylinders | Four cylinders |
Strokes | four strokes | four strokes | four strokes |
Speed | 3200-13500 RPM | 1000-6000rpm | 7800r/min |
Idle Speed | 2000-3000 rpm | 900-1000 rpm | 2000-3000 rpm |
Piston Diameter | 16.60mm | 24mm | 23mm |
Piston Type | steel material | Double Groove 7075 Aluminium Alloy Piston | Three-ring Design |
Stroke | 17.00mm | 20mm | 22.9mm |
Power | 3.05ps | 1-2HP | 1.6HP |
DOHC | NO | NO | yes |
Fuel | 20-25% nitro methane fuel | Gasline 95# / 97# / 98# | 92#/95# gasoline |
Lubrication | has no lubrication system | Independent Lubrication | 70-80mL dosage, 20-40w oil viscosity |
with Oil Pan | no | no | yes |
Cooling Method | Water-cooled | Water-cooled | Water-cooled |
Cooling System | internal water-cooled pump | external water-cooled pump | external water-cooled pump |
Ignition Method | Glow plugs/electric regulation | Hall type CDI pulse electric ignition | Hall type CDI pulse electric ignition |
Start Mode | Electric start (motor starter) | Electric start (motor starter) | Electric start (motor starter) |
Battery(not included) | 2S-3S lithium batteries 7.4-11.1V | 18650 batteries *3 | 3S/DC12-24V 5A |
with Exhaust Pipe | no | yes | yes (integrated) |
with Starter kit | no | yes | no |
Starting accessories | glow plugs, ignition module, water tank etc (not included) | Fuel Tank Igniter Battery Box Hall Sensor Fuel Pipe Water Cooled Pipe Filter Water Cooled Platoon Kit Push Botton Switch (included) |
sparks plugs, 12-24v brushless ESC, fuel ank, oil tube, Hall type cdi pulse igniter,governor & water cooling accessories.(not included) |
Application | for 1/8 1/10 1/12 1:14 RC Model Car Ship Airplane | for 1/5 RC Model Car / Ship/ Airplane | for 1/8 or 1/5 RC model cars, boats, tanks |
Package | 1Set x Engine | .1 x Engine Model .1 x Fuel Tank .1 x Igniter .1 x Battery Box .2 x Hall Sensor .1 x Fuel Pipe .2 x Water Cooled Pipe .1 x Filter .1 x Water Cooled Platoon Kit .1 x Push Botton Switch .1 x Manual |
1Set x Engine |
