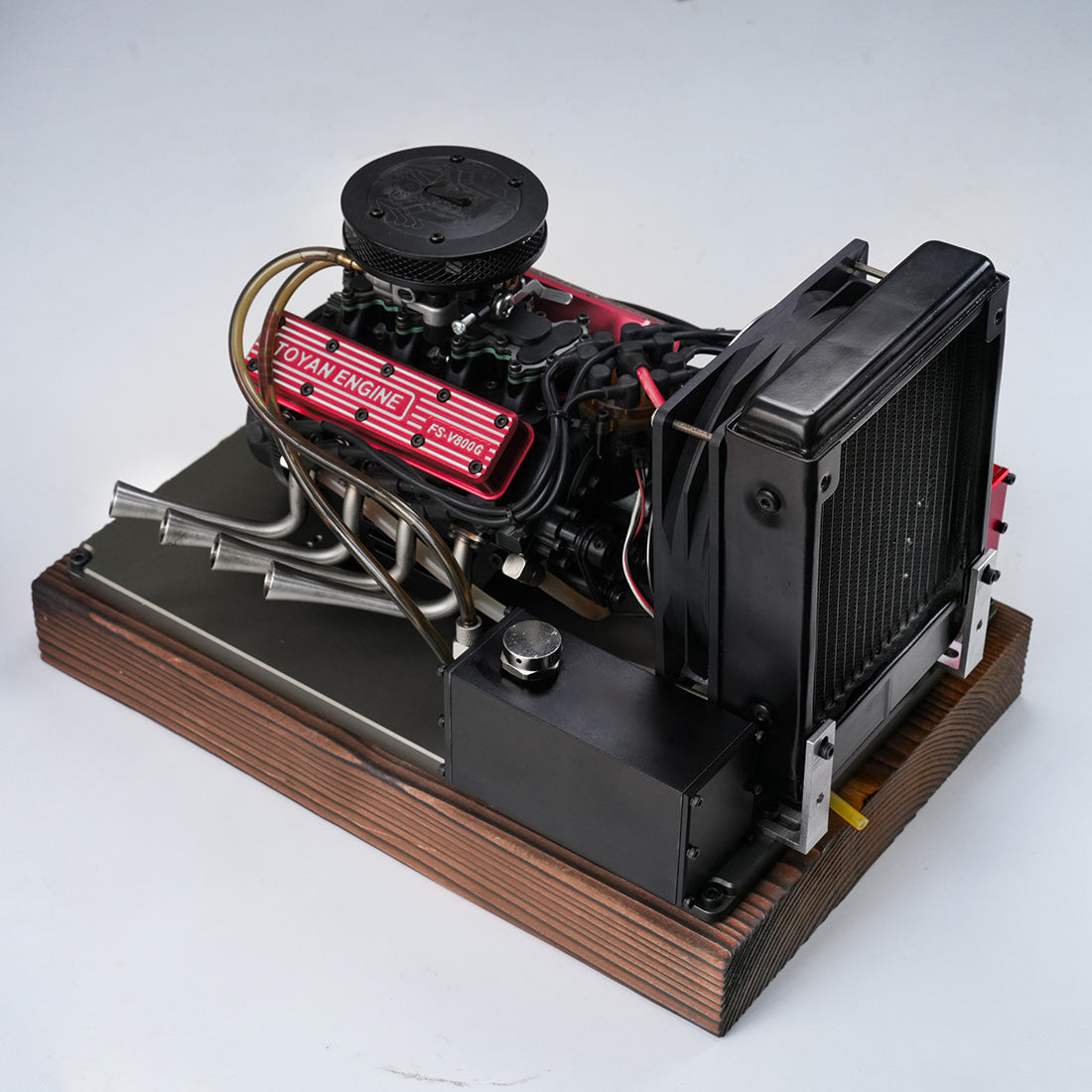

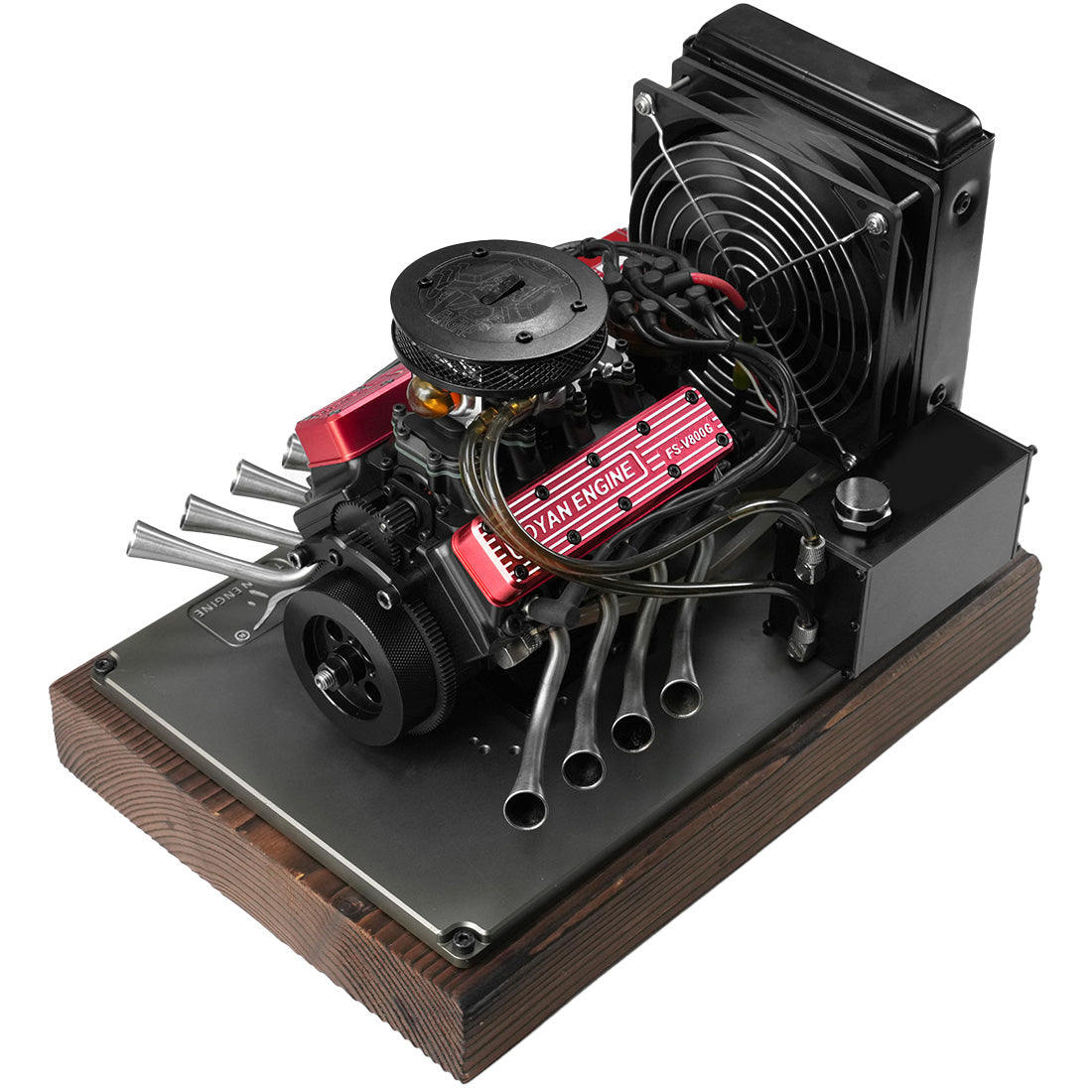

Eight pistons. Real gasoline. That deep, unmistakable V8 rumble. The TOYAN FS-V800WGPC is a 1/10-scale V8 you build with your own hands, and this complete set gives you everything to bring it to life: base, ignition, fuel and water cooling, all in one box.
Eight cylinders fire in sequence to give the deep, uneven burble of a classic V8, not the buzz of a single-cylinder model.
This one burns real gasoline. Pistons, crankshaft and valves all move under the engine's own power.
You build it part by part: crankshaft, eight pistons, camshaft and OHV valve train. When it fires up, you understand every part of it.

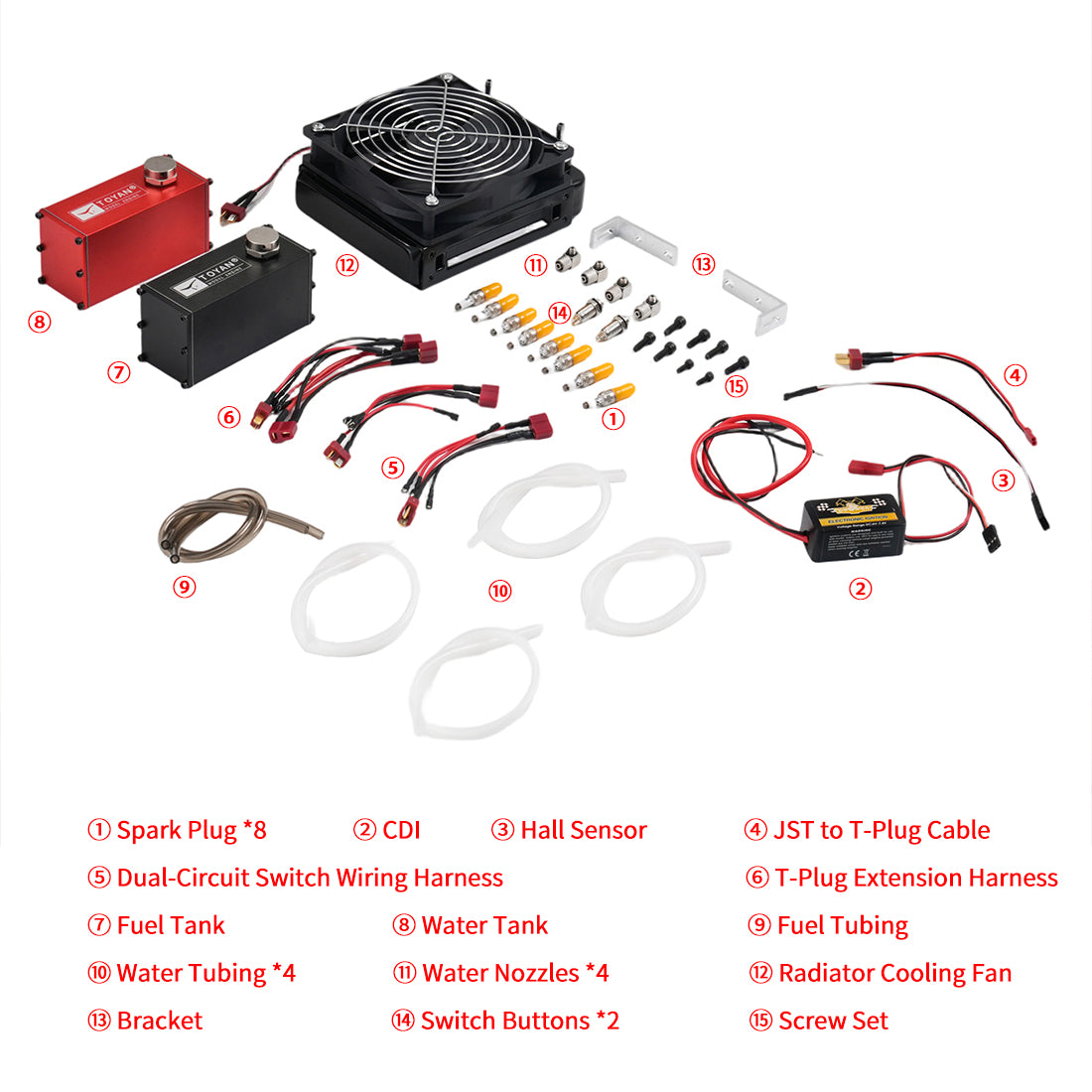

The complete set includes the base, ignition, fuel system, water cooling and battery, all made to fit this engine. Nothing extra to hunt for.
Dual water cooling with a radiator and fan keeps the engine at a steady temperature, so you can enjoy longer runs.

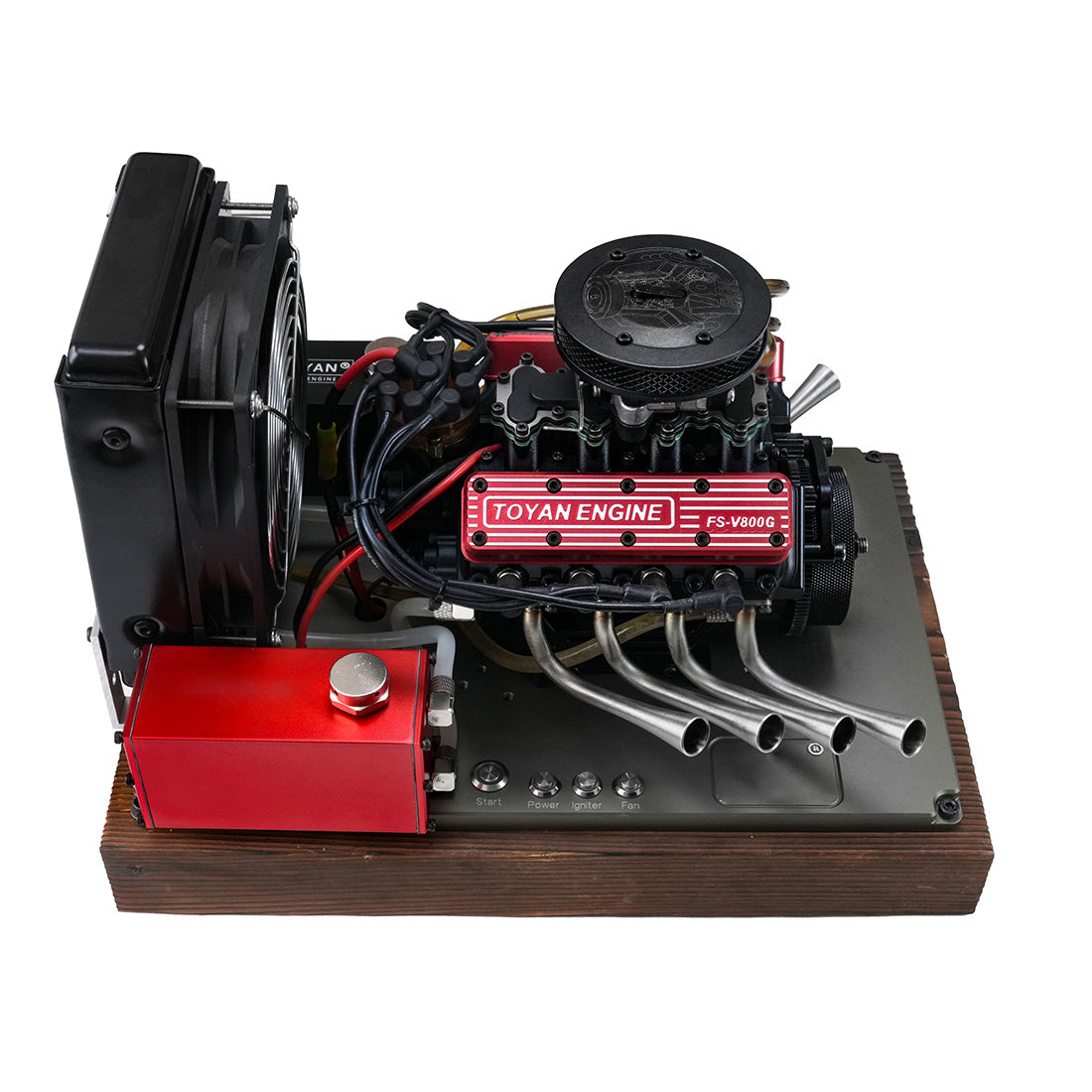

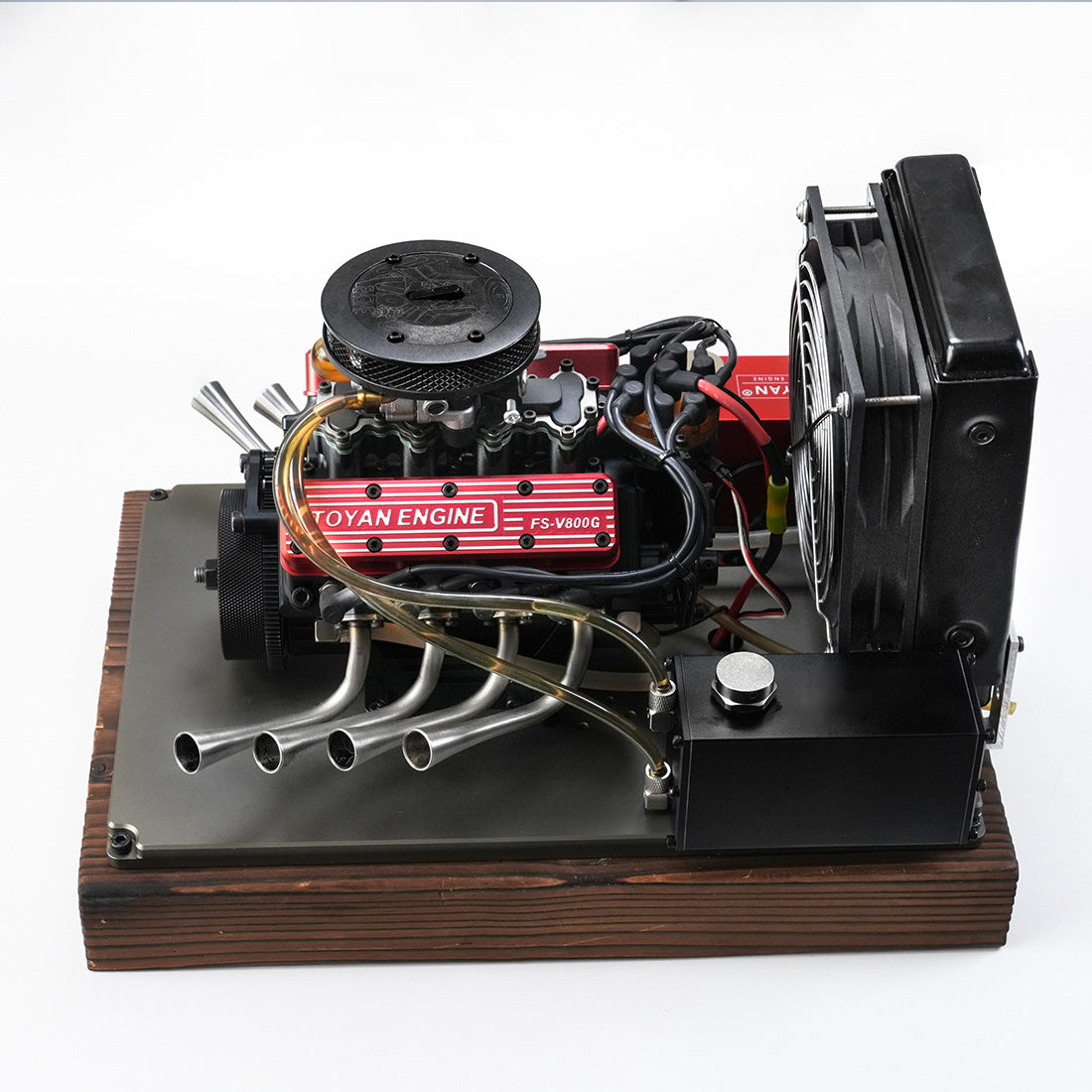

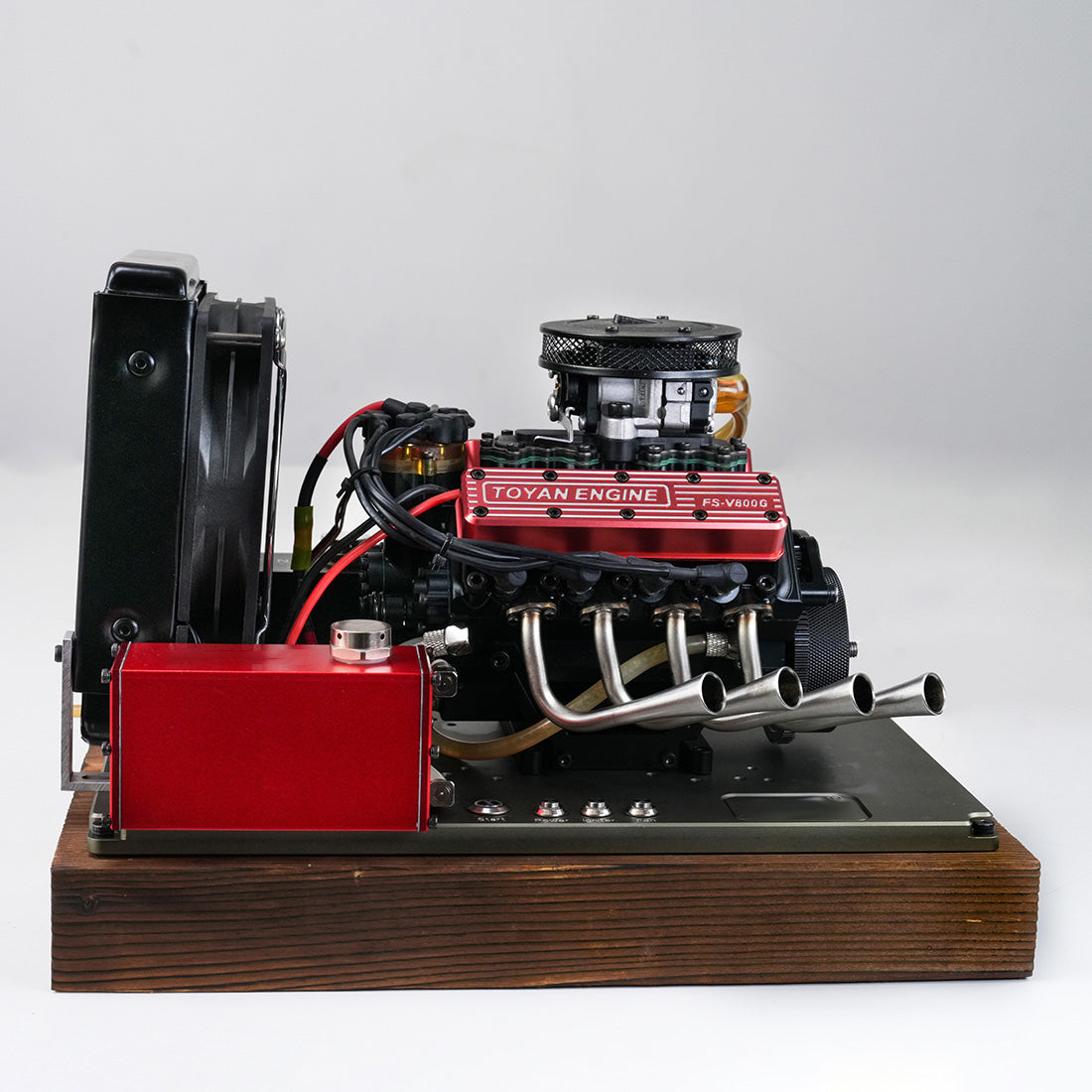

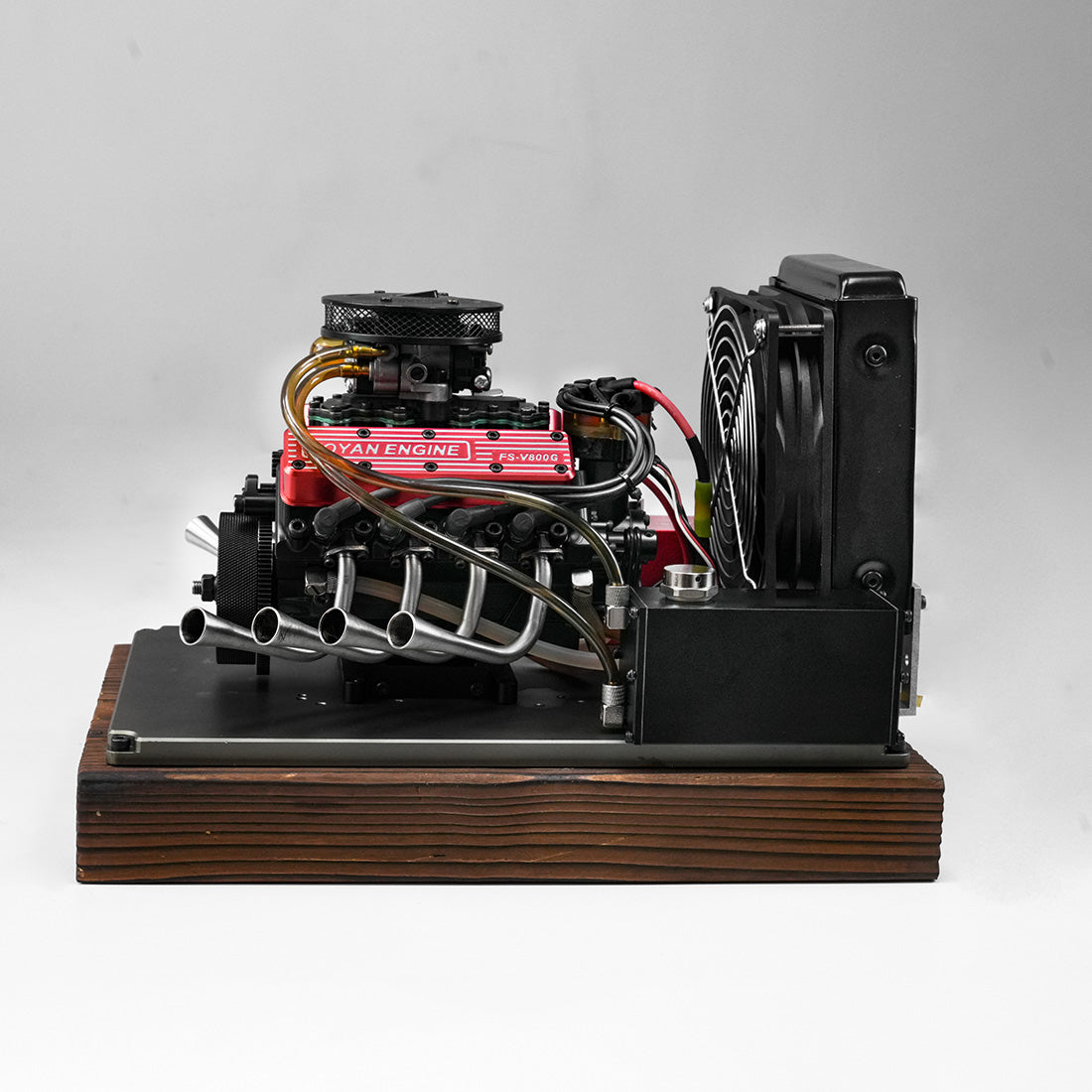

The red V8 on its display base looks stunning on a desk or shelf, whether it is running or not.
All three sets include the same V8 engine and everything needed to run it. The difference is the base and how the system is laid out.
Watch how the new base is installed and wired, step by step, before you start your build.
| Item | 2026 Wooden Base | Silver Aluminum | Black Aluminum |
|---|---|---|---|
| Engine Assembly Parts Set | 1 | 1 | 1 |
| Assembly Tools Set | 1 | 1 | 1 |
| Manual | 1 | 1 | 1 |

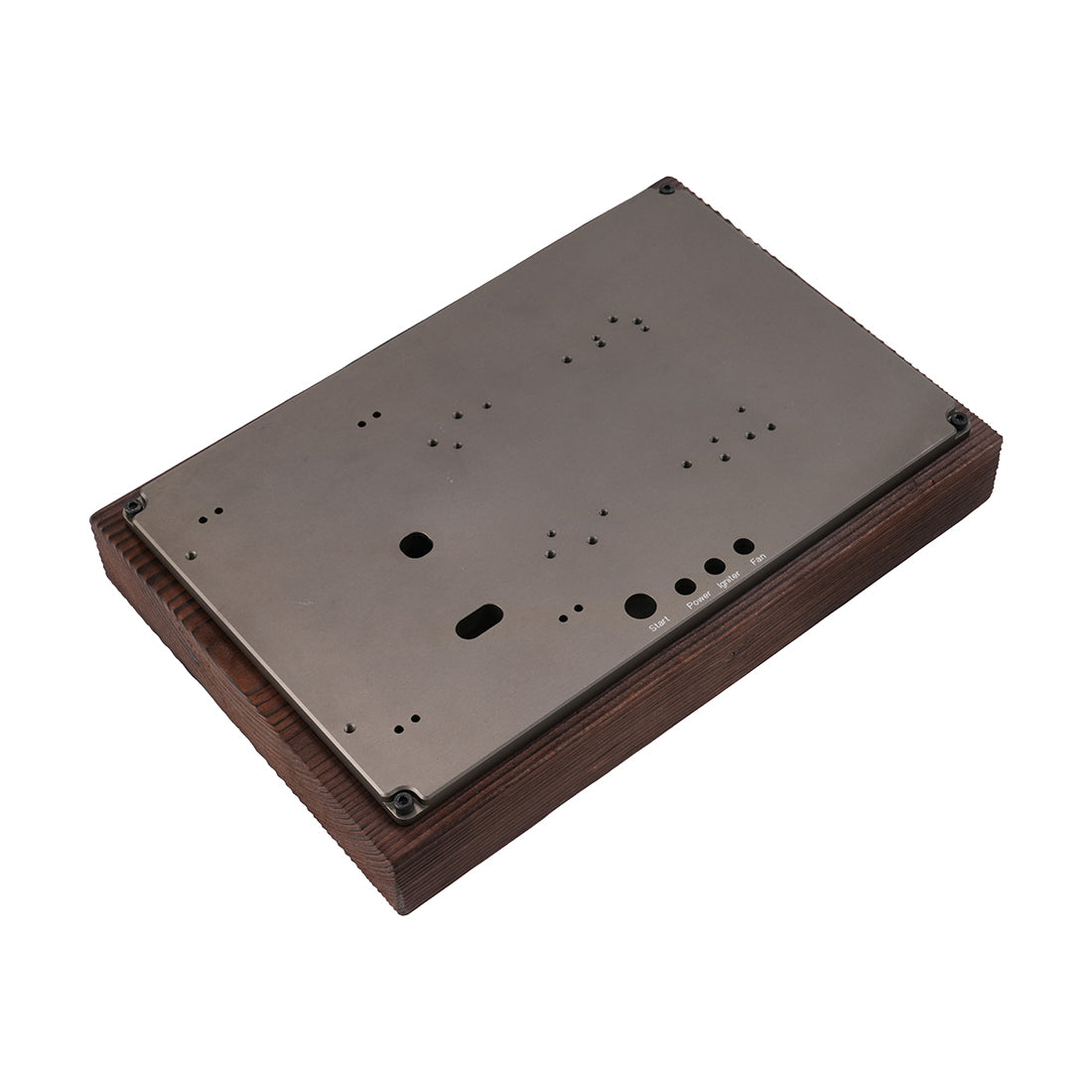

| Base | Wooden base, black metal plate | Silver aluminum | Black aluminum |
| Spark Plug | 8 | 8 | 8 |
| CDI Igniter | 1 | 1 | 1 |
| Starter Module | — | 1 | 1 |
| Hall Sensor | 1 | — | — |
| Fan and Radiator Bracket Set | 1 | 1 | 1 |
| Fuel Tank and Bracket Set | 1 | 1 | 1 |
| Fuel Pipe | 1 | 1 | 1 |
| Water Tank and Bracket Set | 1 | 1 | — |
| Water Pipe | 4 | 2 | 2 |
| Water Cooling Joint | 4 | — | 2 |
| Switches | 2 | — | — |
| Wiring Harnesses | 4 | — | — |
| Screws & Nuts | Screw set | M3×10 ×16, M4×8 ×4, M2×5 ×8, M4 nut ×8 | M3×10 ×16, M4×8 ×4, M2×5 ×4 |
| Spark Plug Socket Wrench | 1 | 1 | 1 |
| Battery | 3S 2000mAh LiPo | Lithium battery | Battery |
| Charger | Not included | 1 | 1 |
Please note: the 2026 Wooden Base set does not include a charger. You will need a balance charger for 3S LiPo batteries.
| Model | TOYAN FS-V800WGPC |
| Scale | 1/10 |
| Engine type | Gasoline, V8, four-stroke |
| Valve mechanism | OHV (overhead valve) |
| Displacement | 28cc (3.5cc × 8) |
| Bore × stroke | 16.70 × 17.00mm |
| RPM range | 1,950 - 8,650 rpm |
| Maximum power | 3.85PS |
| Output shaft diameter | 8mm |
| Cooling | Water cooling |
| Lubrication | Mixed fuel lubrication |
| Starting | Brushless motor starter |
| Ignition | CDI ignition with distributor control |
| Firing order | 1-5-4-3-6-8-7-2 |
| Spark plug | Imperial thread 1/4-32, ME-8 |
| CDI power | 7.4 - 12V (2S-3S battery) |
| Fuel | 92# or higher gasoline |
| Oil | 2T/4T engine oil |
| Engine weight | 2400g |
| Engine size | 17.7 × 17.35 × 15.39cm |
| Ages | 16+ |
Fuel: the engine is lubricated by its fuel. Mix 92# or higher gasoline with 2-stroke oil at a 25:1 ratio. No separate engine oil is needed.
Cooling: the engine has 4 coolant ports. Connect all of them to the cooling system as shown in the manual. Do not seal any ports, as this reduces cooling and can cause overheating.
Questions? Email service@stirlingkit.com and we will help you get it running.
