DIY Multi-Functional Mini Alloy Desktop Lathe for Model Engine Hobbyists

Product details

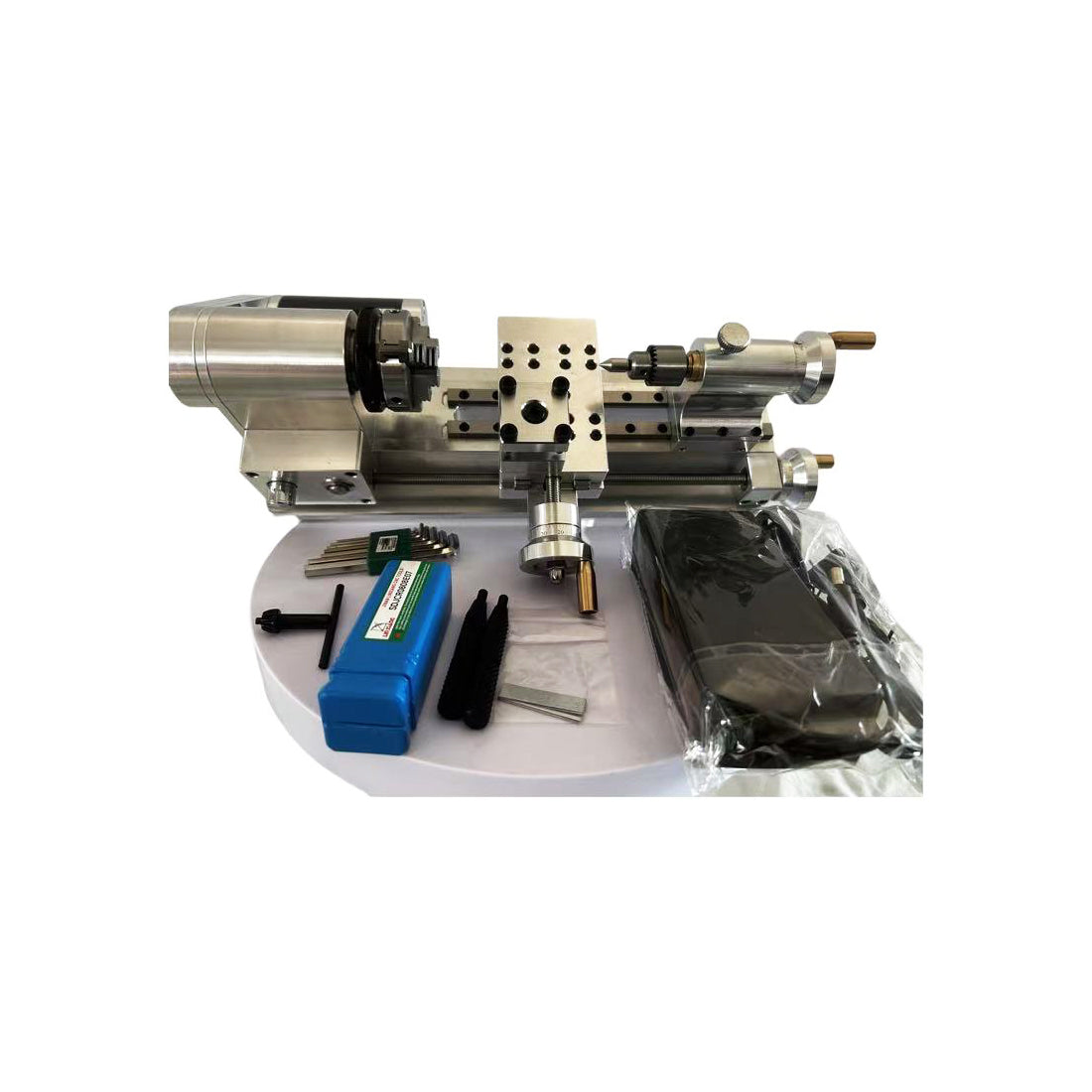

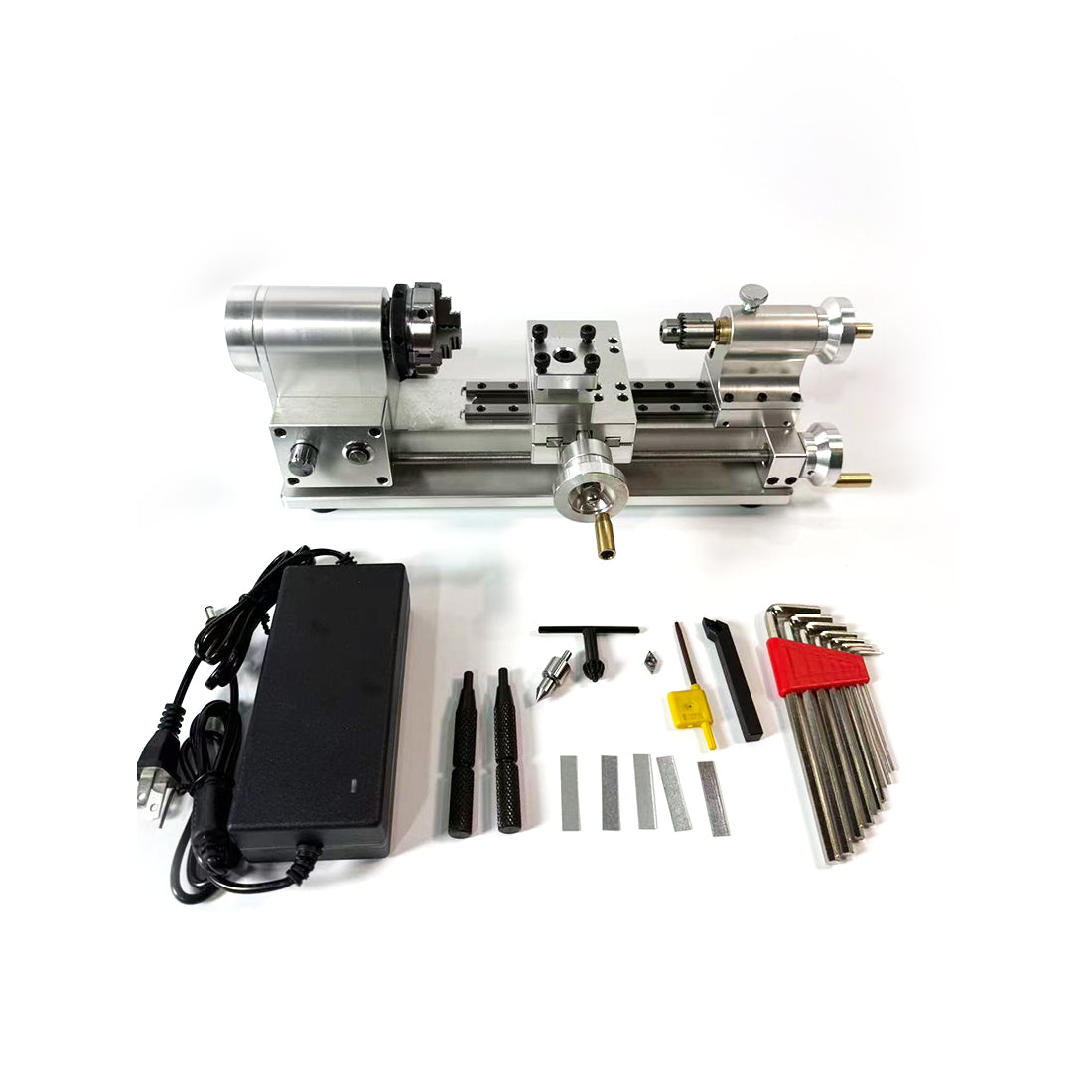

DIY Multi-Purpose Mini Alloy Desktop Lathe with Tool and Fixed Center

Features:

.All-Metal Precision Structure: The entire machine is constructed from high-rigidity alloy components. The bed, spindle, tool holder, and tailstock are all metal-machined parts that provide strong structural stability and help reduce vibration during machining operations.
.Compact Modular Design: The modular layout allows the headstock, tool holder, and tailstock to be independently removed or adjusted. The compact structure fits easily on a desktop and can be conveniently moved or stored in small workshop spaces.
.Multi-Function Machining Capability: Equipped with a three-jaw self-centering chuck and interchangeable drill chuck, the lathe supports turning operations such as external shaping, internal holes, and thread cutting, while the tailstock can hold drill bits for drilling tasks.
.Manual Precision Feed Control: The tool carriage operates through a lead screw and handwheel system with scale markings, allowing controlled adjustment of cutting depth and feed movement for accurate machining results.
.Portable Desktop Workshop Tool: The machine maintains structural rigidity while keeping overall weight manageable. Anti-slip base pads help stabilize the lathe on work surfaces, making it suitable for desktop workshops, educational demonstrations, and maker environments.

Specifications:

.Material: Alloy
.Chuck Model: K01-50 (Thread M14*1), Through Hole 11mm
.Speed Range: 100-2800 RPM, with stepless speed regulation
.Z-axis Travel: Maximum 100mm
.Spinning Diameter: Approx. 50mm
.Motor: 60W Motor
.Power Supply: 24V
.Product Weight: 6000g
.Package Weight: 6500g
.Product Dimensions: 37 x 21 x 13cm
.Package Dimensions: 43 x 25 x 20cm
.Packing: Box
.Age: 16+
