6cc See-Through Single Cylinder SOHC Engine Model Kits STEM Toy

Project Overview

Ever wanted to assemble a real internal combustion engine from raw components and witness multi-stage energy conversion in real time—from Chemical → Mechanical → Electrical Energy?

We are actively developing an all-new DIY Unassembled Single-Cylinder SOHC 4-Stroke Engine Generator Kit. Engineered specifically for scale model builders and STEM education, this full DIY kit provides an authentic hands-on assembly experience to build a fully functional desktop micro-power plant from the ground up.

Engine V2.0 Design Upgrades & Kit Features

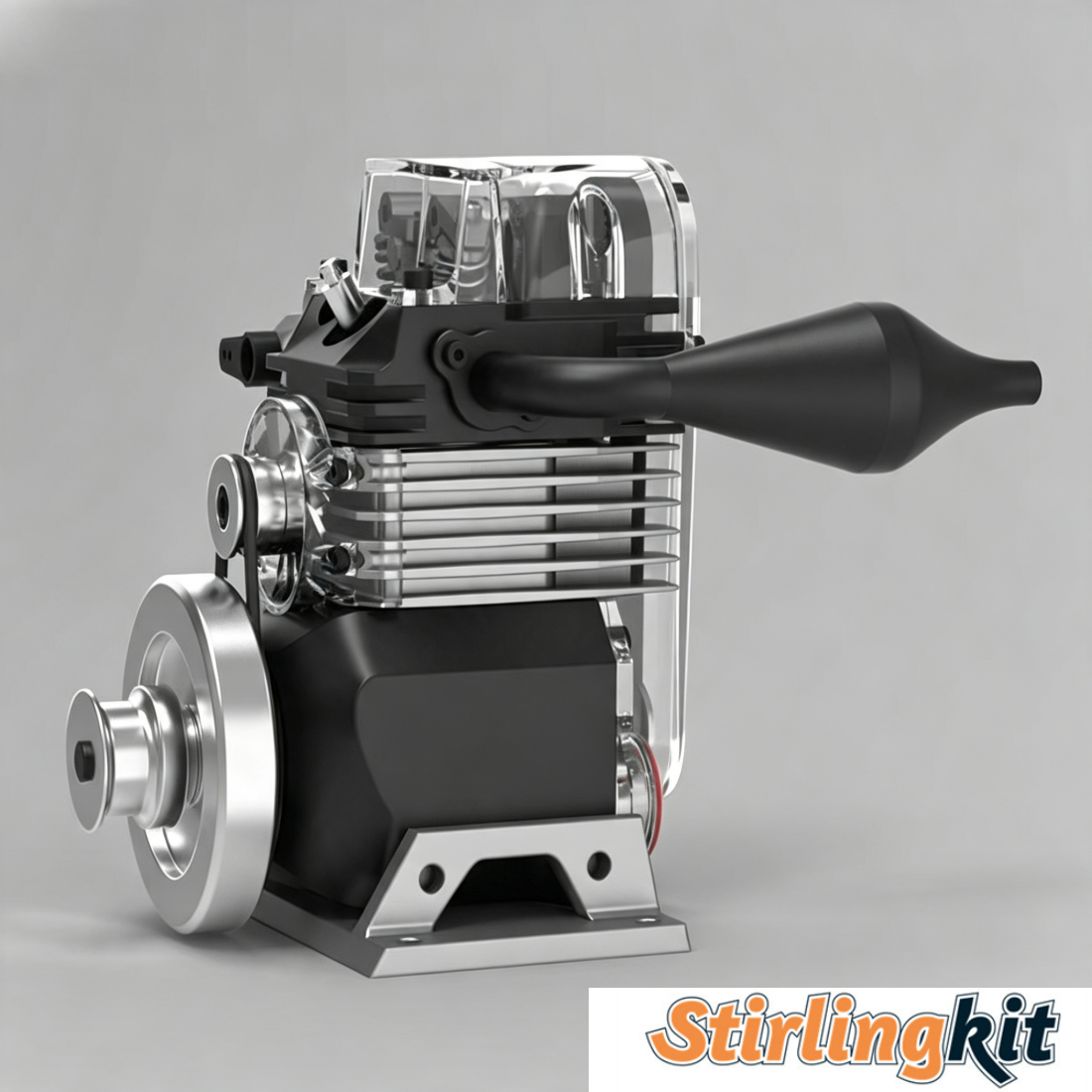

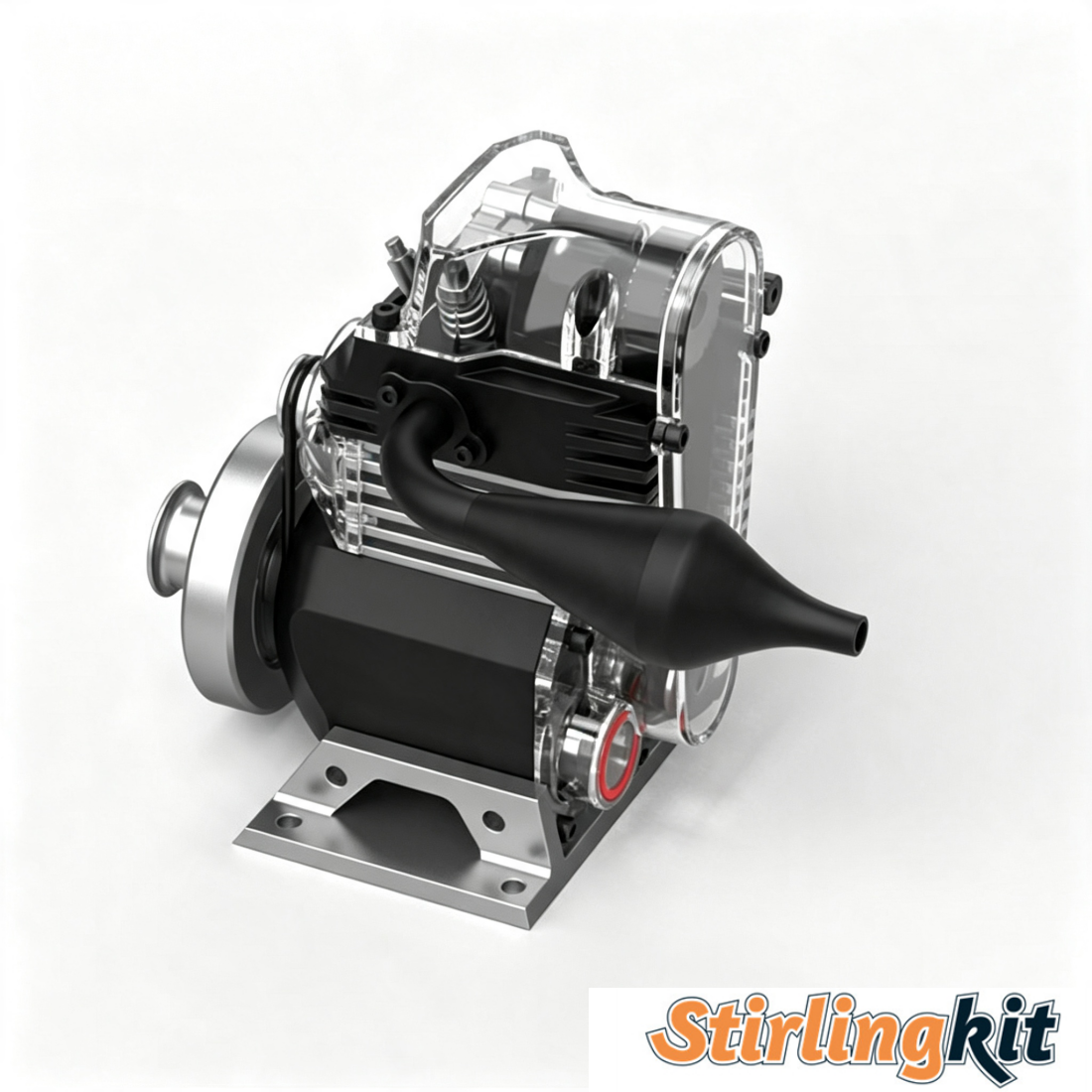

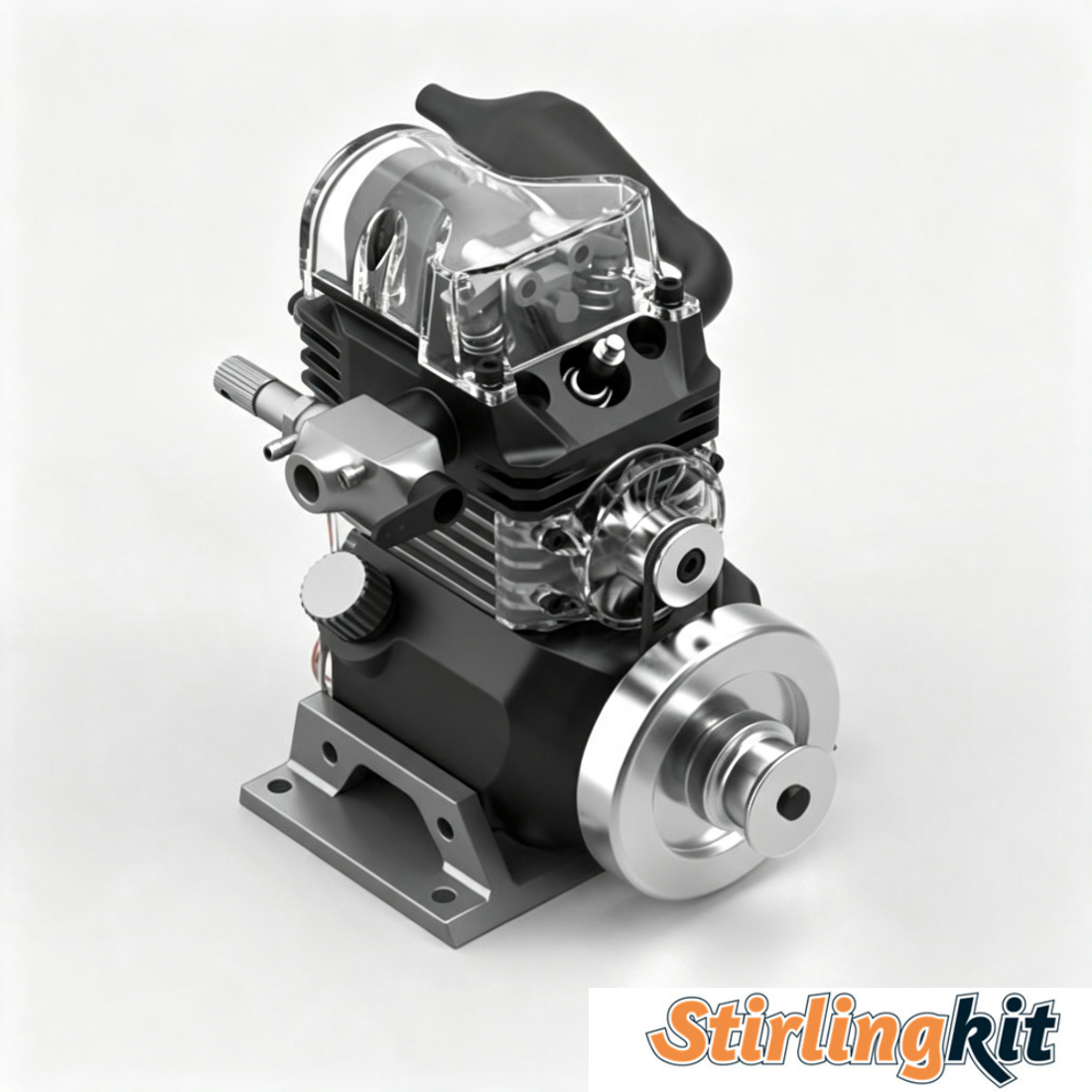

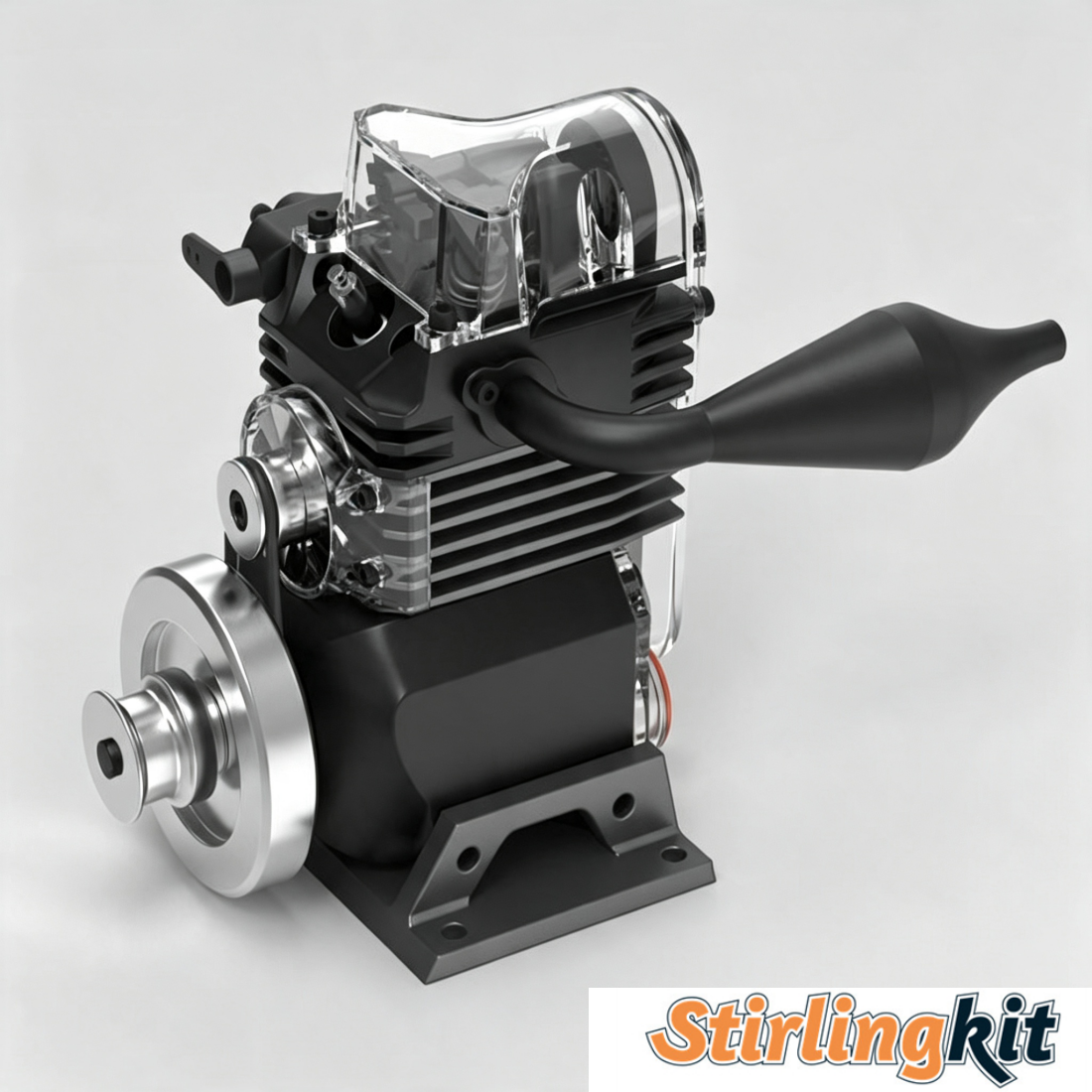

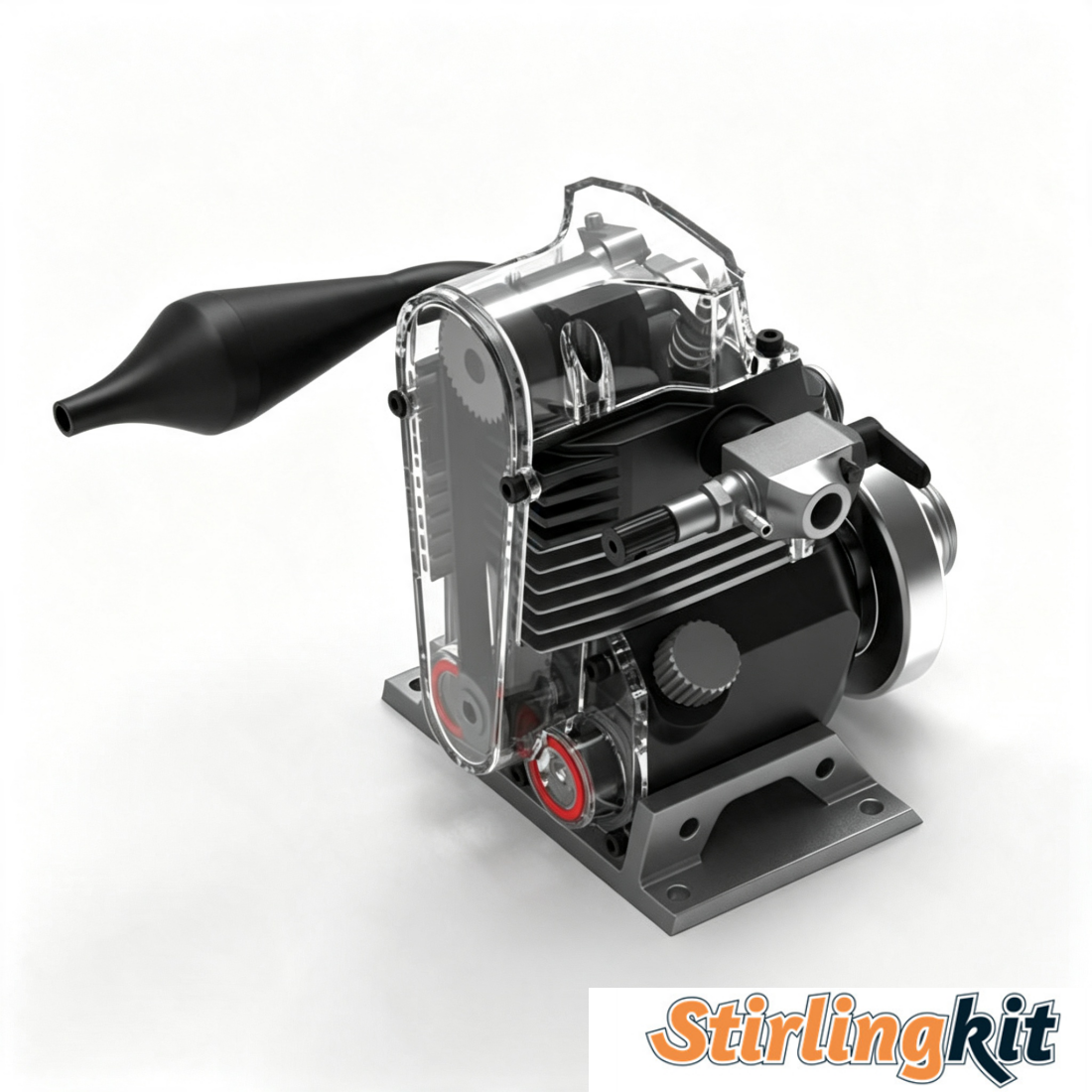

• Refined Engine V2.0 Architecture: Features an optimized hemispherical combustion chamber, V-shaped valve orientation, and a precision Single Overhead Camshaft (SOHC) layout. A dedicated crankcase balance shaft is integrated directly into the block to ensure smooth, low-vibration operation.
• 100% Unassembled DIY Kit: Delivered as a complete component-level assembly kit, offering full hands-on building satisfaction as you assemble every valve, gear, belt drive, and electronic connection.

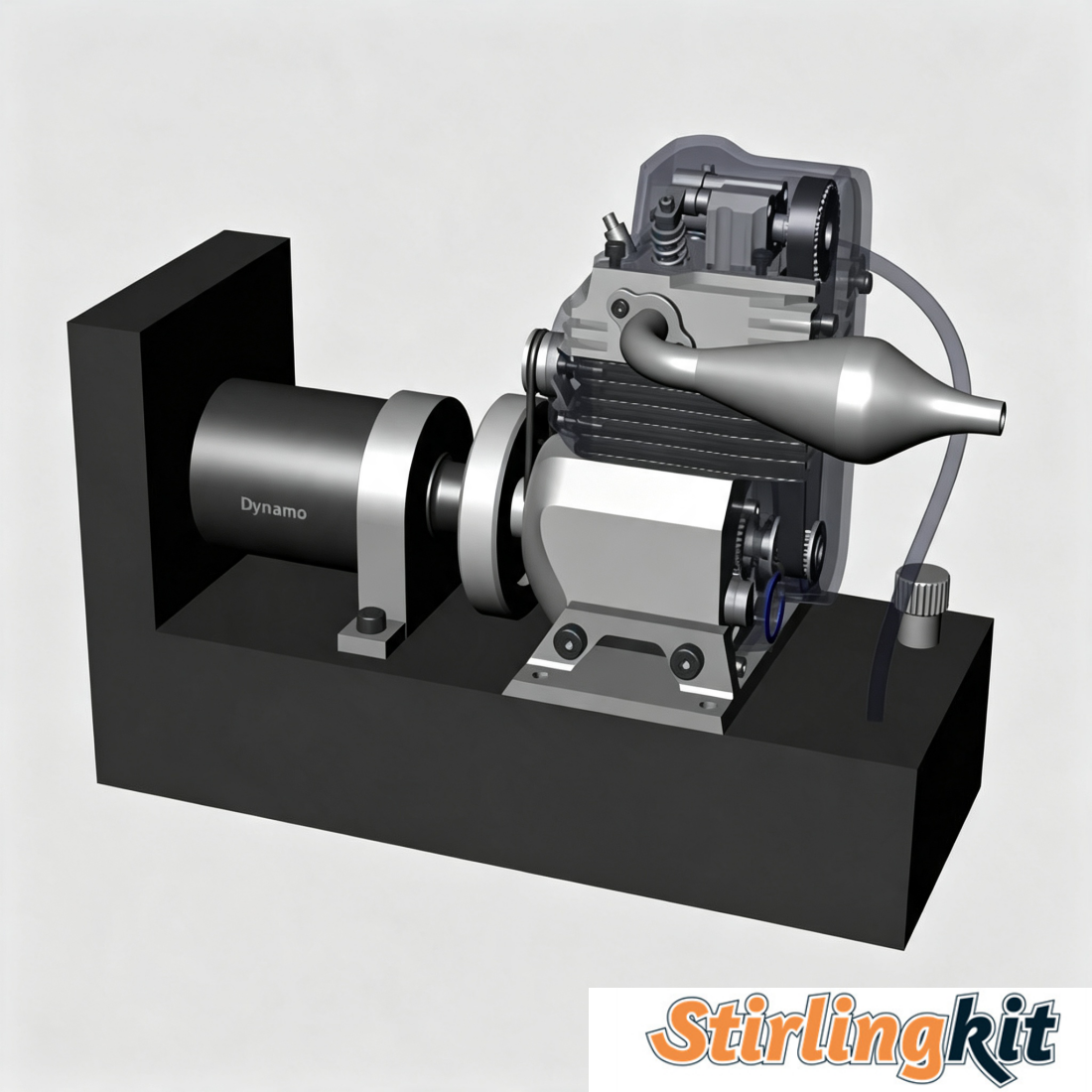

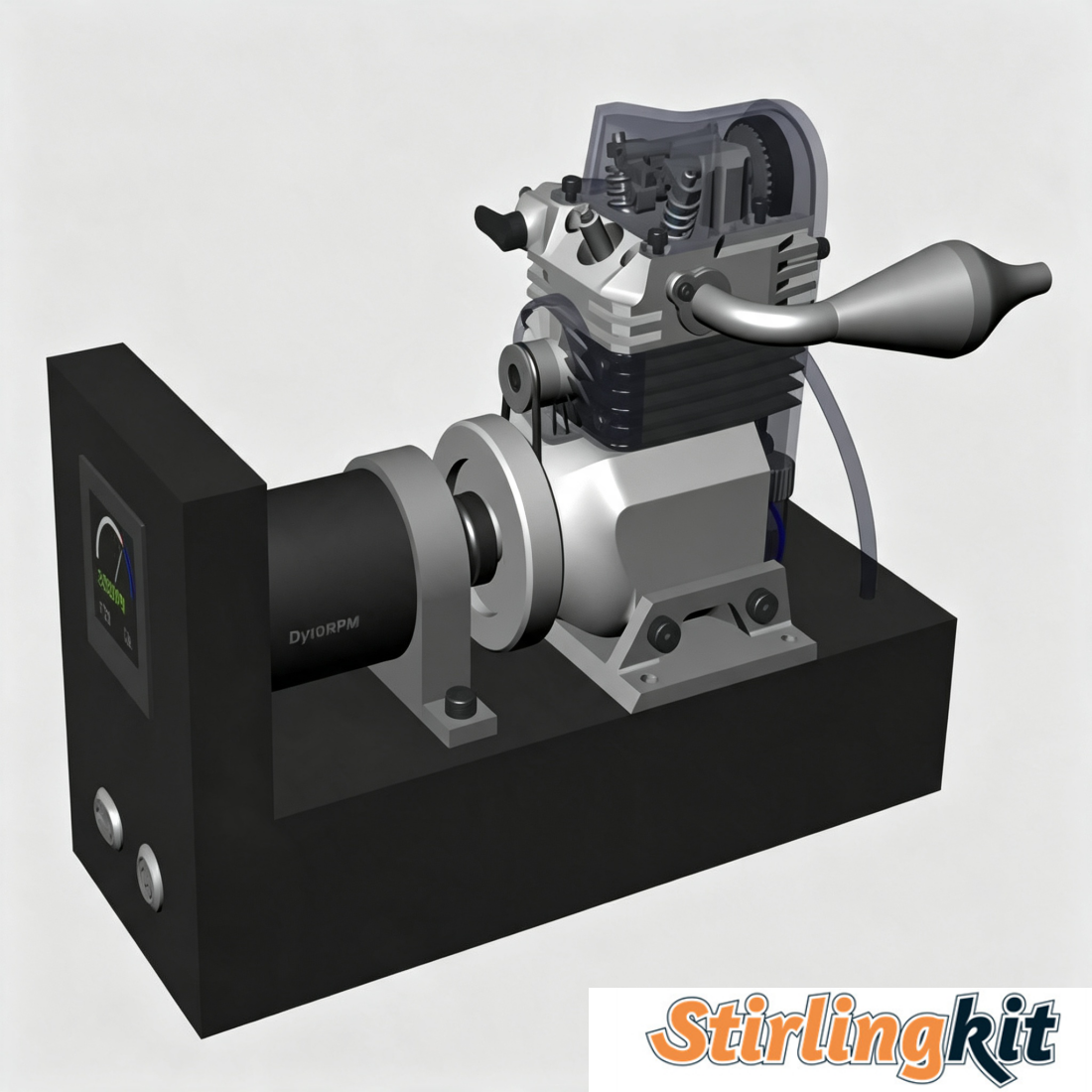

• Functional 20W Generator Setup: The 6-7cc engine drives a heavy-duty 20W generator module built into the base via a classic belt-drive system, capable of generating actual power output for USB devices once running.

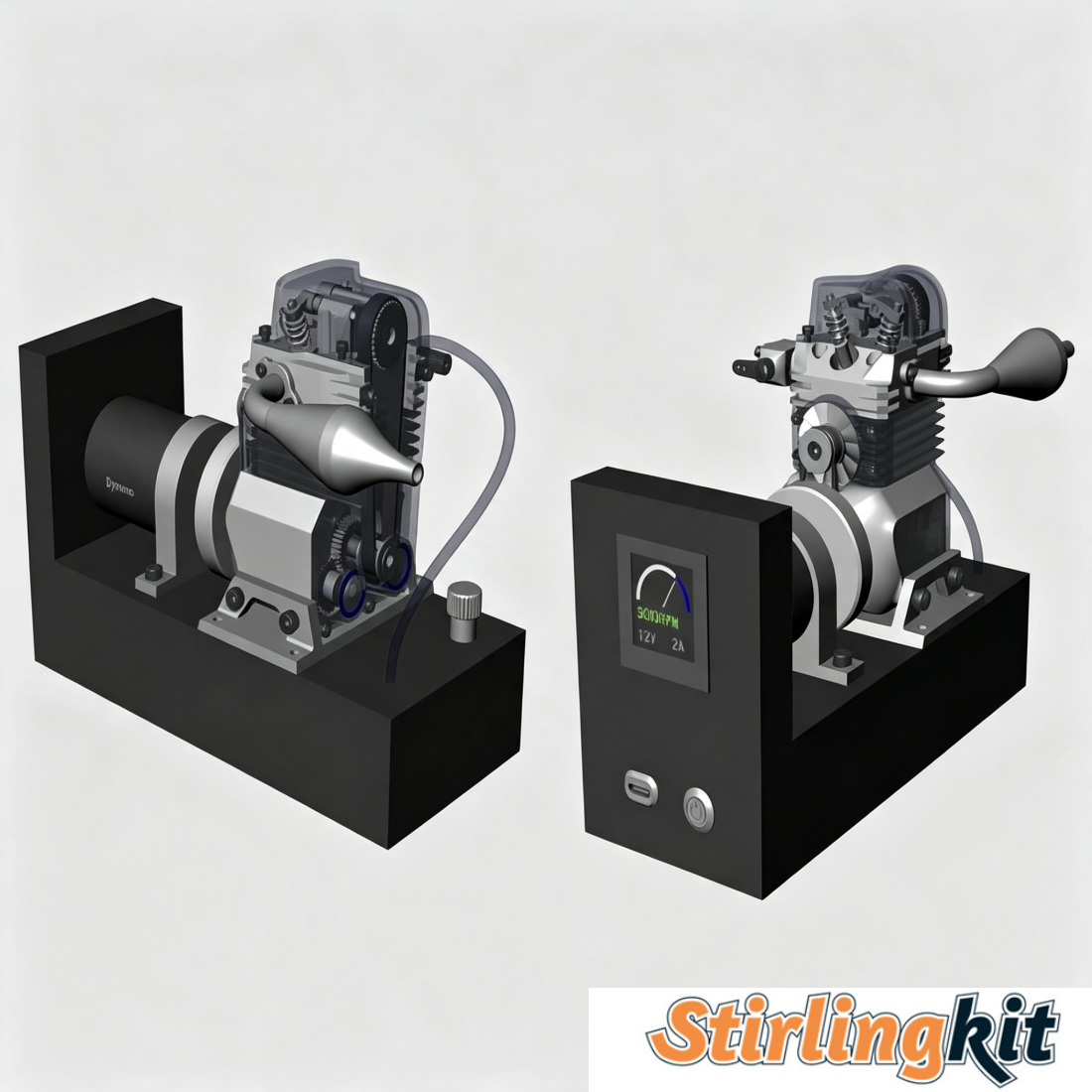

• Live Telemetry Dashboard: Outfitted with an integrated LCD monitoring unit for real-time telemetry. Track live voltage and output metrics dynamically as you rev the engine.

R&D Status: Engine V2.0 Review & Community Co-Design

Current Phase: Engine Design Optimization | Format: Unassembled (KIT)

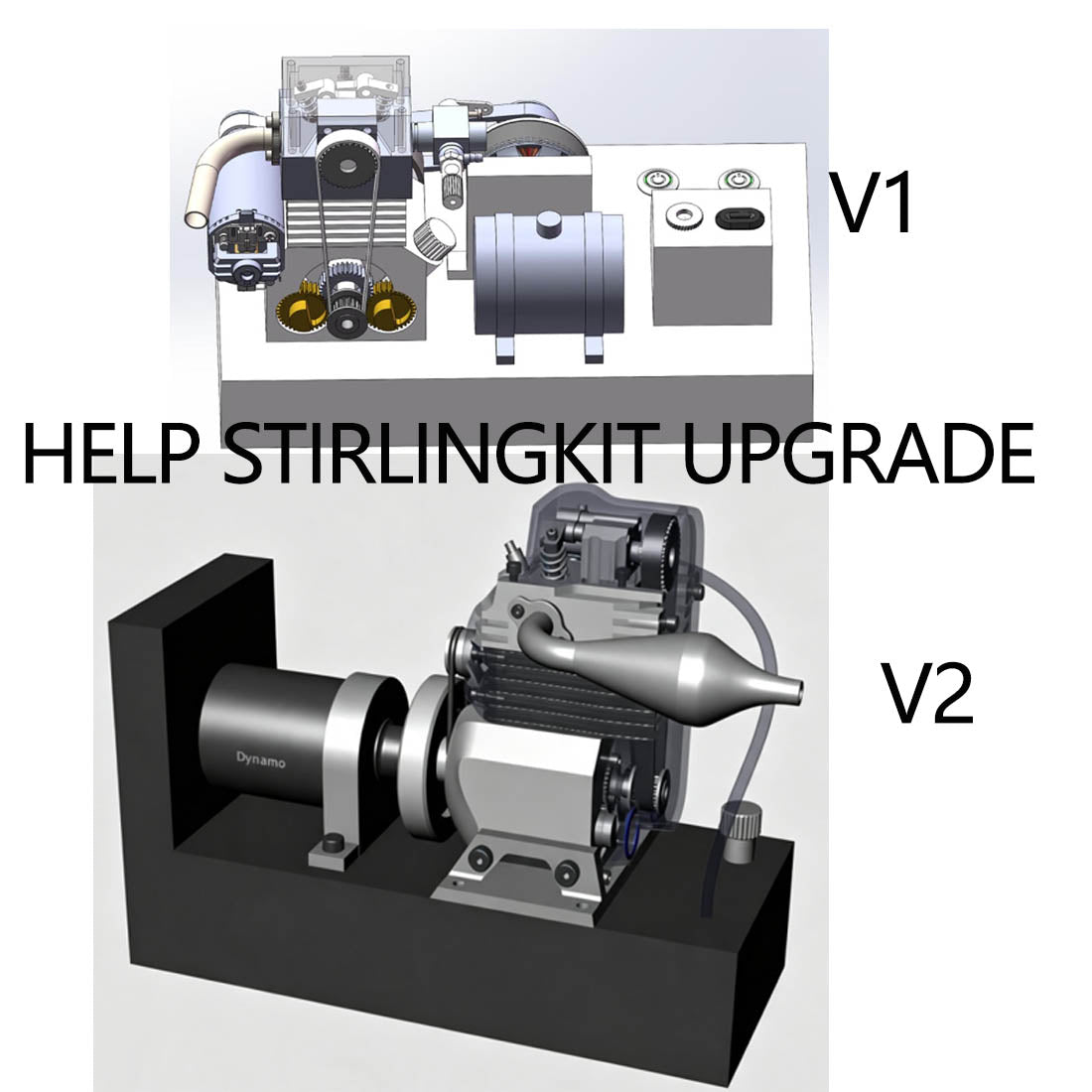

Based on earlier feedback from model enthusiasts, we've updated the internal engine design. As our engineering team works toward final tooling and pre-production testing, we welcome your feedback on these V2.0 modifications.

Help us fine-tune this project! Please take our quick 30-second survey to share your suggestions on the updated engine design and subscribe to receive direct engineering progress reports.

Review Design & Take the 30-Sec Survey
