RETROL GF-01 Miniature Metal Working Workshop Model Kits with Mechanical Transmission System for Retrol Steam Engine Models

$249.99
$249.99
Sold Out

In Stock Now. Save Auto-20% OFF,Get your holiday gifts early
🎁 Limited stock shop your gifts early

- +

★ All U.S. Orders Tax-Free! | Easy Returns | Secure Payment | Free Shipping

Product details

RETROL GF-01 · Line Shaft Workshop

A Working Mini Machine Shop.
Right on Your Desk.

A drill press that actually drills. A pedestal grinder with real stones. A street lamp on the corner. All belt-driven from one overhead line shaft — exactly the way factories ran in the 1890s.

  • Ships from USA · 3-5 Days
  • 48+ CNC-Machined Parts
  • Functional Drill Press
  • Steam-Engine Ready
What's on the Bench

Every Machine Earns Its Place

If you grew up on metal construction sets and building kits, this scene will feel like coming home — except this time, everything runs. Brass, stainless steel, and aluminum alloy throughout; no plastic pretending to be metal.

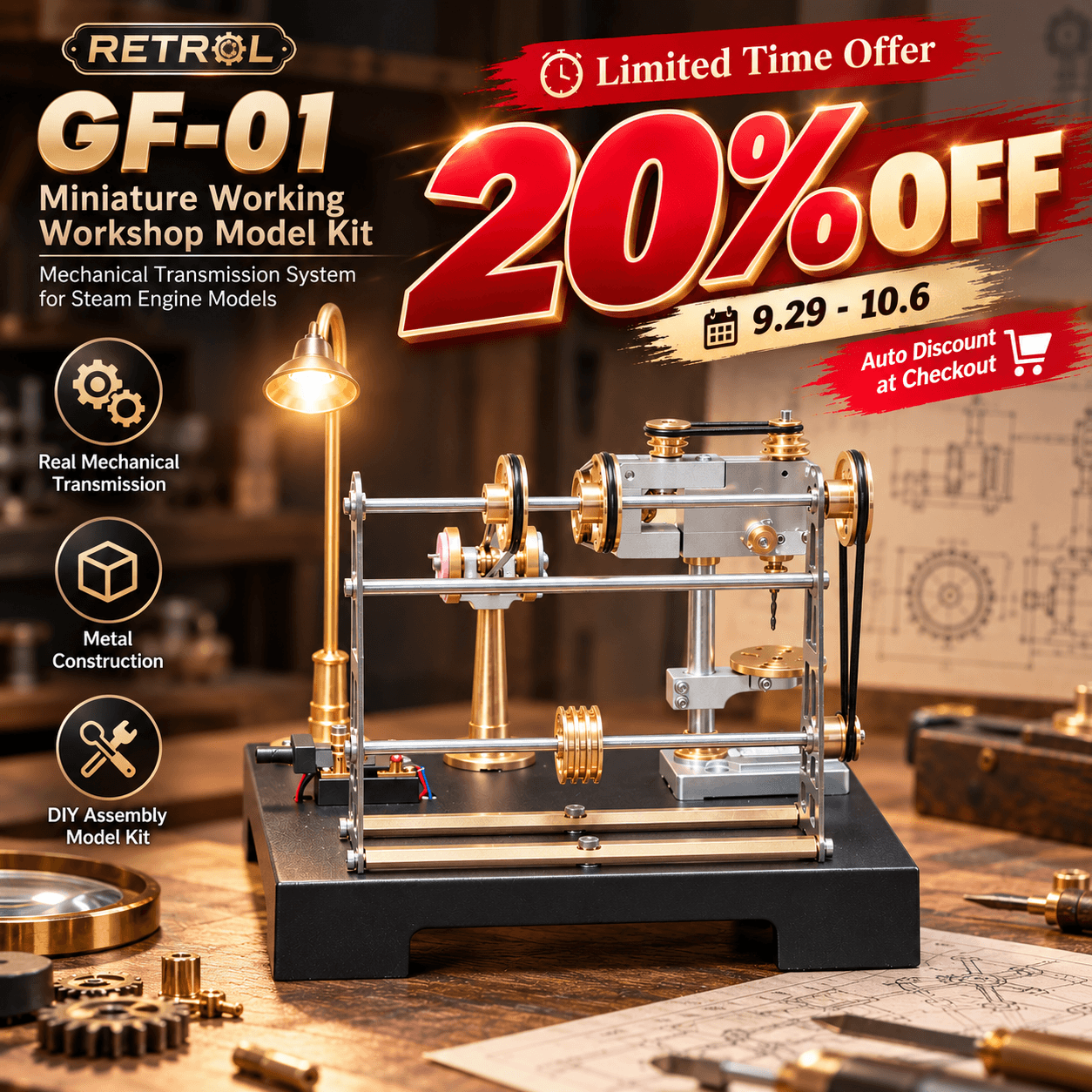

RETROL GF-01 miniature line shaft workshop model with drill press, pedestal grinder and street lamp
Fully Functional

3-Speed Drill Press

Step pulleys on top give you three drive ratios, just like the full-size machine it honors. Chuck up the included 1.5 mm bit and it will genuinely drill through soft stock. Not a prop — a tool in miniature.

Real Stones

Pedestal Grinder

Twin abrasive wheels on a belt-driven arbor, mounted on a classic pedestal. Watch them spin up as the line shaft turns overhead.

Dual Power

Corner Street Lamp

A vintage-style switch controls the warm glow. Run it from 2×AA batteries (not included) — or wire it to the generator on a RETROL steam engine and let steam make the light.

The Heart of It

Overhead Line Shaft & Belts

Flange bearings, pulleys, and three drive belts distribute power from a single input shaft to every machine below — the same transmission logic that ran entire 19th-century factories from one engine.

Build Experience

Laser-Cut Frame, Clean Threads, Nested Packing

Tabbed uprights lock into slots on the black iron base for a surprisingly rigid structure. Threads stay clean and true after powder coating, and every part arrives nested in protective foam. Well-illustrated instructions keep each step to a handful of parts — most builders finish in an evening.

Bring the Workshop Home

48+ CNC-machined metal parts. One evening's build. A lifetime on your desk.

Add to Cart ↑
  • Ships from USA · 3-5 days fast delivery
  • US orders tax-free
  • 30-day returns
  • Replacement parts support
How Factories Ran Before Motors

One Engine. One Shaft. A Whole Workshop.

Before every machine had its own electric motor, a single engine spun an overhead shaft that ran the length of the factory floor. Leather belts dropped down to each machine. The GF-01 recreates that power path faithfully, at desk scale:

Power In → Overhead Shaft → Drive Belts → Drill · Grinder

Turn the input shaft by hand and watch the whole shop wake up — or connect a real power source below.

Your Shop, Your Rules

Two Ways to Display It

Static — The Desk Piece

Leave the three drive belts off and the GF-01 sits as a clean, sculptural machine-shop scene for your desk, shelf, or office. Builder's tip: tape the belts under the base so they're ready the day you decide to upgrade.

Running — The Living Workshop

Loop the belts, connect a steam engine, and the scene becomes hypnotic: pulleys turning, stones spinning, the lamp glowing over it all. More entertaining than whatever's on TV.

From the Machinist Community
Reviewed on YouTube by a veteran precision machinist, who praised the packing, the clean threads, and a build that went together “absolutely flawlessly.”
Watch the full independent build review at the top of this page
Add the GF-01 to Cart ↑
Go Further

Let a Real Steam Engine Run Your Shop

The RETROL SE-03 mill steam engine carries a matching drive pulley on its flywheel — designed from day one to power the GF-01. Fire the boiler, tension the belts, and watch steam pressure become spinning stones, a turning drill, and a glowing lamp. It also pairs with the SE-01, SE-02, and other RETROL steam engine models.

RETROL SE-03 steam engine driving the GF-01 miniature workshop by belt See the SE-03 + Workshop Full Set

Or start with the GF-01 alone — the mechanism turns by hand, the lamp runs on batteries, and the engine can come later.

Builder's Notes

Read These Before You Start

⚠️ Steering rod — hand-tighten only
The steering rod comes pre-installed and properly positioned at the factory. When fitting the steering wheel, tighten slowly by hand until secure — no tools, no extra torque. Over-tightening can break the rod threads. If you feel real resistance, stop and check alignment. Questions? Contact service@stirlingkit.com first.
Install the battery holder before anything else
Locate and mount the battery holder under the base before attaching the machines on top. Doing it later means laying the finished model on its side and putting pressure on the components — avoidable with this one step.
Keep the brass rails flat when tightening
Assemble the uprights and brass hex rods loosely first. Rotate each hex rod so its screw holes sit vertical, press the assembly down flat to the base, then tighten the end screws. This keeps the brass from bowing. Short screws go at the ends, long screws in the middle.
Align the belts before locking the pulleys
The upper shaft has no flats to index the pulleys, so don't commit the set screws until the belts run parallel to each other and square to the shaft. Oscillate the shaft gently while snugging each set screw, and don't over-torque — light pressure is enough and won't mar the shaft.
Two Allen keys make the cross rod easy
For the center support rod, come in with an Allen key from each end and tighten in opposing directions. The rod stays put and locks down rock solid.
Fit the pulley grub screws early
The set screws for the pulleys are easiest to keep track of if you install them in the pulleys at the start, before the pulleys go on their shafts.
Specifications

RETROL GF-01 at a Glance

Brand RETROL ENGINE
Model GF-01 Mechanical Workshop Model Kit
Material Aluminum alloy + brass + stainless steel
Parts 48+ pieces, 27 part types
Machines in Scene 3-speed drill press · pedestal grinder · street lamp · overhead line shaft with 3 drive belts
Lamp Power Steam-engine generator or 2×AA batteries (not included)
Compatible Engines RETROL SE-03 (drive pulley included on flywheel); also SE-01, SE-02, and other steam engine models
Product Size / Weight 18 × 16 × 19.8 cm · 1100 g
Package Top-and-bottom gift box · 22 × 20 × 8.5 cm · 1200 g
Recommended Age 16+
FAQ

Common Questions

Does the drill press really work?
Yes. It's a functional 3-speed drill press with step pulleys, capable of drilling tiny holes in soft materials with the included 1.5 mm bit. Spindle travel is approximately 6 mm — it's a working miniature, not a production tool.
Do I need a steam engine to enjoy it?
No. The GF-01 is a complete display model on its own — the lamp runs on AA batteries, and the mechanism turns freely by hand. The steam engine connection is the upgrade path, not a requirement. Many owners display it static first (belts off) and add an engine later.
Is any machining or drilling required to build it?
None. This is a bolt-together assembly kit — every part arrives CNC-machined and finished. If you can use a screwdriver and an Allen key, you can build the GF-01.
How long does assembly take?
Most builders finish in one relaxed evening. The illustrated instructions keep each step to a small number of parts.
Which steam engines can drive it?
The RETROL SE-03 is the designed-for match — its flywheel carries a drive pulley for the GF-01's belts. The SE-01, SE-02, and other steam engine models with a compatible pulley also work.
How fast will it arrive?
The GF-01 ships from our USA warehouse — most orders arrive within 3–5 days. All U.S. orders are tax-free, and you'll receive a tracking number by email as soon as it ships.
What if a part is damaged or missing?
Contact service@stirlingkit.com with your order number and a photo — our after-sales team will arrange replacement parts. See our Replacement Parts Center for details.

Still Reading? You Already Know.

The only difference between men and boys is the price of their toys.

Add to Cart ↑
  • Ships from USA · 3-5 days fast delivery
  • US orders tax-free
  • 30-day returns
  • Replacement parts support

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Brad Scott
Works great

This steam engine ,boiler and work station is just fantastic . This the perfect place to order everything you need. If you by chance get shorted on parts they will take care of it quickly. Have fun with your steam!

Brad Scott review photo

Reviews in Other Languages

A
Aldo
eccezionale modello di officina retrò.

L'assemblaggio del kit semplice e divertente, ha evidenziato la precisione straordinaria dei componenti, in particolare il trapano è quanto di meglio si può realizzare in miniatura.
Il risultato finale è un bell'esempio di ingegneria e di buon gusto.
