If you’ve ever had your SEMTO 2-Cylinder engine start for a few seconds and then suddenly stop firing, don’t worry — you’re not alone. Many people run into the same thing, especially when converting from nitro to gas. Let’s break it down together and make sure your engine fires every time.

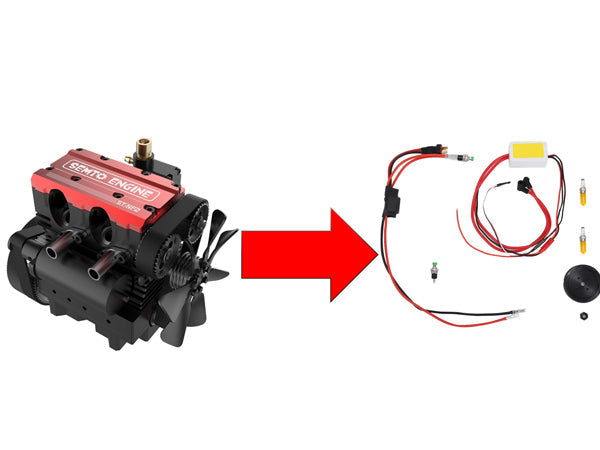

1. How Your CDI Ignition Actually Works

Think of the CDI (Capacitor Discharge Ignition) as your engine’s “spark brain.” Here’s the scoop:

• Red 1 (Live Wire): Sends the spark pulse — don’t remove the resistor here, it protects your Hall Sensor.
• Red 2 (Negative/Ground Wire): Handles both the negative connection and the spark plug return path — this is why you don’t see the old black ground wire anymore.
• Hall Sensor: Senses the flywheel’s position and tells the CDI when to fire.
• Flywheel with Magnet: Works with the Hall Sensor to trigger your spark.
• Spark Plug: Where the magic happens — the high-voltage pulse jumps across the gap.

Tip: With the new design, everything is simpler — fewer wires, higher spark efficiency, and more stable operation.

Why two red wires?

They act together as live and ground, replacing the old black ground wire.

• Simplifies wiring — fewer wires, cleaner setup.
• Improves spark efficiency and ignition stability.
• Hall Sensor: Senses the flywheel’s position and tells the CDI when to fire.
• Flywheel with Magnet: Works with the Hall Sensor to trigger your spark.
• Spark Plug: Where the magic happens — the high-voltage pulse jumps across the gap.

🔹 Key Tip: The resistor must stay installed. Removing it can fry your Hall Sensor. If your engine stops firing, it’s usually a resistor or wiring issue — not a missing ground wire.

2. Old vs. New CDI — What’s the Difference?

Old Version

New Version

So if you’re wondering why there’s no black ground wire, it’s on purpose — the new design just does it smarter.

3. Common Mistakes That Cause Your Engine to Stop

1. Removing the resistor — This is a biggie. Your Hall Sensor will get fried, and your engine will quit firing.
2. Misplacing the Hall Sensor — Keep it about 10mm below the flywheel. Too close or too far? Sparks can jump in the wrong place.
3. Thinking Red 2 isn’t a ground — It IS. No need for a black wire anymore.
4. Ignoring the Gas Conversion kit instructions — Fuel lines and sensors must be connected exactly as shown.

Most of the “CDI failure” cases we hear about are actually from wiring or installation mistakes, not a broken engine.

4. Gas Conversion Tips

If you’re switching from nitro to gas:

• Only attempt if you understand nitro engine basics.
• Keep all CDI connections correct — Red 1 resistor in place, Red 2 as ground/return.
• Carefully route fuel lines — don’t touch hot parts or wires.
• Test ignition before running at full throttle — better safe than sorry.

5. Visual Test: CDI Box & Spark Plug

Q: Why does the CDI box light up when the spark plug fires?

• When the CDI light flashes during ignition:

1. The CDI capacitor is discharging correctly.
2. The Hall Sensor triggers at the right timing.
3. The dual-red-wire circuit works as intended, even without a black ground wire.
4. Provides a visual confirmation that the spark is occurring.

Tip: If the CDI light flashes but no spark occurs, check:

• Resistor installation on Red 1
• Red 2 connection as ground/return
• Hall Sensor placement (~10mm below flywheel)

This visual test is a quick way to verify ignition health before running the engine.

6. Step-by-Step Quick Checklist

✅ Red 1 with resistor installed
✅ Red 2 connected as ground/return
✅ Hall Sensor ~10mm below flywheel
✅ Spark Plug connected properly
✅ Starter and switch wired correctly
✅ Gas conversion kit lines installed per guide
✅ Test at low throttle first

Follow this checklist, and your engine should fire reliably every time.

7. Bottom Line

We know it’s frustrating when your engine stops unexpectedly. Most ignition problems are install mistakes or misunderstandings about the new CDI design — not faulty products.

Take your time, follow the wiring guide, respect the resistor, and your engine will run smooth whether you stick with nitro or switch to gas.

Happy building and safe running! ✨
