DIY Modified Four Gear Box Assembly Accessories for Methanol Engine RC Car Model
Features:
.Gearbox Parameters: size: 88 x 44 x 53mm; shaft diameter: input shaft diameter 5mm, output shaft diameter 5mm, can be used with inner hole 5mm pulley and inner hole 5mm universal joint; speed ratio: first gear 59/19, empty gear, second gear 55/23, third gear 52/26, neutral gear, reverse gear 52/19. This gearbox is also suitaoble for Toyan v8 TOYAN FS-V800WGPC
.The four-speed gearbox assembly is made of all-steel gears and a stainless steel frame. It has three forward gears and one reverse gear.
.Application Use: DIY teaching experiment demonstration, self-made model car, boat, etc., four-speed gearbox is suitable for different speed models, using this product can also exercise the ability of manual brain, more applications can be developed by yourself.
.Tips: The use of this product requires a certain hands-on ability, does not provide specific instructions and technical support, purchase according to their own needs; due to DIY mechanical processing, the appearance will inevitably have minor scratches and small defects, but it does not affect the use, mind Shoot carefully.
.For Age:14+
Specifications:
.Color: As Shown
.Material: Metal
.Product Weight: 350g
.Package Dimensions: 10 x 8 x 6cm
.Package Weight: 380g
.Packing: Bag
Package Content:
.1 x Four Gear Box Assembly
This is one of the best usable gearboxes I've ever seen it is so good I've ordered 4 and I am still planning on ordering 1 more for the V8 trike I'm building.
I upgraded the reverse idler to a 3mm shaft and 3x6 flagged bearings and it has been amazing.
This gearbox is strong with all steel gears and easy to setup works great.

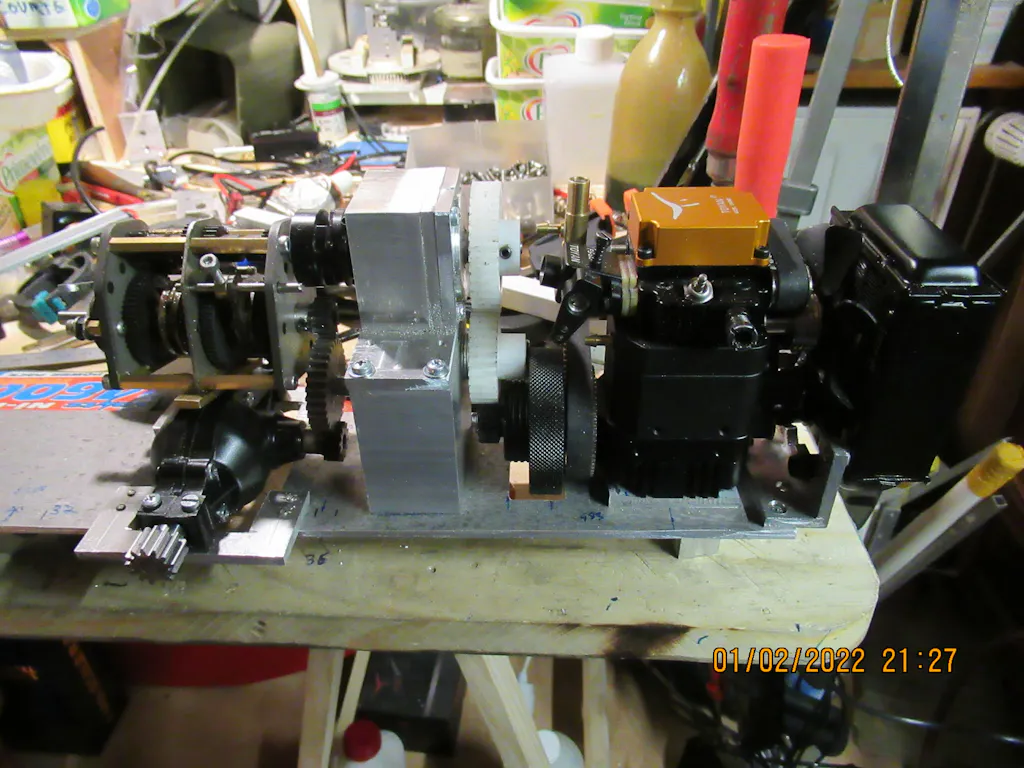

In my YouTube video this gearbox is installed into a 1/14 scale 6x6.
Finally a great heavy duty all steel gear 3 speed with a reverse! I am presently using them in my builds, its a do it yourself starter gearbox that will need additional gearing for different applications tailored by you for your particular build. check out my channel for ideas and how to installations.
J'aie achetées plusieurs de ces boites, 3 et 4 vitesses, et 4 en inversion pour différends modele, tres pratiques pour placer derrière un Toyan mono ou 2 cylindres 4 temps, c'est incontournable derrière un moteur thermique. Engrenages très solides en acier trempés cémentées, bons systèmes à crabots, mais dont certaines sont difficiles à enclancher à l'arret.
Il semblerait que ces enclanchements doivent etre faits en marches à petites vitesses ?
Je dis merci aux concepteurs et constructeurs de ces boites.
