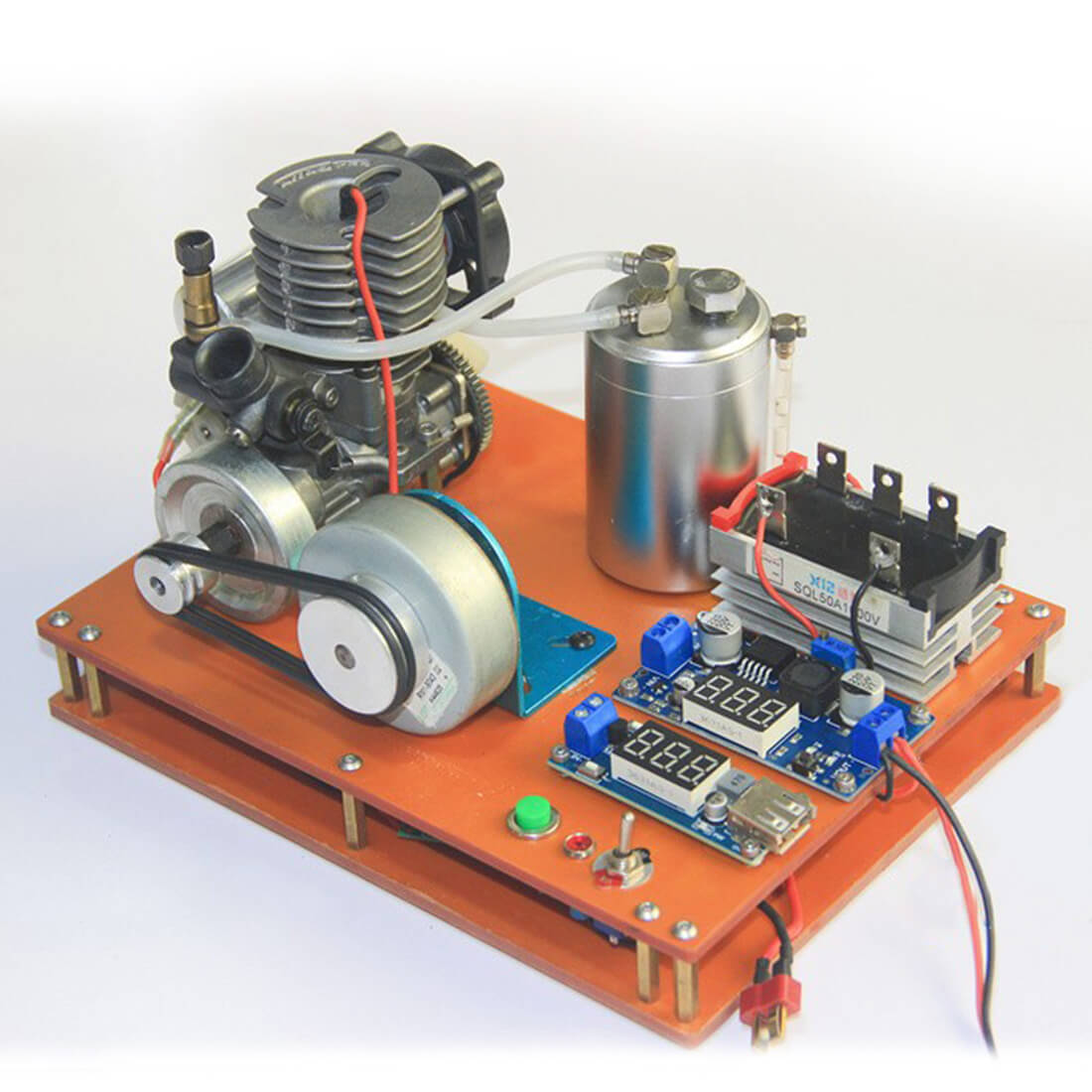

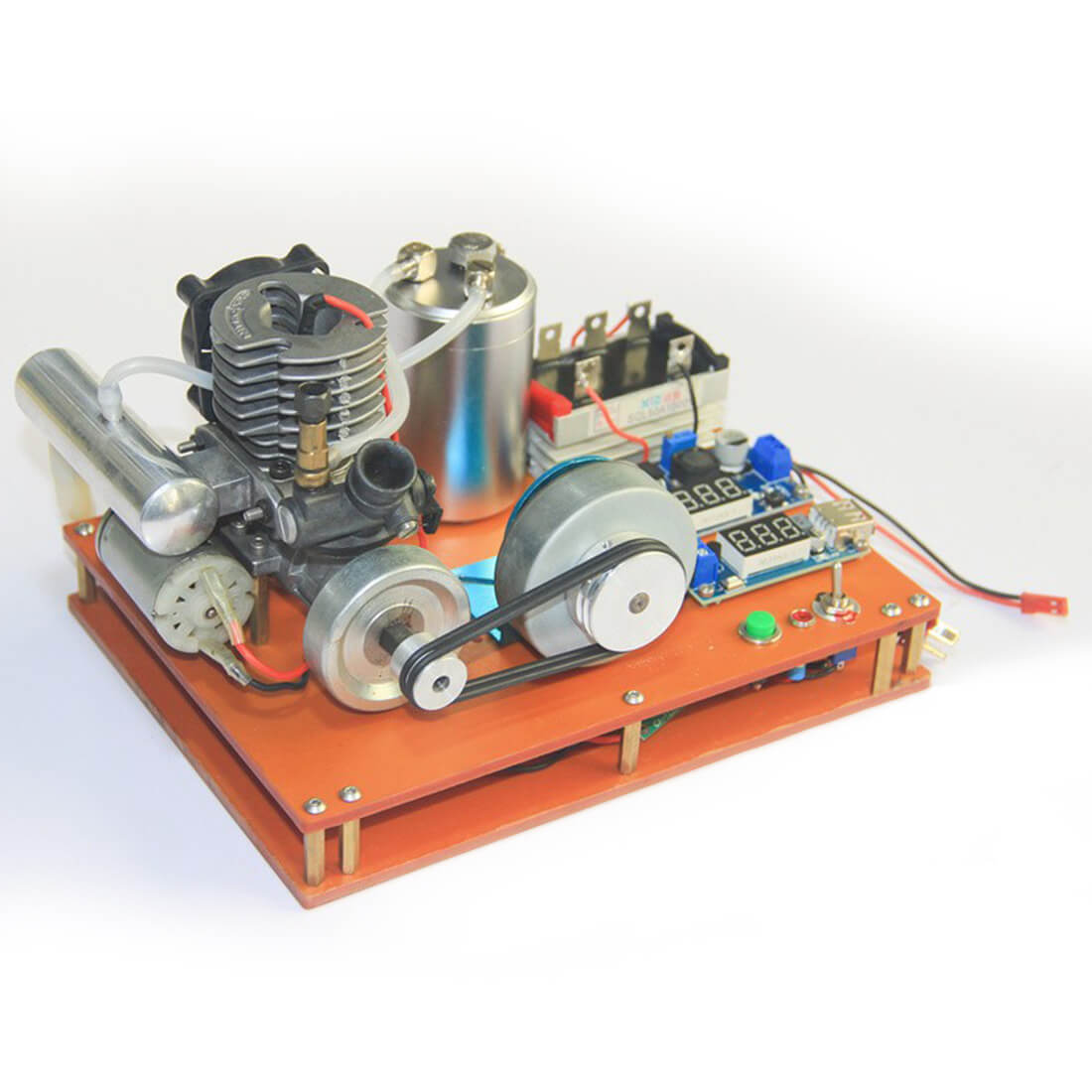

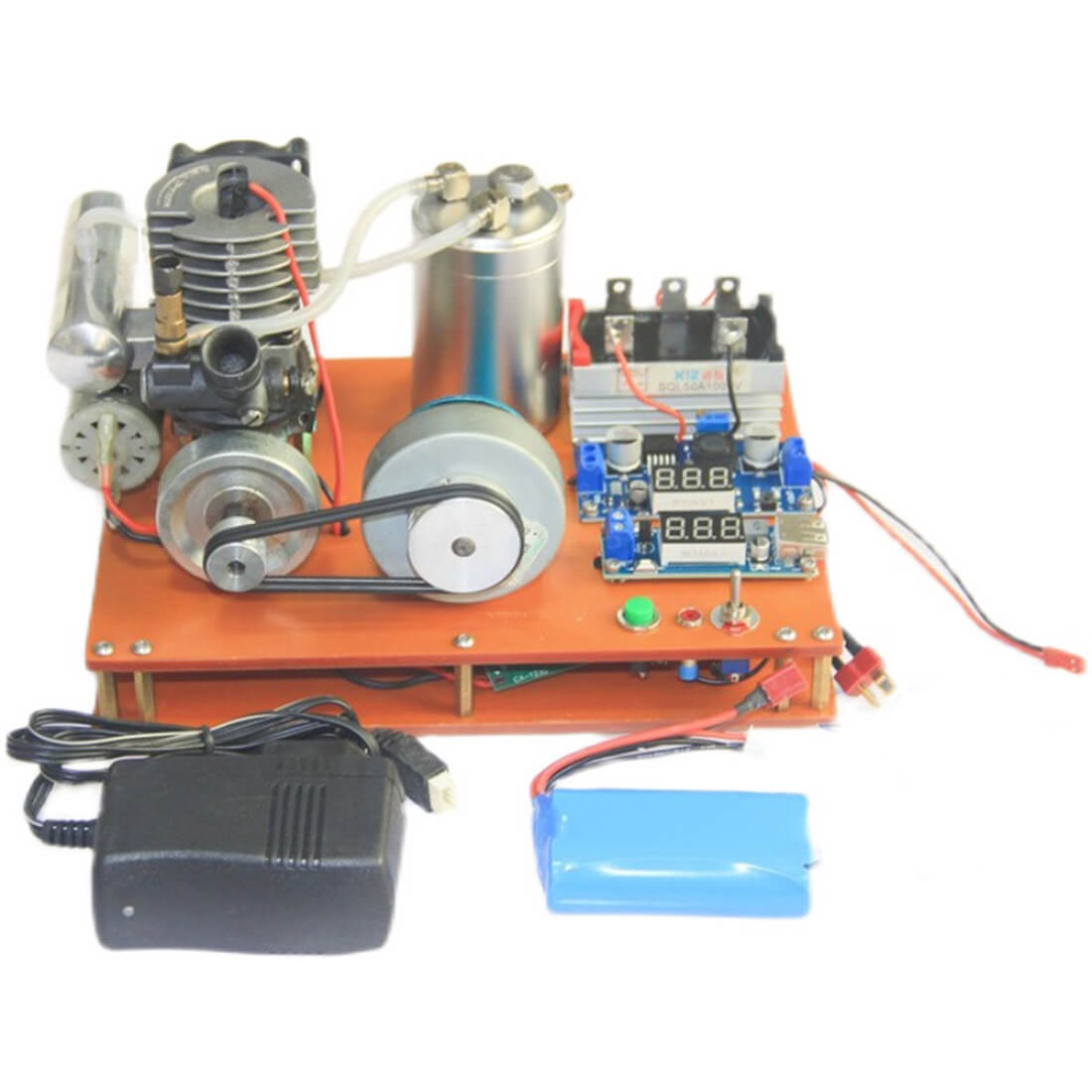

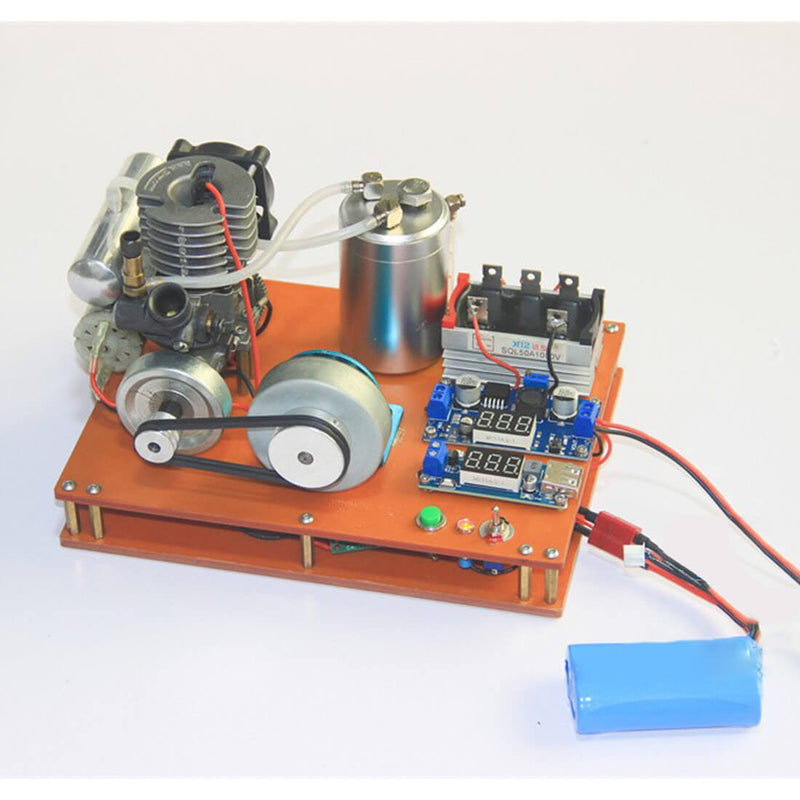

One-key-start Modified 15-level Methanol Generator Set DC 12V Output
Features:
.Function: Start the engine through methanol fuel to drive the electrical electricity Equipped with two output interfaces, USB interface and T interface, it can meet a small part of the electricity demand, such as lighting, mobile phone charging and so on. With a key electric start, we help you prepare the battery, you only need to prepare your own fuel; The fuel is a mixture of methanol (the common fuel for 2-stroke engines, the same as the fuel for commercially available model cars).
.Size: Engine cylinder block: cylinder diameter 1.55cm, stroke 1.25cm; Engine speed: 2500-17000/ min; Engine size: L 9.5 *W4.5 *H 8cm, brushless generator size: L10*D4.2cm, output shaft: L2.8*D0.5cm; Belt wheel: the inner hole is 5mm diameter, the outer diameter of large wheel is 3cm, the outer diameter of small wheel is 2.4cm; Fuel tank: 80 ml (use time about 20 minutes).
.Purpose: This DIY generator can be used for ordinary LED lighting power supply, mobile phone charging, experiment, teaching, power generation and so on. At the same time, it has the effect of developing intelligence, exercising mind and practical ability.
.Principle: This kit shows the whole process of converting mechanical energy into electric energy. The engine speed drives the generator to generate high voltage current, which drives the lamp, motor, charger and other equipment. The engine rotates through the belt to drive the generator to turn, and the internal coil of the generator cut to generate magnetic field lines, thus generating high voltage current. Current flows into light bulbs, motors, chargers. In this process, to complete the conversion of mechanical energy into electrical energy, load can be: light bulbs, motors, chargers and other equipment.
.Suitable for people over 14 years old to use, note: voltage description: voltage regulator output voltage of about 12V, the higher the speed, the greater the output voltage and current (must pay attention to safety when using).
Specifications:
.Material: Metal +Plastic+Wood
.Product Weight: 1600g
.Product Dimensions: 20x15x15cm
.Package Weight: 2000g
.Packing: Carton
.Ages: 14+
