Vertical Hit & Miss Gas Engine Stirling Engine Model Upgraded Version Water Cooling Cycle Engine Collection

Regular Price
$439.99
Sale Price
$439.99
Regular Price
Sold Out
Unit Price
Translation missing: en.general.accessibility.unit_price_separator

🎄XMAS Sale🎅. Extra 15% OFF CODE: SANTA15.Get Your Gift in Time.

- +

★ Free shipping worldwide/Return guarantee /Payment secure

2916104

Product details

Hit & Miss Gas Vertical Engine Stirling Engine Model Upgraded Version Water Cooling Cycle Engine Collection

Description:
Item Name: Hit & Miss Vertical STEM Engine Upgraded Model
Product Size: 180*125*220MM
Cylinder Diameter: 22MM.
Displacement: 6 CC
Ltinerary: 20MM.
Weight: 1610G
Total Weight of Packaging: 2200G
Revolutions Per minute:1200rmp
Ignition Power Supply: 3.7V, 3pcs AA Batteries(Not Included)
This is a vertical engine, we have upgraded, added a mechanical water pump, cooling water tank, it can carry out water cooling cycle.
There are exhaust pipes.Engine parameters.


Engine Startup Steps:
1.Open the bottom plate to check the wiring of the engine, connect the fuel tank pipe, and install the three No. 5 batteries to close the bottom plate.
2.Fill the fuel tank with gasoline (95#). When the filling is completed, make sure there is no air in the oil pipe.
3.On the right side of the engine, slowly turn clockwise to buy more than one turn, its role can make the mixed gasoline fully enter the cylinder.
4.Turn on the power switch and turn the flywheel clockwise to start the engine clockwise on the right side of the engine.

Features:
1.Flywheel inner pulley can realize functions such as power generation or pump pumping.
2.The outer pulley is easy to start by hand.

Precautions:
1.If the ignition device is normal and the cylinder is under normal compression, if the machine still does not start normally, it is very likely that the carburetor needle should be adjusted.
2.screw the screw on the top of the carburetor, then loosen 1/4 turn, start the flywheel, This can be done several times to make the mixing ratio of gasoline and air reach the normal working mix ratio.
3.Check if the water tank lacks water. If there is air in thecooling pipe, the pump can't work normally. Need to loosen the water pump outlet screw. Turn the engine to exhaust. When it is normal, the water is pumped out. Screw the screw.
4.When the machine stops, the power switch should be turned
5.Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
6.Please allow little differs due to manual measurement.
7.Kids should be accompanied by adult.

Note:
1. Lubrication Method: add no more than 4ML Lubricating oil into the crankcase to ensure splash lubrication of the crankshaft.

2. Fuel Dosage: The fuel tank capacity is about 15ML. The engine can use gasoline and aviation kerosene. The engine needs to add 4% lubricating oil to the fuel.

More engine review, please click here.
Package Included:
1 x Hit & Miss Vertical STEM Engine Upgraded Model
1 x Engine Spare Parts Hand Start Device

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
H
Harold

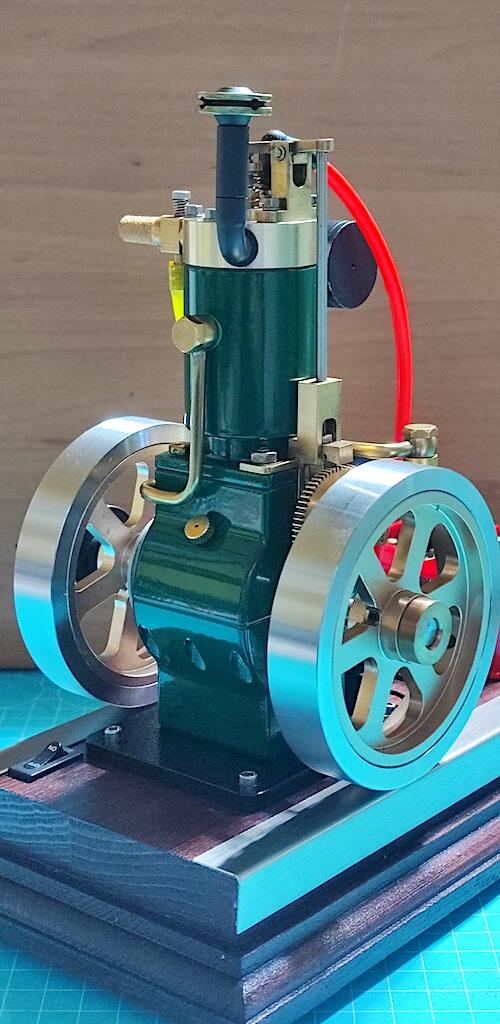

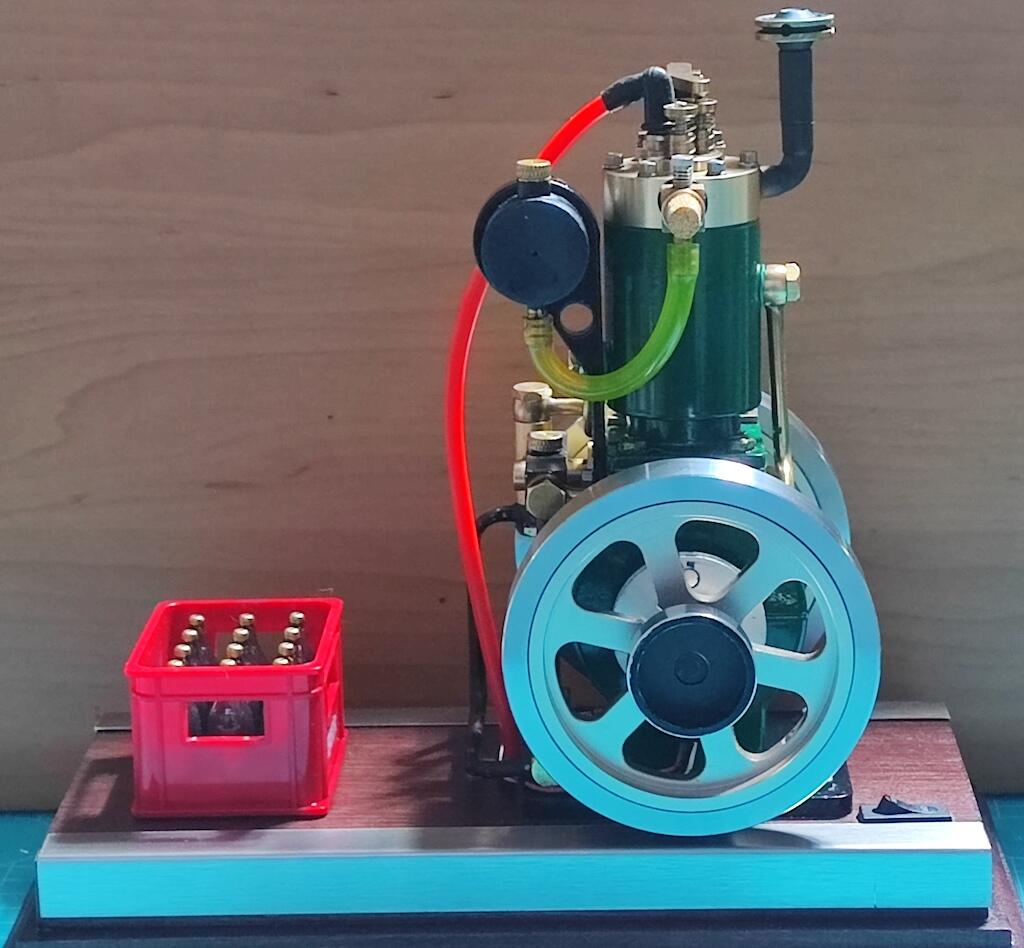

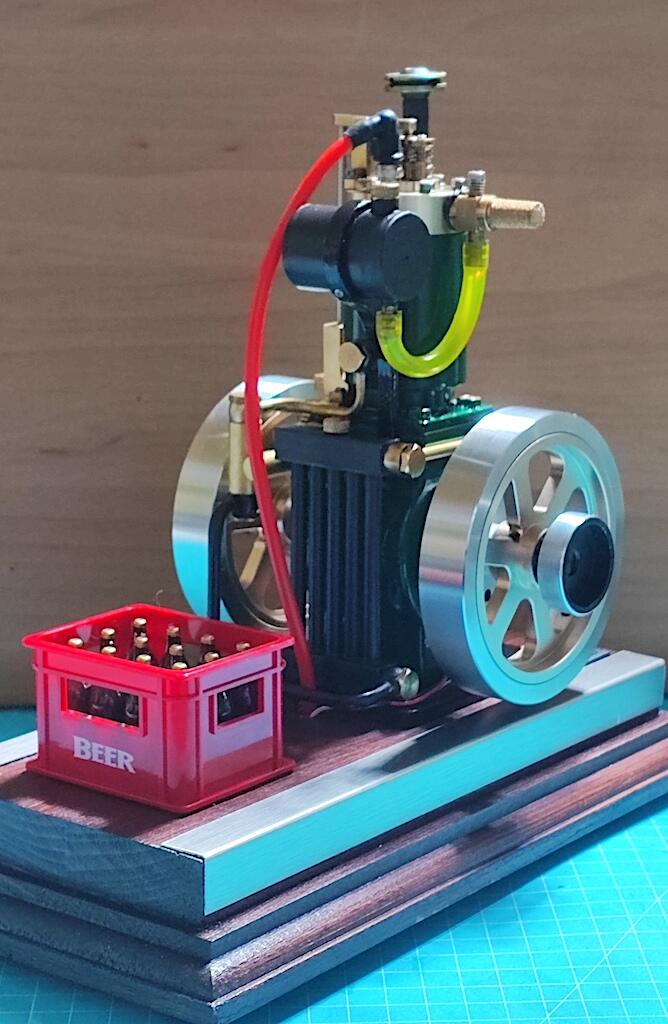

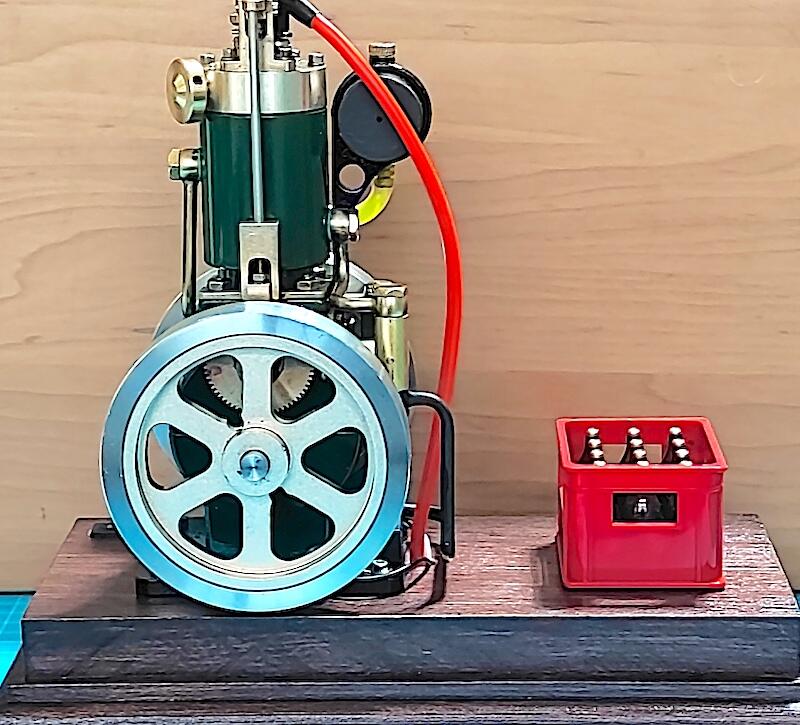

Hit & Miss Engine rebuilt

Hit & Miss Engine,
The control system has been partially removed and the machine in the
Control times changed, some paint and imagination.

R
Rainer Schultz
xcellent quality in workmanship

High-quality machined parts and looks amazing. Easy to start and neat to watch how it operates.

S
Susanne Kiler
Very nice model

Arrived in perfect condition faster than expected. Thank you very much.

E
Evert Weinhold
Beautiful engine

Beautiful engine. Ran okay for an hour or so (not a continuous hour) then stopped due lack of spark. Checked batteries, wiring, all okay. It appears the high voltage module has failed. I notice it is a different module to the one fitted to the horizontal engine, which I also have, and which continues to operate flawlessly. Here is an image of the engine mounted on an aluminium box base I made for it. I hope the high-voltage module is covered by the guarantee.

H
Henry Bangsberg
Fun little engine

I had a good time playing with this little engine. I also bought the horizontal one at the same time. I am using 95 octane gasoline for fuel and made some YouTube videos using and reviewing these engines. https://www.youtube.com/playlist?list=PLfhGylRyTvD4Yc-xfoSi2m5_sE5qM0uNh
