The Rider-Ericsson engine is a unique hot air engine that was invented in the mid-19th century by Swedish engineers John Ericsson and John Braithwaite. One of the co-inventors of the Rider-Ericsson engine was Alexander K. Rider and together with John Ericsson, they established the engine's design and commercialization. John Rider was a British engineer and entrepreneur who worked with Ericsson to improve the hot air engine design, which later became known as the Rider-Ericsson engine. The two established a partnership in the mid-1800s and built factories in both England and the United States, manufacturing engines for various industrial applications.

Johan Ericsson, July 31, 1803 (photo from wikipedia)

The Rider hot air engine is an important invention in the history of engineering and technology. It is one of the earliest examples of a hot air engine that utilizes heat to generate mechanical energy. What sets it apart is that it is a closed-cycle engine, which means that the working fluid (typically air) continuously circulates inside the engine. The engine operates by heating the air in the chamber, causing it to expand and push the piston. The expanded air is then cooled and compressed, causing it to contract and pull the piston back to its starting position. This back-and-forth motion of the piston can be used to perform mechanical work.

how does Rider-Ericsson engine work?

The Rider-Ericsson engine is a hot air engine that operates on the Stirling cycle, which is a closed-cycle thermodynamic system. The engine works by cyclically heating and cooling a working gas, typically air, to produce mechanical work.

The Rider-Ericsson engine consists of two main parts: the hot end and the cold end. The hot end contains a heat source, typically a burner, which heats the air inside a cylinder. The heated air then expands and pushes a piston outward, which turns a crankshaft and produces work. The hot air is then expelled from the cylinder.

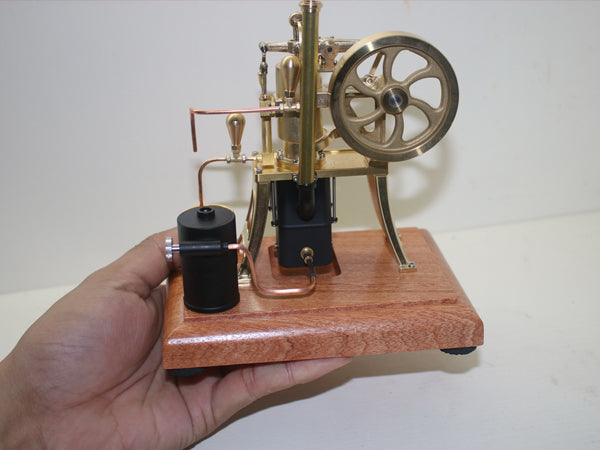

photo from website http://www.finemodels.co.uk/

The cold end of the engine contains a heat sink, typically a water-cooled jacket, which cools the air as it re-enters the engine. The cooled air contracts, creating a vacuum that pulls the piston back into the cylinder. This completes one cycle of the engine.

The Rider-Ericsson engine is unique in that it uses a regenerator to transfer heat between the hot and cold ends. The regenerator is a porous material, typically made of wire mesh, that is placed in the air path between the hot and cold ends. As the air flows through the regenerator, it transfers heat from the hot end to the cold end, which improves the engine's efficiency.

One of the main advantages of the Rider-Ericsson engine is its ability to efficiently convert heat into mechanical energy. Unlike steam engines, which lose a significant amount of energy in the form of heat during the condensation process, the Rider-Ericsson engine is able to repeatedly use the same working fluid, making it more efficient and environmentally friendly. This made the engine well-suited for a wide range of industrial applications, and it was widely used in the late 19th and early 20th centuries for tasks such as pumping water, driving generators, and powering machine tools.

The Rider-Ericsson engine was also an important technological innovation of its time, paving the way for the development of other hot engines like the Stirling engine and the internal combustion engine.

Compared to steam engines of the time, the Rider-Ericsson engine had significant advantages in terms of energy efficiency and environmental friendliness, making it an important technological innovation of its time.

Firstly, the Rider-Ericsson engine had high thermal efficiency. It utilized heat energy provided by combustion or other means to heat gas, causing it to expand and push the piston, and then cooled the gas to make it contract and bring the piston back to its starting position. In this thermodynamic cycle, the gas is continuously reused, avoiding the energy loss associated with steam engines during the condensation process.

Secondly, the Rider-Ericsson engine was environmentally friendly. Unlike steam engines, it did not require water to generate steam, thereby avoiding emissions of pollutants or consumption of significant water resources.

Lastly, the Rider-Ericsson engine had a wide range of applications. It was widely used for industrial applications at the time, such as pumping water, driving generators, and machine tools. In addition, it laid the foundation for the development of other hot-air engines that came later, such as the Stirling engine and internal combustion engines.

In conclusion, the Rider-Ericsson engine was an important technological innovation in the mid-19th century that had a significant impact on the industrial and scientific development of the time. Today, it is primarily used as a demonstration of thermodynamics and heat transfer principles and remains an important part of engineering and technology history.
