Are you tired of your engine firing up only to immediately force your connected water pumps or retro generators into a wild frenzy, leaving you no way to let it idle smoothly on its own without dragging your entire setup along?
That is exactly what the P51 Friction Clutch Pulley is designed to solve. As the world's first production-line friction clutch tailored for the RETROL HM-01 7cc hit and miss engine, it gives you total command of your machine's power delivery.
Below, we will walk through why this dedicated upgrade is essential for your hit and miss setup, look at how the mechanics work, review important installation tips, and show you how to get set up in minutes.
Step-by-Step Installation Guide
We know you’d rather spend your time tinkering than fighting with complex tools. Here is how to mount your dedicated 40mm P51 pulley quickly and securely:
-
Step 1: Preparation & Safety
Ensure your RETROL HM-01 7cc hit and miss engine is completely turned off, cooled down, and securely mounted on its wooden base. Clear your workspace around the flywheel and power takeoff area. -
Step 2: Remove the Original Setup
Carefully remove the original screws and standard pulley currently seated on the drive location, keeping the factory hardware safe. (Note: The existing factory screws can be tightly secured, so use a sturdy tool like a quality German hex-key set to crack them open safely). -
Step 3: Align the Dedicated 40mm P51 Pulley
Take your dedicated HM-01 version P51 clutch pulley. Align the mounting holes precisely with the designated points on your engine’s split wide-face flywheel. (Note: Ensure the clutch is in the unlocked/released state during this phase for easy positioning, and take care not to lose the tiny spare clips included in the package). -
Step 4: Secure and Fine-Tune
Insert the securing screws and tighten them moderately, leaving just enough play to make minor adjustments. Wrap your power transmission belt around the pulley and fine-tune its position until the belt runs perfectly straight. -
Step 5: Lock Down and Test
Once alignment is locked in, fully tighten the mounting screws. Manually spin the flywheel while disengaged to verify the engine idles freely without driving the belt, then engage the clutch to test smooth transmission.
Important Notes & Tips for a Smooth Setup
- Not a Universal Part: This is specifically engineered for the RETROL HM-01 7cc hit and miss engine. Do not attempt to use standard OKMO-compatible 37mm versions, as they will lead to size conflicts and belt misalignment.
- Handle Tiny Hardware with Care: The kit includes small spare clips and precise screws. Keep a clean, organized workspace during assembly so nothing gets lost.
- Pre-Start Lubrication & Maintenance: Before firing up your engine, ensure proper lubrication on the big end and crankshaft, but avoid getting excess oil near the ignition switch or intake valve. A quick wipe with brake cleaner can help clear any old, gummed-up oil if the engine has been sitting for a while.
- Fuel Tank Level Consideration: While filling the tank about 3/4 full is ideal, remember that a completely full tank will run for hours due to the engine's size, so adjust your fuel volume based on how long you plan to test.

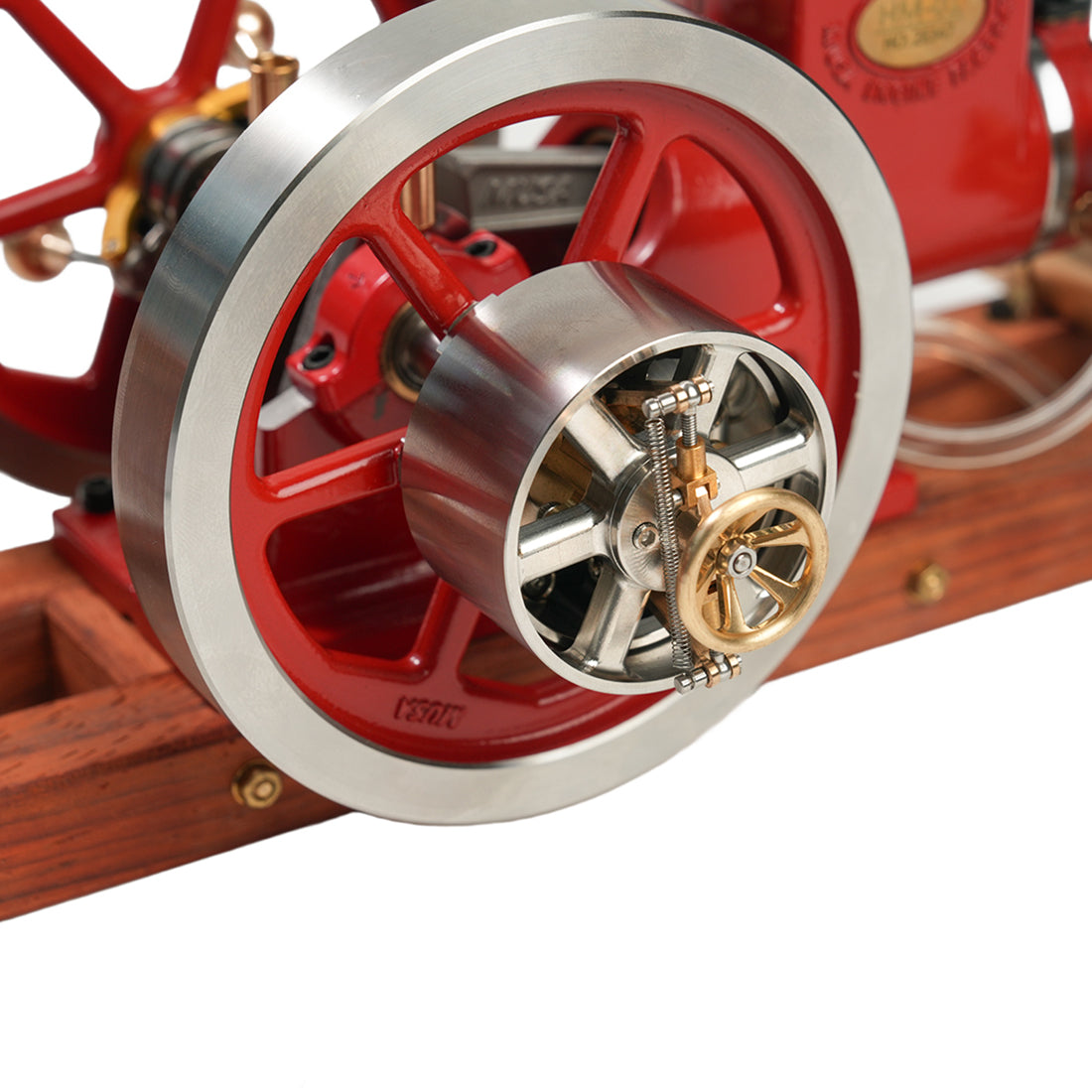

The precision-machined 40mm P51 friction clutch pulley, built exclusively for the HM-01 split wide-face flywheel.
The Secret Behind the Power: How the P51 Clutch Works
Understanding the mechanics makes operating your hit and miss engine upgrade even more satisfying:
- Dedicated for HM-01 Only (40mm Geometry): Purpose-built exclusively for the RETROL HM-01 7cc hit and miss engine rather than being a universal part. It features a chunkier, custom 40mm sizing tailored to match the unique split wide-face flywheel design, preventing the belt slippage common with generic parts.
- Load-Free Starting: Disengaging the clutch before pull-starting eliminates belt load resistance entirely, making cold starts effortless, strain-free, and safe.
- Authentic Neutral-to-Drive Operation: Simulates real-world clutch engagement with smooth transitions between disengaged (neutral/idle) and engaged (drive) modes, letting your four-stroke internal combustion engine start, warm up, and run auxiliary gear on demand.
- Precision All-Metal Construction: Machined from high-grade alloy to original factory tolerances, ensuring reliable power transfer and dependable performance during continuous running sessions.
The crown jewel of stationary model engines: The RETROL HM-01 7cc 4-stroke horizontal internal combustion engine.
Take Total Control of Your HM-01 Today
Don't let universal, ill-fitting parts or uncontrolled power output ruin your workshop sessions. Build your dream workshop setup or upgrade your existing machine with the ultimate gear combination.
*(Note: For collectors eyeing other setups, subsequent batches of related models like the Lister D will also come equipped with optimized gear integration for seamless expansions!)*
