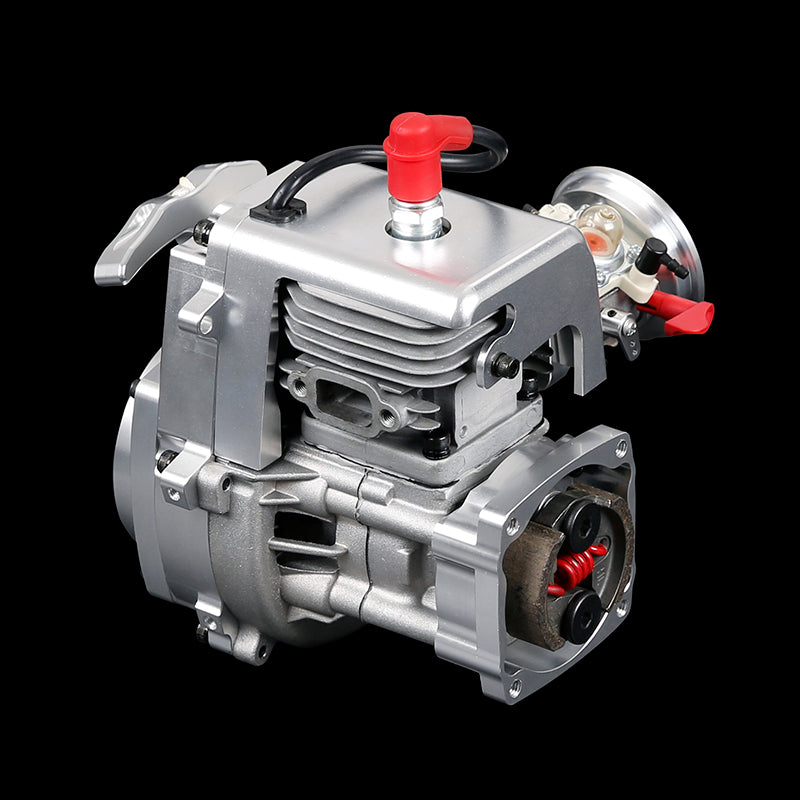

36cc Single-cylinder Two-stroke Double-ring Four-point Fixed Gasoline Engine Model for ROFUN BAHA 1/5 RC Model Car
Features:

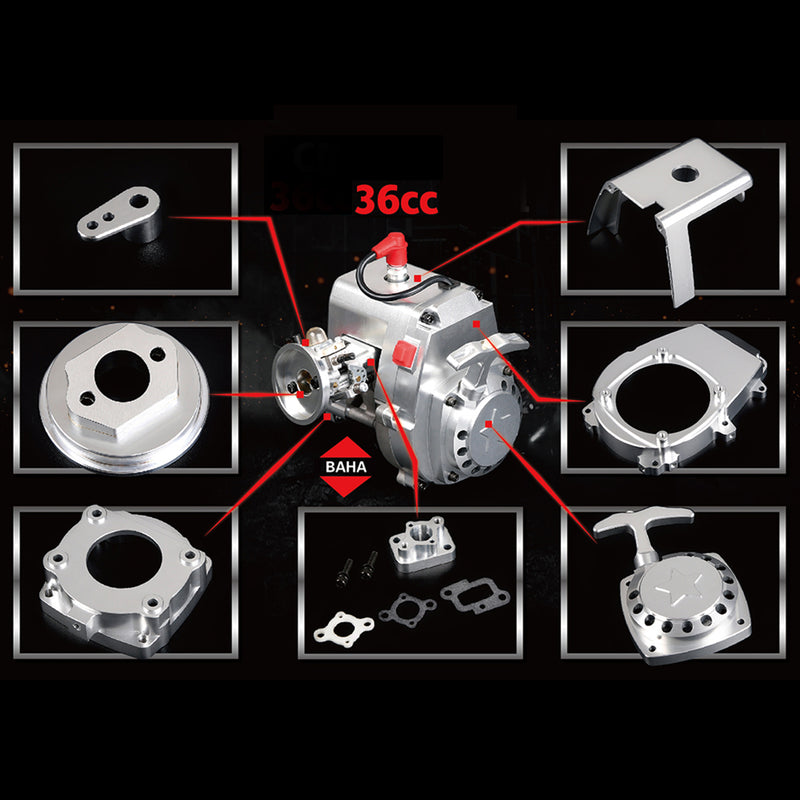

.Upgraded to the CNC version, the engine in a new class with larger displacement and stronger power is combined with CNC full-metal hand pull, engine fairing, engine side cover, along with metal elevation air filter base for cooler appearance, higher air tightness and more stable performance.
.Weighing 2.3kg, the engine adopts Walbro 1107 carburetor and NGK spark plug for reliable quality, superb horsepower and more stable performance. Fuel: two-stroke engine oil FB 1:25 gasoline blend or two-stroke engine oil FD 1:40 gasoline blend.
.Working Principle: When the piston reciprocates in the cylinder, the process of moving from one end of the cylinder to the other end is called a stroke. A two-stroke engine is an engine that completes one working cycle in two strokes.
.Ideal for 14+. The product is suitable for installation on 1/5 cars, ships, airplane models and other equipment, also available as a class presentation or teaching aid.
.Notes: Please carefully use the engine model. During operation, do not touch the fan and the cylinder of the engine with your hands to avoid scratching and burning.
Specifications:
.Material: ABS + Metal
.Brand: FS Racing
.Item No: 810312
.Cylinder Bore: 39mm
.Stroke: 30mm
.Displacement: 35.8cc
.Maximum Speed Without Load: 19500rpm
.Maximum Power: 2.58/13000 KW/rpm
.Maximum Horsepower: 3.51/13000 PS/rpm
.Maximum Torque: 2.26/9000 N·m/rpm
.Clutch Contact Speed: 8000rpm
.Idle Speed: 4500 ± 200rpm
.Start Mode: Upgraded easy-to-start hand puller for easier hand pull
.Intake Method: Scavenging
.Cooling Method: Forced air cooling
.Lubrication Method: Mixed
.Product Weight: 2300g
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 2600g
.Packing: Box
