CISON LS-52 Mini V8 Engine Model Kit – 1/5 Scale 52cc Water-Cooled 4-Stroke Gasoline Engine DIY Kit



CISON LS-52 1/5 Scale V8 Engine Kit

A Legendary V8 You Can Hold in Your Hands.
Build your own LS-inspired V8. Hear it roar at 12,500rpm — pushrod doesn’t mean slow.

💰 Early Bird Price (Mar 13–20): $1,999 — Save $500!
📅 Regular Pre-Order Price (Mar 21–Apr 20): $2,199 — Save $300
💸 Standard Price After Launch: $2,249.99

⚠️ Only 50 kits available in the first batch!
Be one of the first VIPs to get a CISON V8. Once sold out, next production takes 3–4 months.

Packaging & Accessories

  • Included: Components for full engine assembly, assembly manual.

  • Not Included: MCU ignition accessories, starter kit, spark plugs (8 × 1/4-32) — available to buy next week.

Production & Shipping

  • 50% of production completed. After assembly, engines undergo a 2-week test period before shipping.
  • Estimated delivery: Mid-April 2026 🚚
  • Updates will be posted promptly on Stirlingkit for any production progress.

Learn More

💡 Warm Tips

  • Pre-sale now open — secure your kit and be among the first to assemble it!
  • Limited stock — first batch only 50 units. Don’t wait!
  • Quality takes time — every detail is perfected before shipping. Thank you for your patience ❤️

If you’ve ever admired the legendary LS small-block V8s from the late ’90s to early ’10s, you know exactly what makes them special. Now imagine holding one of those engines in your hands, building it piece by piece, and making it run yourself. That’s the CISON LS-52 — a 1/5 scale, fully functional V8 kit that captures the spirit, engineering, and iconic design of those classic American V8s.

Build It Yourself — Every Piece, Every Detail

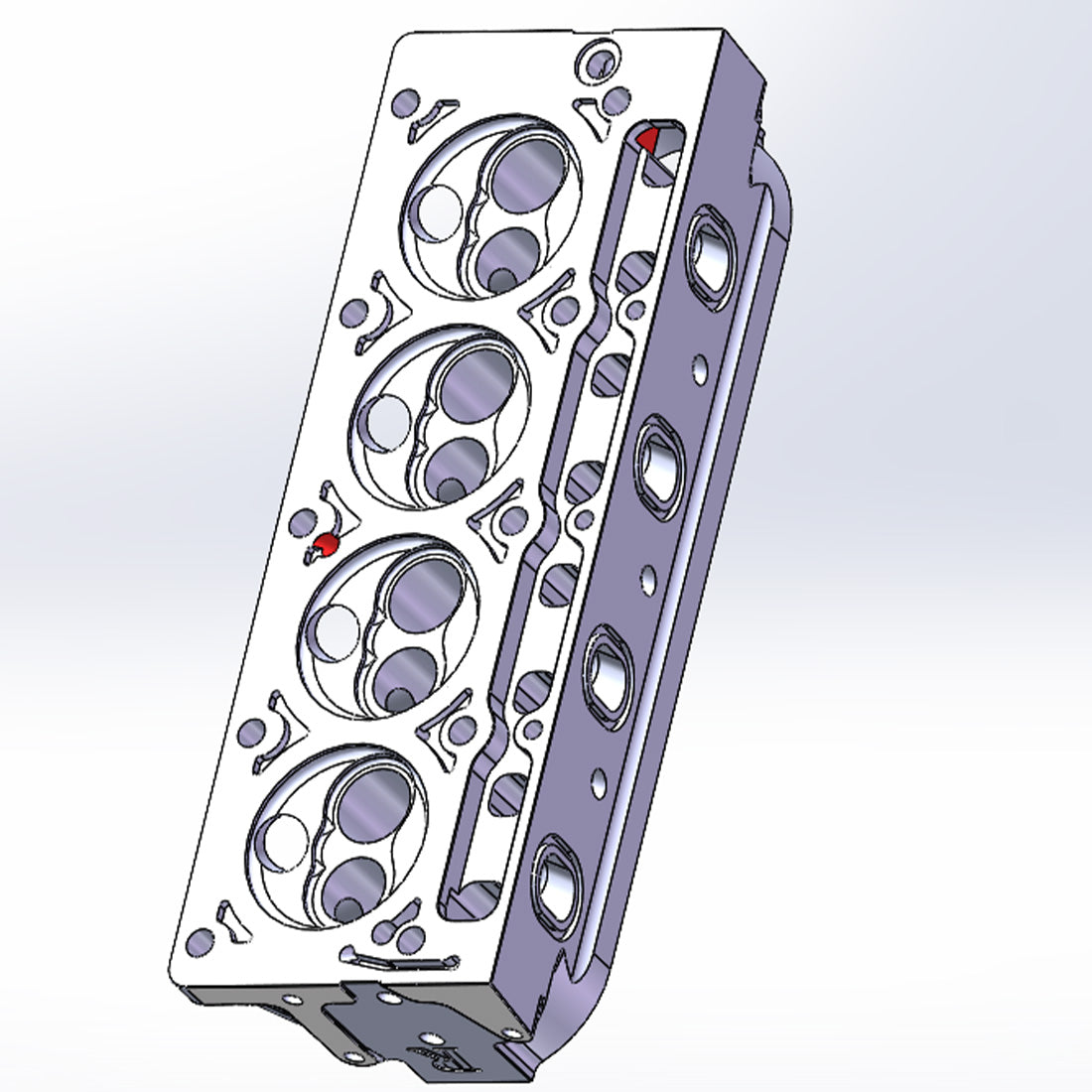

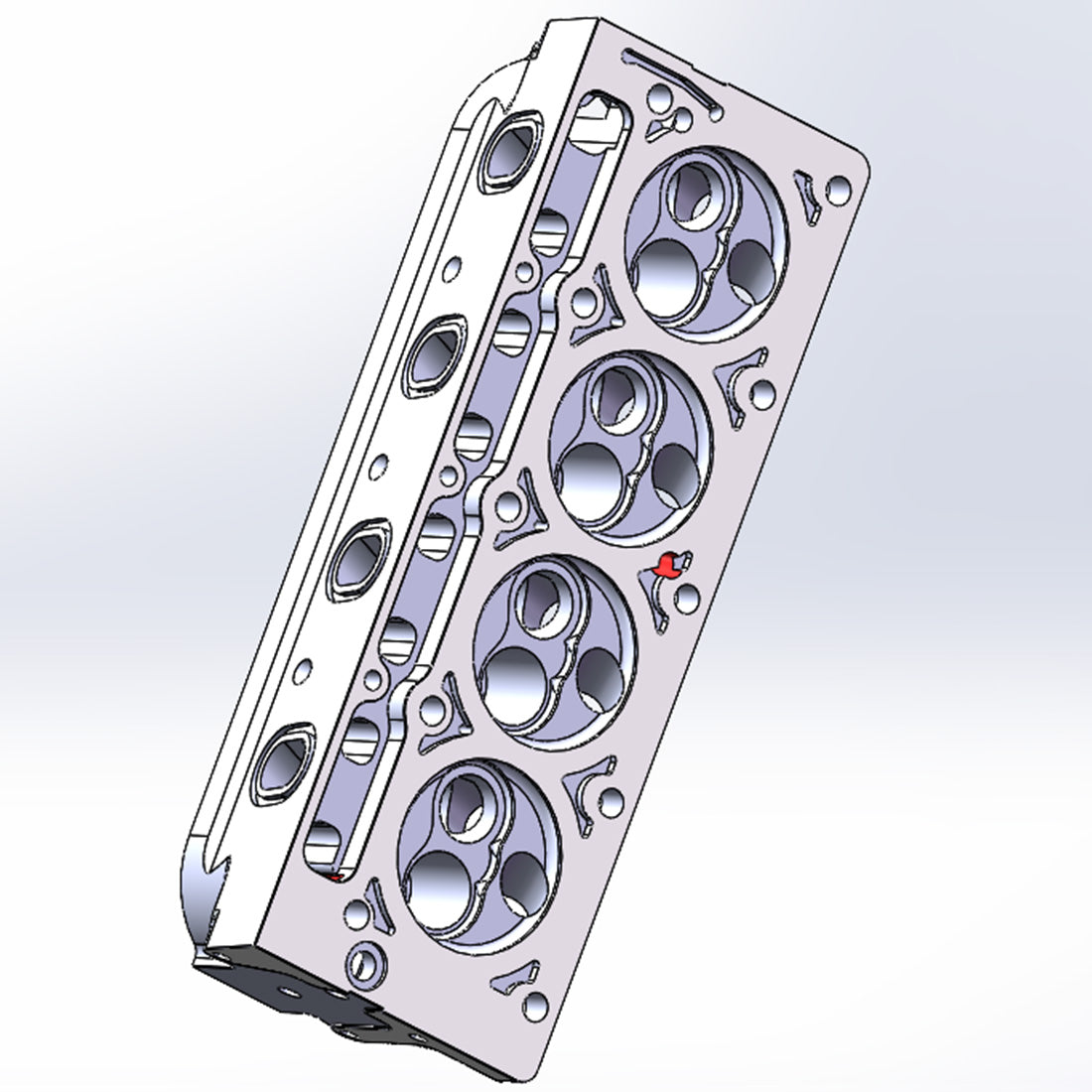

The LS-52 isn’t a display model. It’s a complete 1/5 scale V8 kit. Crankshaft, pistons, connecting rods, valve train, water-cooled heads — every component comes in pieces for you to assemble. Following the included manual, you’ll not only construct a miniature V8, you’ll learn exactly how one works. And when it fires up for the first time? That’s the sound of your engine running, because you brought it to life.

Authentic LS-Inspired Design

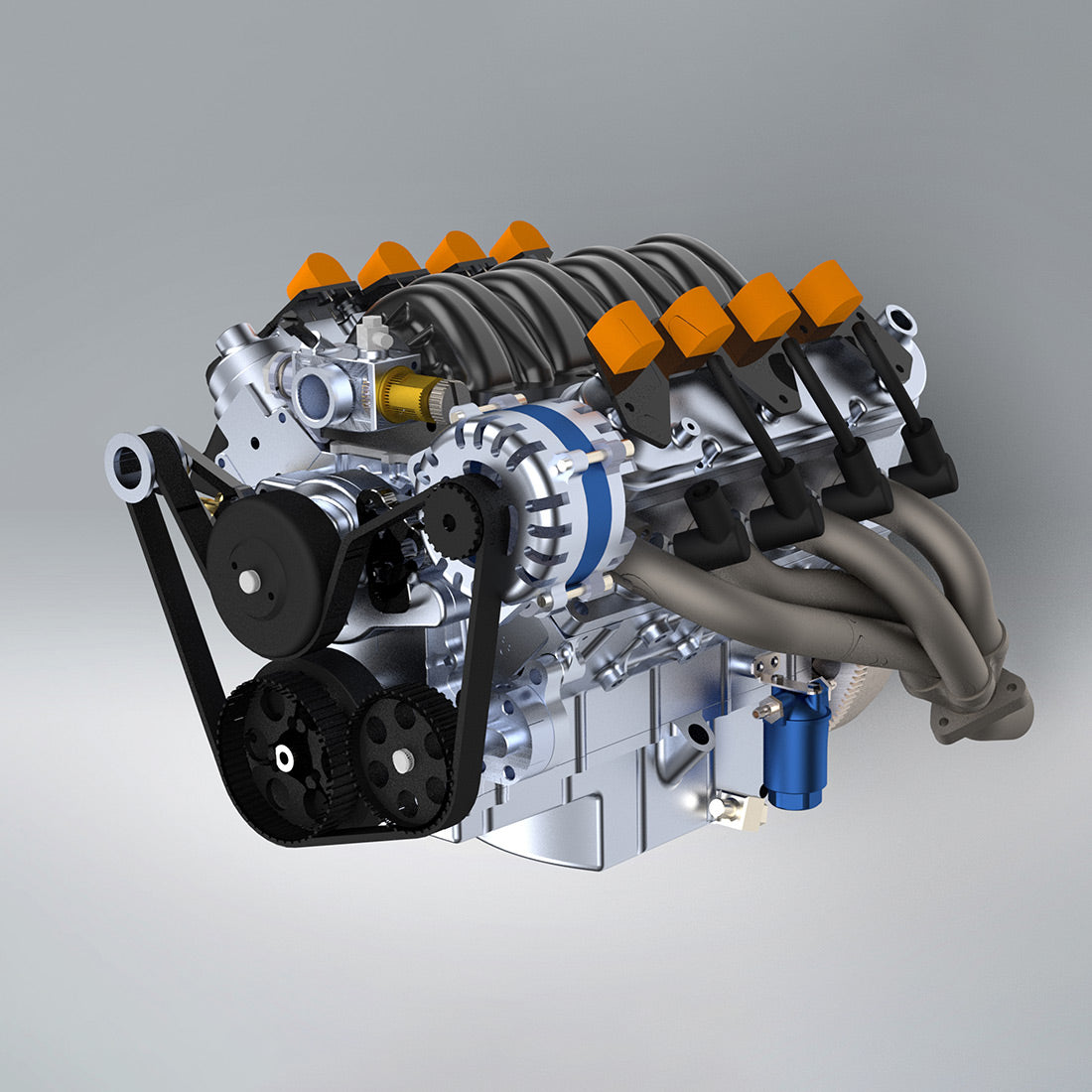

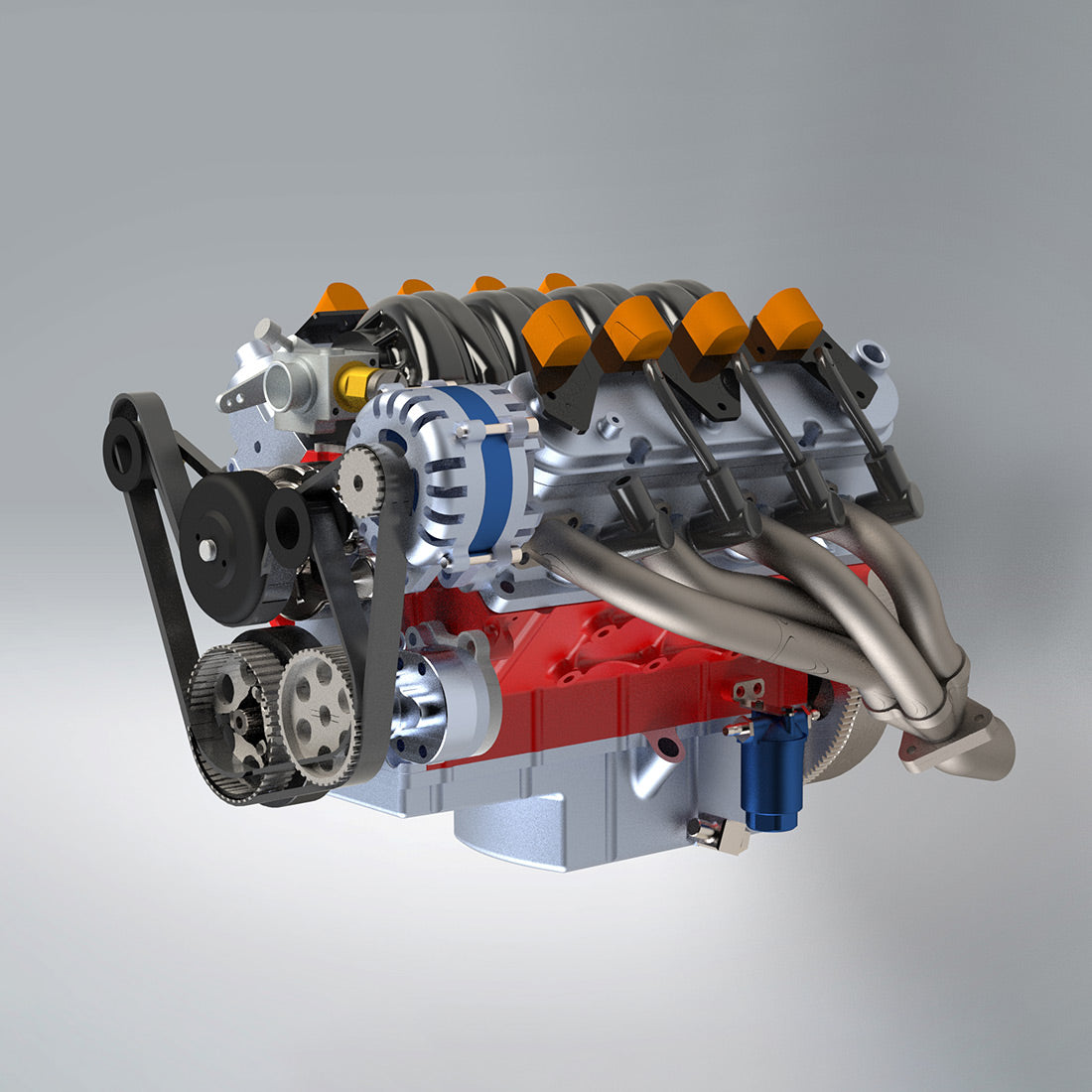

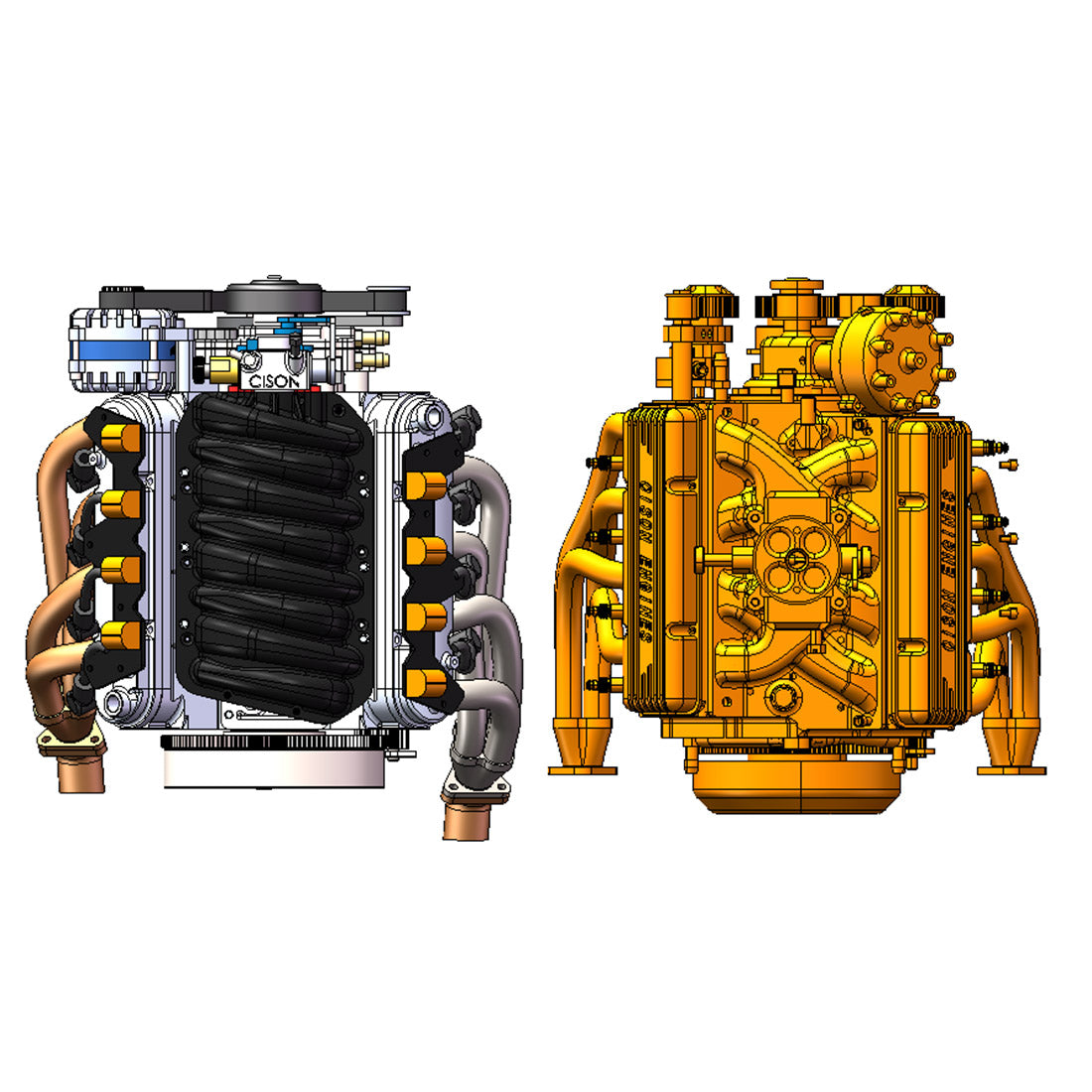

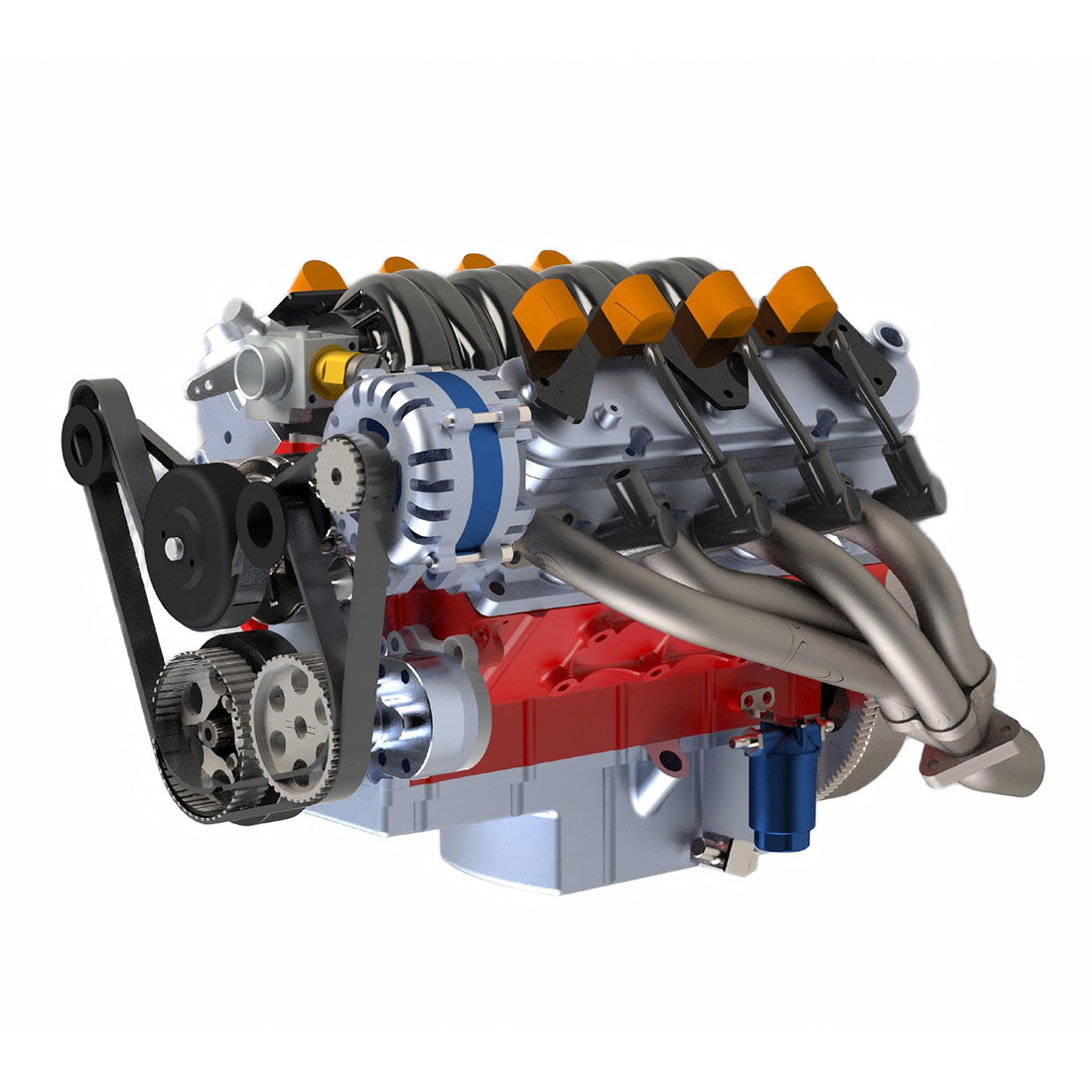

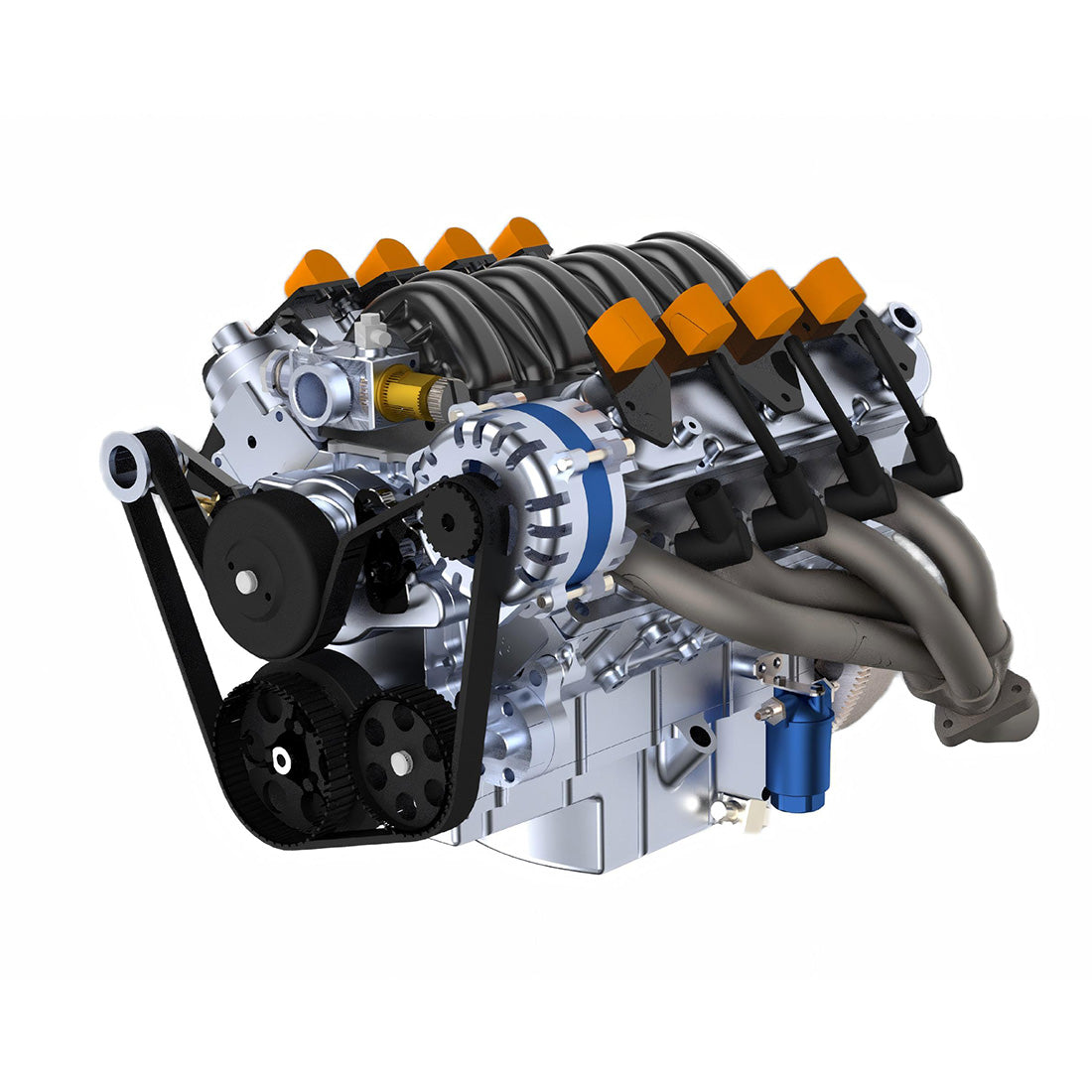

From the top-mounted black intake manifold to the red cylinder block and stainless steel headers, the LS-52 mirrors the architecture of the real LS small-block V8. Every proportion, every curve, every functional detail was carefully reproduced. Anyone familiar with LS engines will recognize it instantly — without us needing to name the car it came from.

Pushrod Doesn’t Mean Slow
The classic pushrod OHV valvetrain spins up to 12,500rpm with pressure-fed lubrication and MCU digital ignition. High revs, smooth operation, and real performance — proving that a pushrod design can be fast and reliable.

MCU Digital Ignition — First Time in a CISON Engine
The LS-52 is the first CISON V8 engine to feature MCU digital ignition. Unlike traditional mechanical distributors, which follow a fixed curve and can lag at high RPMs, the microcontroller constantly monitors the engine and fires each cylinder at the exact optimal moment — thousands of times per minute. Most model engines, and even previous CISON V8s, stick to distributors because adding sensors, electronics, and tuning a tiny high-rev engine is complex and costly. By using MCU ignition, the LS-52 delivers smoother, more stable high-speed performance, cleaner combustion, and the kind of responsiveness you wouldn’t expect from a pushrod engine — proving that pushrod doesn’t mean slow.

Next-Level Mechanical Details

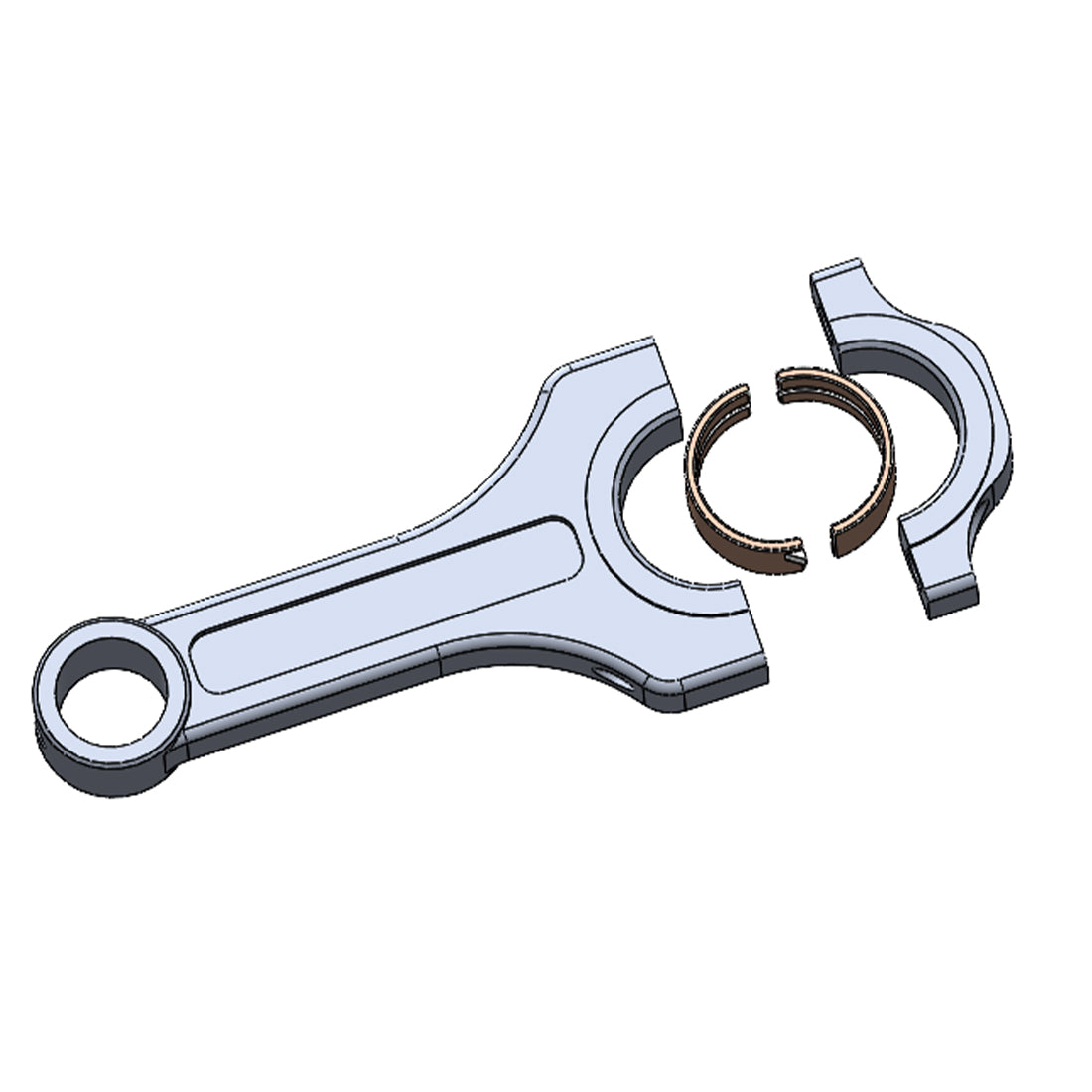

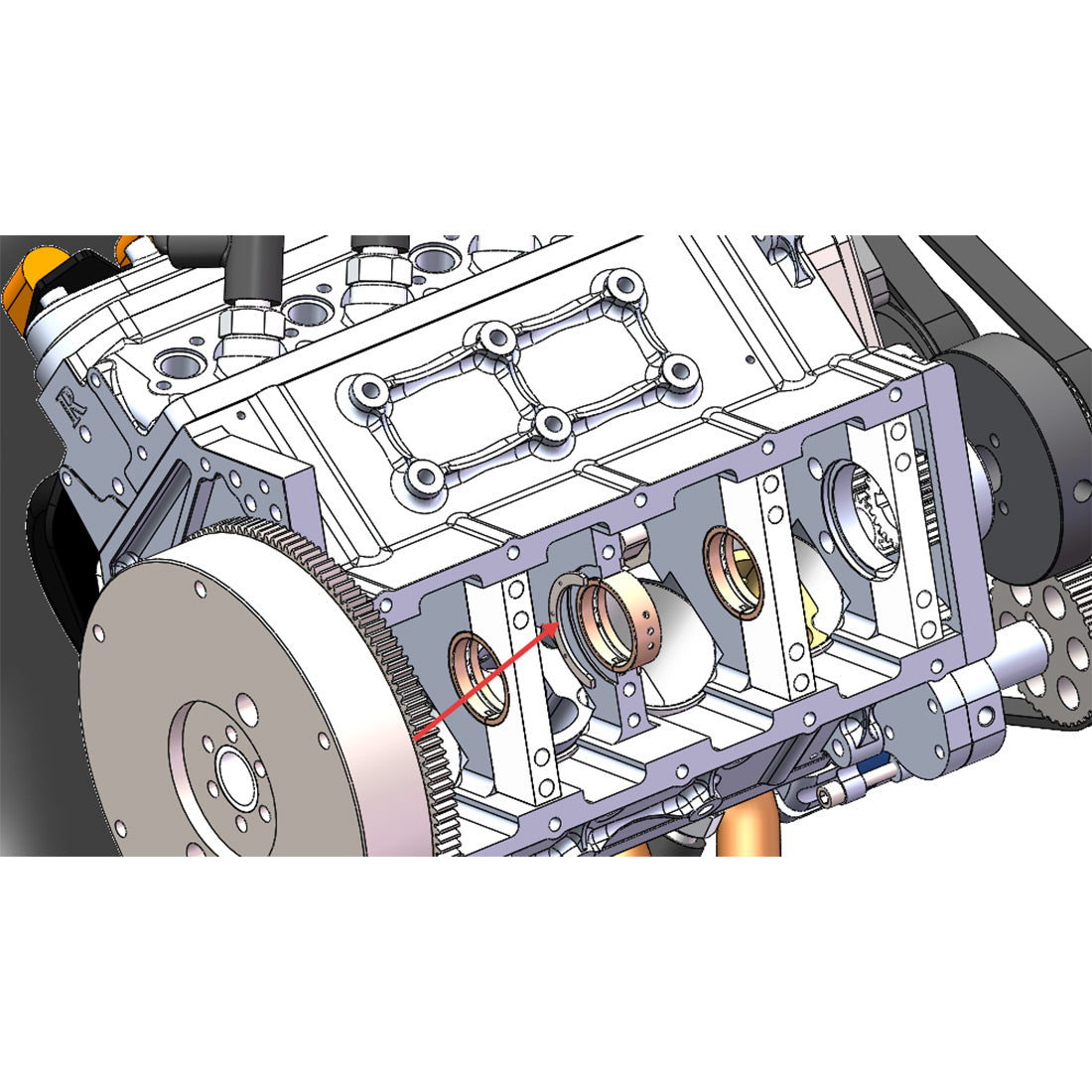

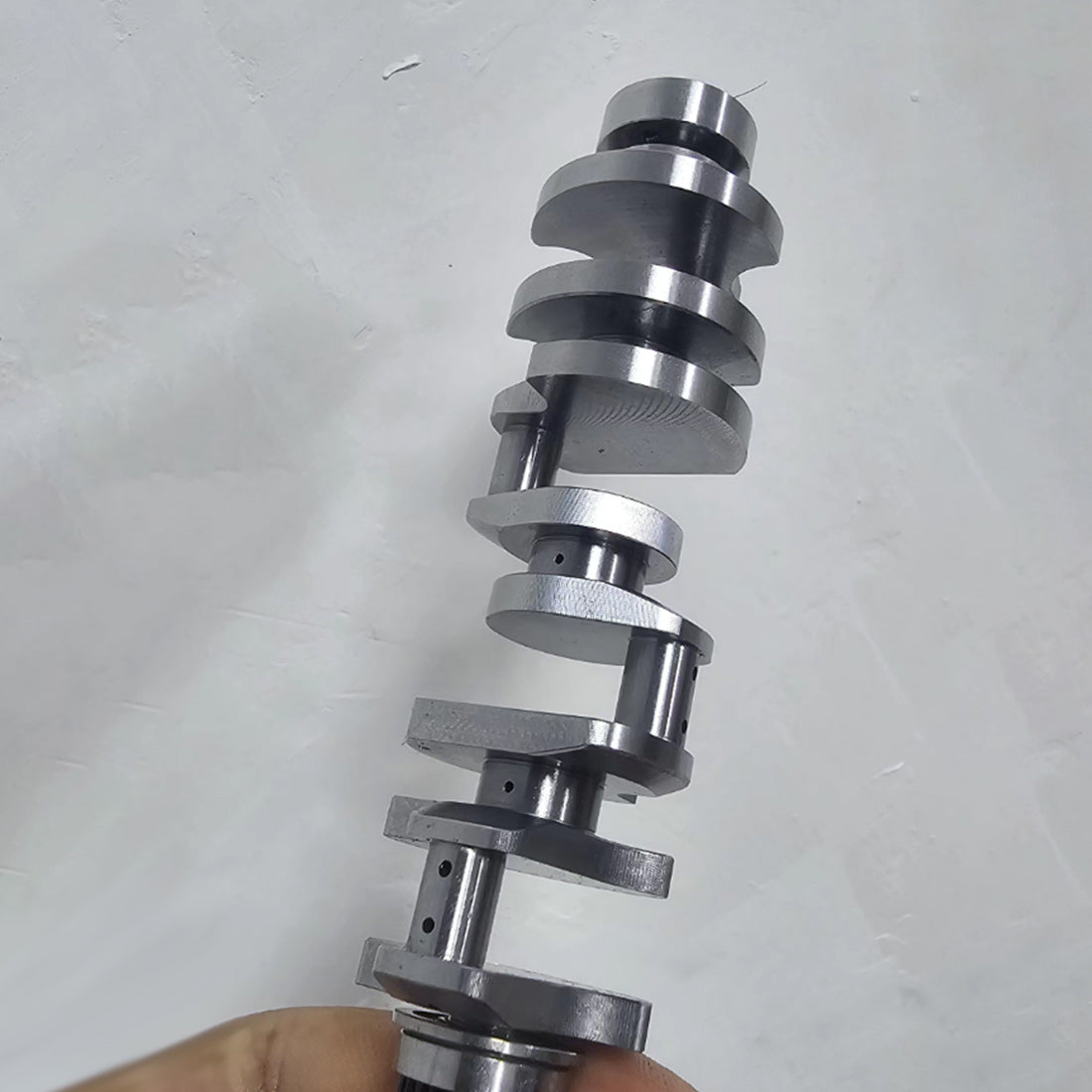

  • Drilled crankshaft oil passages: pressure-fed lubrication to the rod bearings, just like a full-size engine.
  • 7mm crankpin journals and LS-style counterweights for structural accuracy.
  • Flanged flywheel mount — no expansion sleeve shortcuts.
  • MCU digital ignition: calculates the optimal firing point in real time, replacing a mechanical distributor for cleaner combustion and stability up to 12,500rpm.
  • 3D-printed stainless steel exhaust manifold: optimized flow paths, heat-resistant, and visually authentic.
  • Integrated water pump with no exposed hoses, ready for RC drivetrain integration.

Ready for Expansion

The flywheel is pre-configured with mounting points for a centrifugal clutch or 6AT gearbox. Drop it into an RC chassis or a display setup — no custom fabrication needed.

Packaging / What’s Included

  • Components for full engine assembly: crankshaft, pistons, connecting rods, cylinder heads, valve-train, flywheel, intake manifold, stainless steel exhaust manifold, and integrated water pump
  • Assembly manual in English

Not Included (to be sourced separately from Stirlingkit)

  • MCU ignition kit
  • Cooling kit
  • Fuel tank assembly
  • Base mount
  • 8 × 1/4-32 spark plugs
  • 12V starting battery
  • Generator
  • Oil filter
  • Fuel

Why the LS-52 Matters

This isn’t a generic V8 model. It’s a miniature LS small-block built for enthusiasts who care about authenticity, mechanics, and the thrill of assembling something real. The LS-52 lets you touch, assemble, and hear a legendary engine come to life, all in a compact, 1/5 scale form.

Limited First Production: 50 units. March 2026 release.





Specifications:


.Material: Metal
.Color: Silver/Red
.Brand: CISON
.Model: LS-52
.Name: LS V8 Gasoline Engine Model

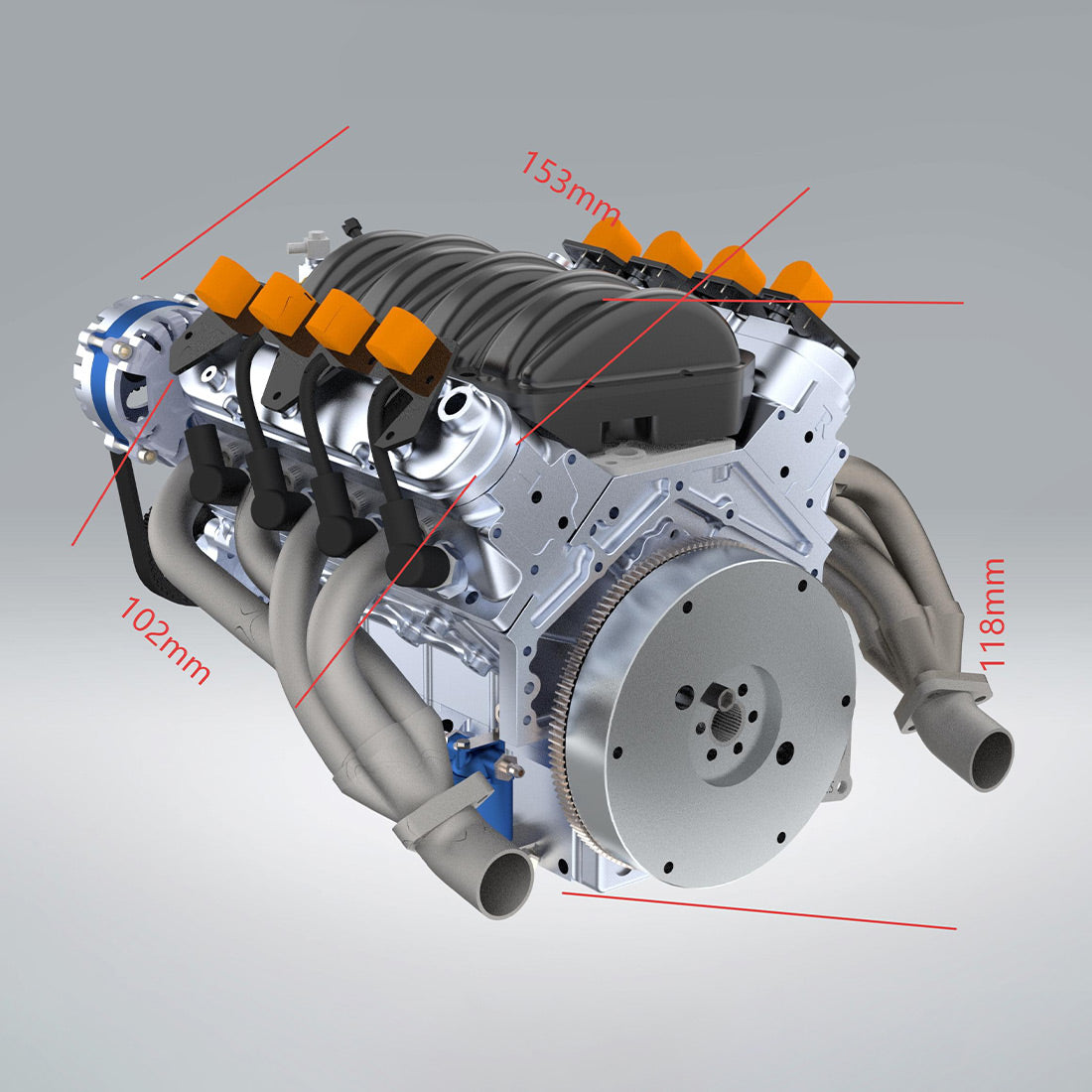

.Dimensions: 153×118×102mm
.Form: Kit Version
.Engine Type: Gasoline Internal Combustion Engine
.Valve Mechanism: Overhead Valve (OHV)
.Displacement: 52cc (8*6.5cc)
.Cylinder: V8
.Stroke: Four-stroke
.Bore: 20.0mm
.Stroke: 20.5mm
.Speed: 1600-12500rpm
.Power: Approx. 6ps
.Cooling Method: Wet Water Cooling
.Starting Method: Motor Start
.Ignition Method: MCU ignition (not included)
.Spark Plugs: 8 x 1/4-32 dedicated spark plugs (not included)
.Starting Power: 12V battery (not included)
.Lubrication Method: Independent lubrication system (oil filter not included)
.Fuel: 92# gasoline (92# or higher recommended)
.Engine Oil: 4T engine oil (10W50/25mL recommended)
.Product Weight: 1700g
.Package Weight: 3300g
.Product Dimensions: 15.3 x 11.8 x 10.2cm
.Package Dimensions: 19 x 19 x 21cm
.Packing: Gift box with top and bottom lid
.Age: 16+
