Rcexl CDI Tester Electronic Ignition Igniter Tester for Gasoline Engine
.Technical Parameters: The power supply of this tester is taken from the power supply of the sensor interface end of the (Recxl) igniter. (Voltage does not exceed 5.5V)
.Voltage: 5V; Size: 54mmxx 40 x 24mm
.Driven by science and technology, the single-function electronic igniter simulation tester cannot meet the requirements of users. So this CDI TESTER tester was produced.
.The tester is simple in structure and easy to operate. Small in size and easy to carry, it is an indispensable instrument for model aircraft players.
.This tester is composed of CPU with 10-bit ADC with advanced Harvard structure. You can test single-cylinder, double-cylinder, V-cylinder, 3W (dual magnet), star-shaped multi-cylinder (3, 5, 7, 9) electronic igniters by pressing the SELECT button.

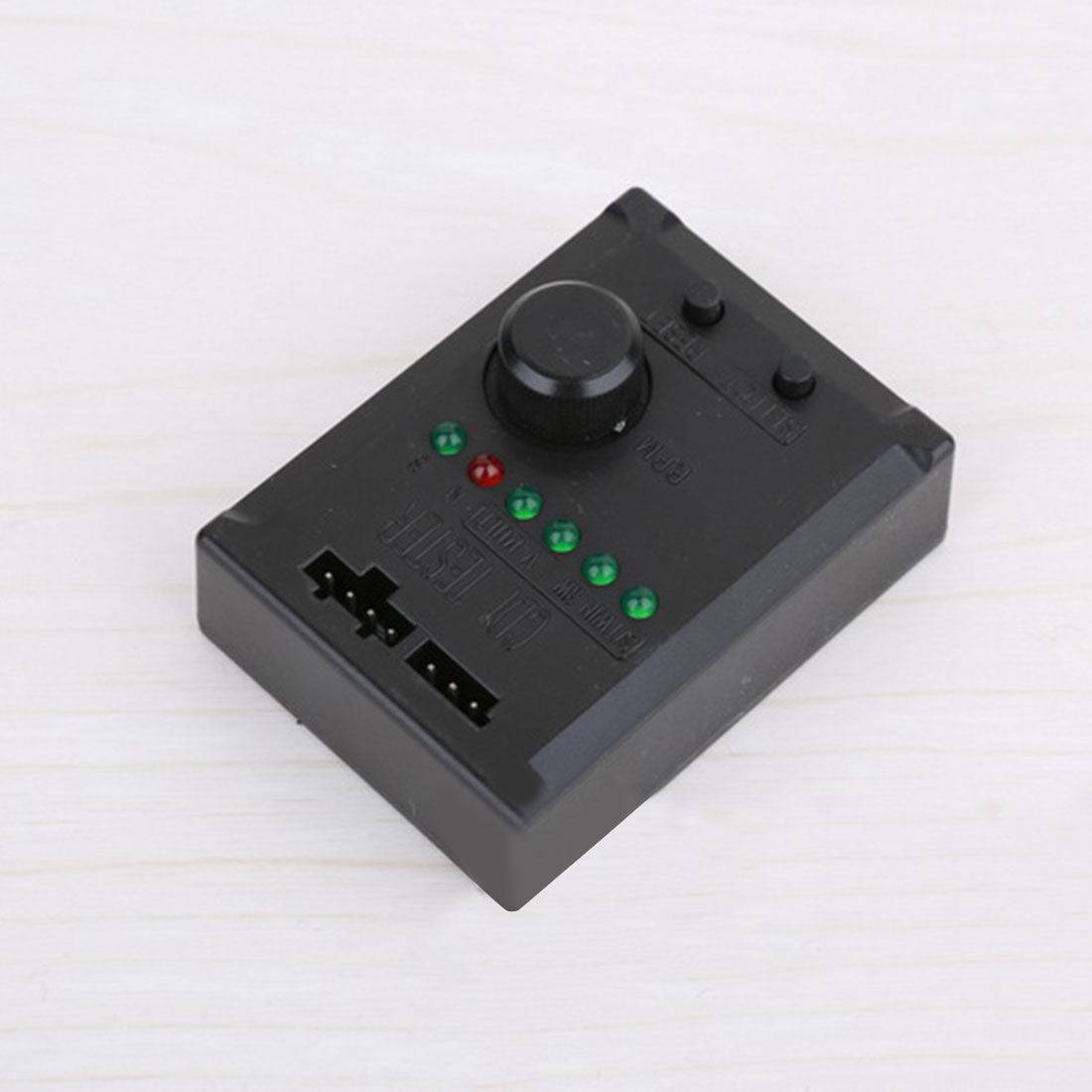

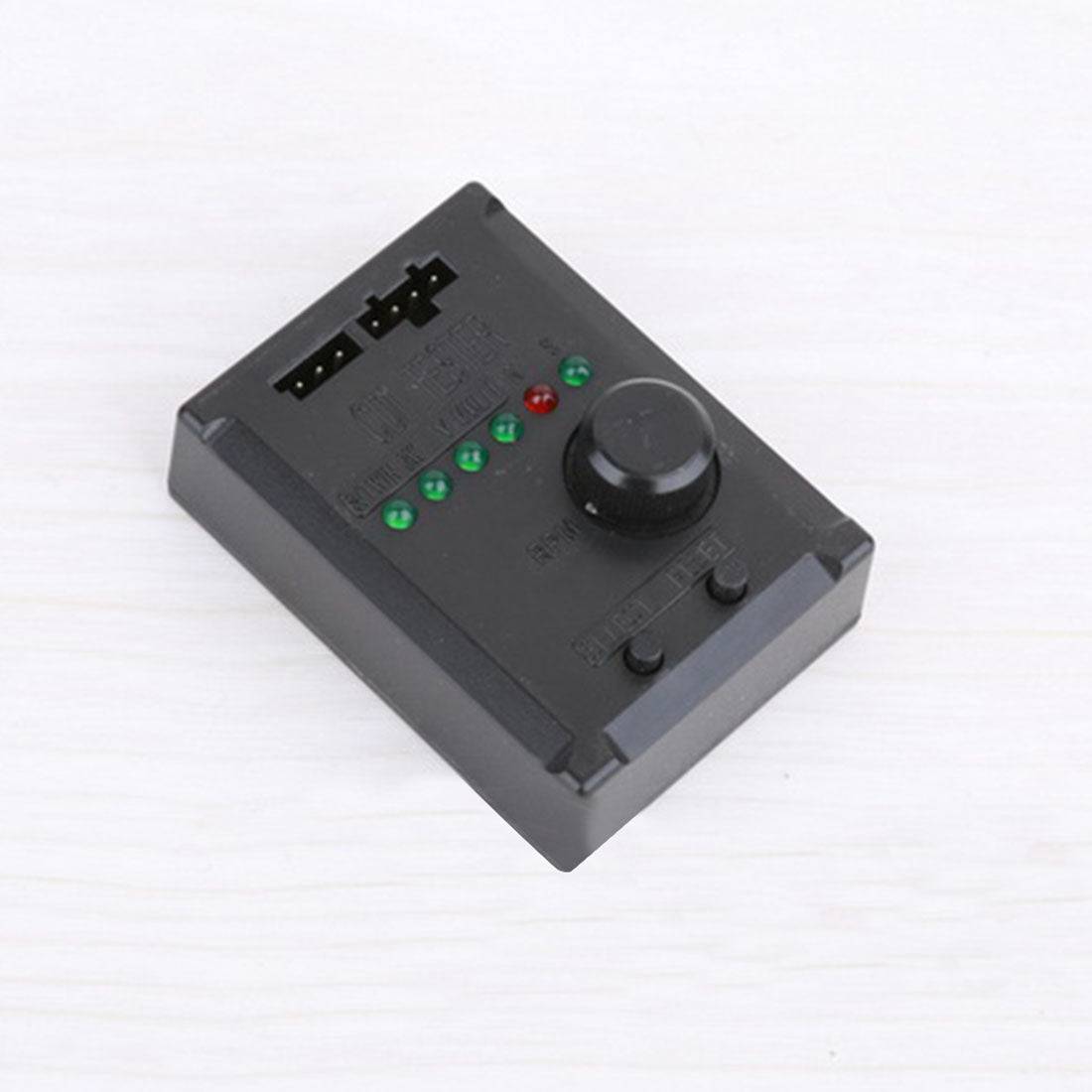

.Panel: The tester panel is very simple. There are only two buttons SELECT and RESER, and one RPM knob. Six status indicators (S/TWIM, 3W, V, MULTI, N, S). The interface of the signal sensor of the two igniters.
.Easy to operate; insert the sensor wiring of the Recxl igniter into the corresponding socket (single and double cylinder igniters are inserted into the 3-hole socket, and the other igniters are inserted into the 4-hole socket). Press the SELECT button, and the indicator light will light up at the corresponding indicator position (for example, the indicator light of S/TWIN will light up for a dual-cylinder igniter). Adjust the RPM knob to change the ignition frequency of the igniter.
.For Age: 14+
.Color: As Shown
.Material: Plastic + Electronic Components
.Product Weight: 24.6g
.Package Dimensions: 15 x 10 x 6cm
.Package Weight: 50g
.1 x CDI Tester
