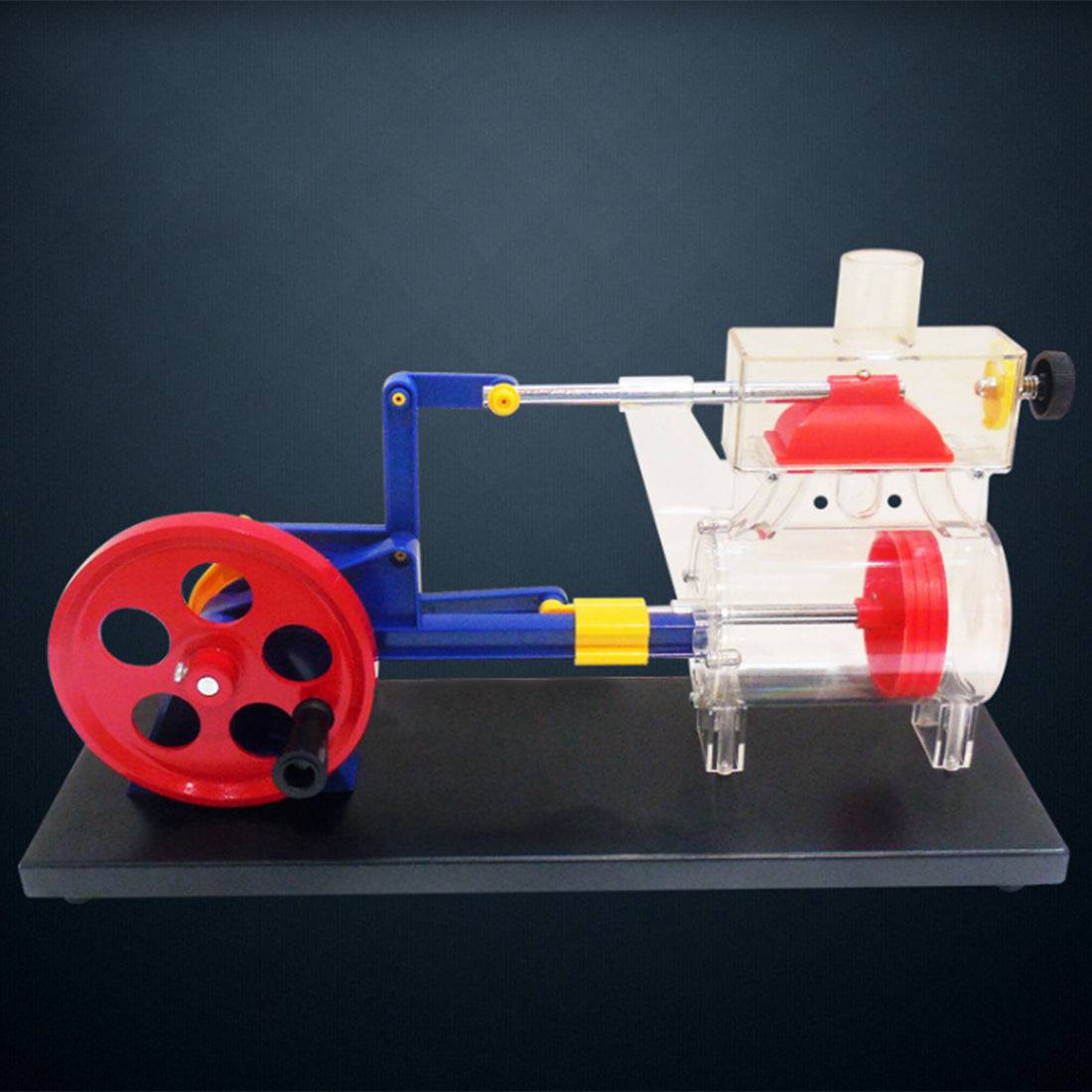

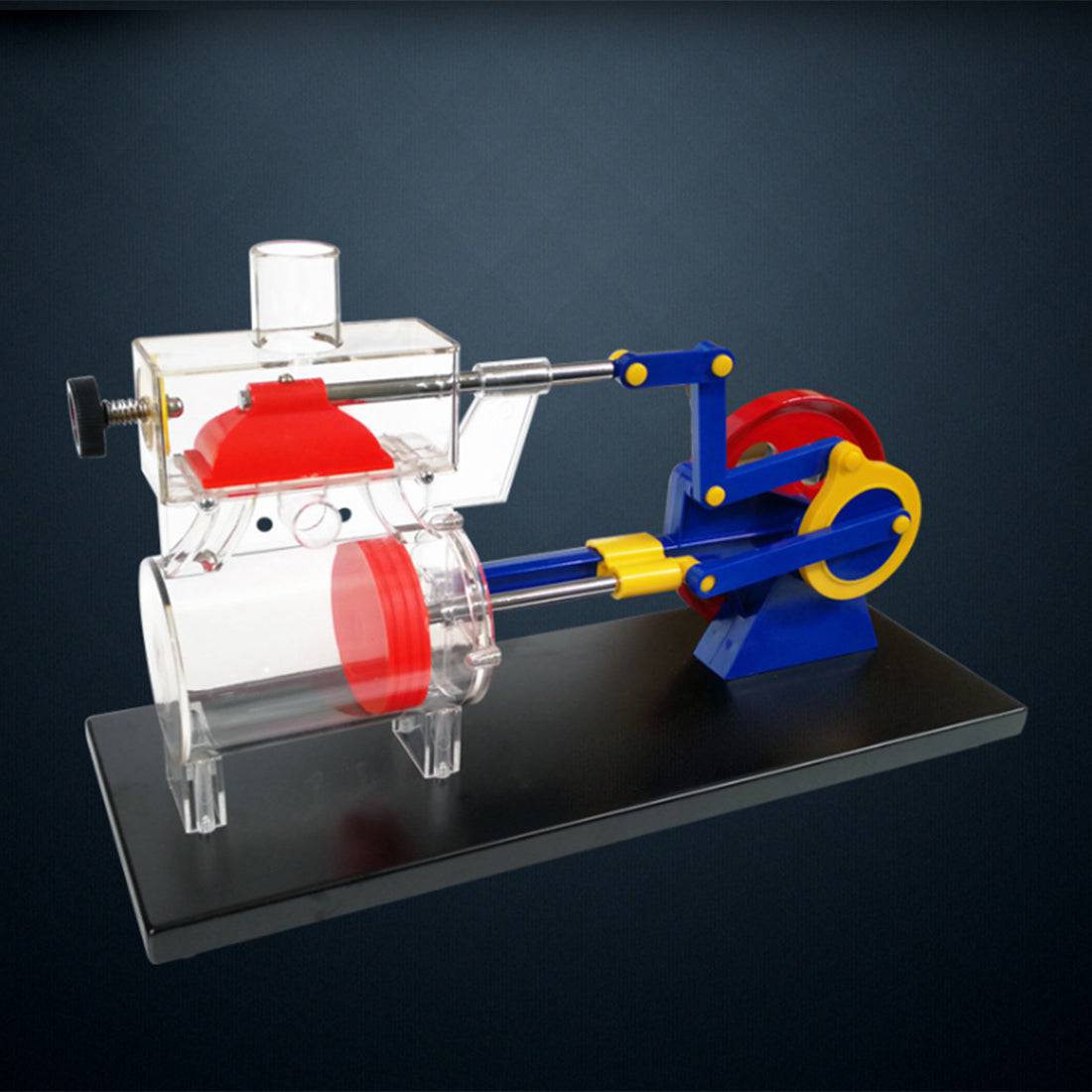

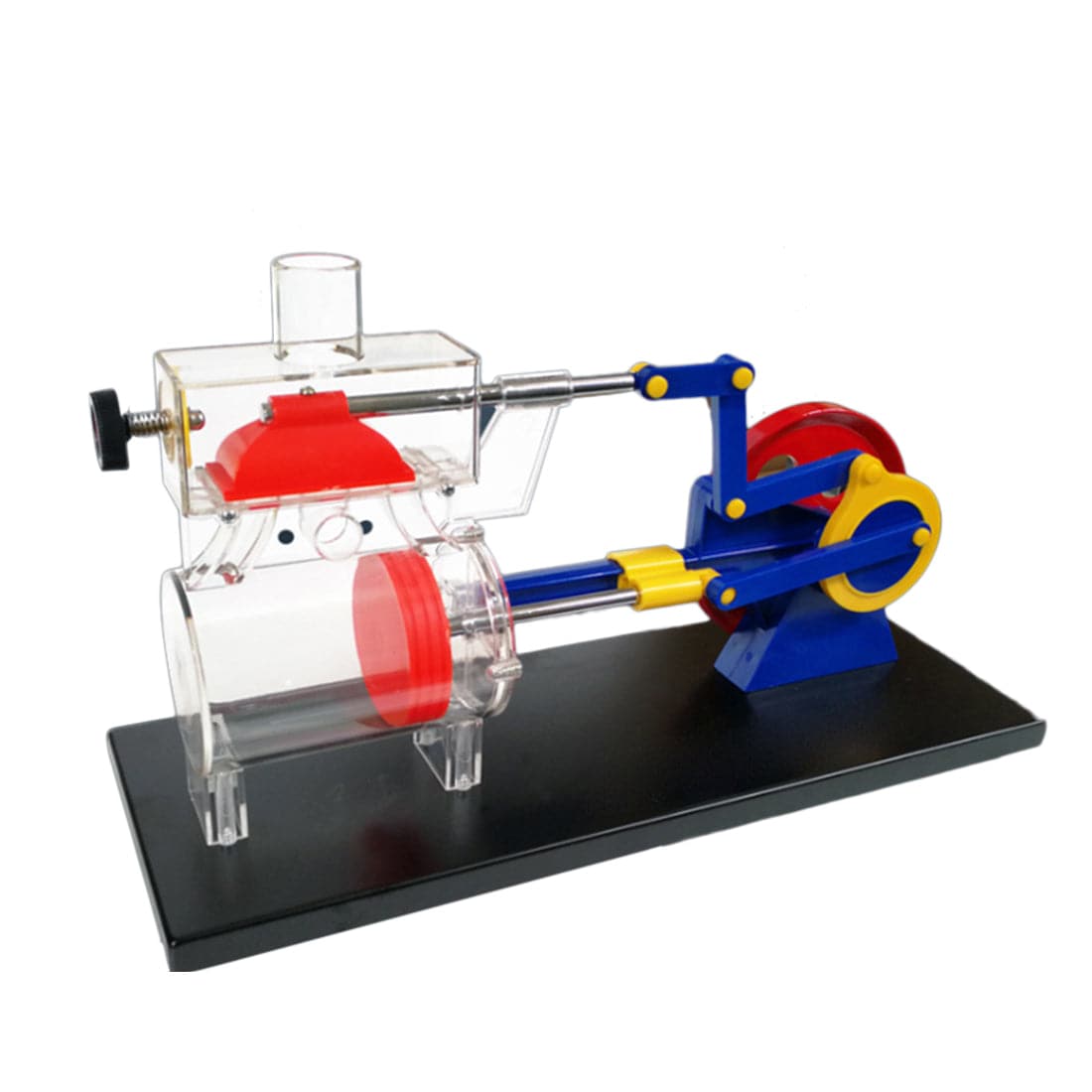

Steam Engine Model Physical Experiment Equipment Teaching Instrument
.This product is a pneumatic double-pushing steam engine with adjustable airflow. The steam is controlled by the reversing valve, which can alternately push the piston from the steam inlet at both ends of the cylinder.
.When the gas source supplies enough simulated steam to it, it can observe the shocking effect and visual impact caused by its high-speed operation.
.Ingenious Design: the model is fixed on the bottom plate for easy placement, and the workmanship is very fine. Some parts are transparent and designed to facilitate the observation of the working details of the various components of the instrument without dead angle.
.Simulated steam pressure adjustment mechanism for machine speed adjustment
.Instrument composition and main performance parameters: The instrument is mainly composed of cylinder, piston, air supply cover, air flow reversing valve, crankshaft linkage, flywheel, bracket and bottom plate. Piston diameter 68mm. Piston stroke 54mm. Instrument safety speed ≤600r/min. Instrument dimensions 395*140*230mm. Cylinder, air chamber and air passage are transparent, working principle is visible
.Tips: This instrument needs to be used with small air sources. It is used for teaching experiment demonstrations to help students understand the working process and principle of steam engine and improve their interest in learning. Please keep it after use and pay attention to the cleaning and maintenance of the instrument so that it can be used for a longer period of time.
.Suitable for people over 14 years old
.Color: As Shown
.Material: Metal + Plastic
.Product Dimensions: 39.5 x 14 x 23cm
.Product Weight: 2000g
.Package Weight: 2200g
.Packing: Carton Box
.1 x Steam Engine Model
