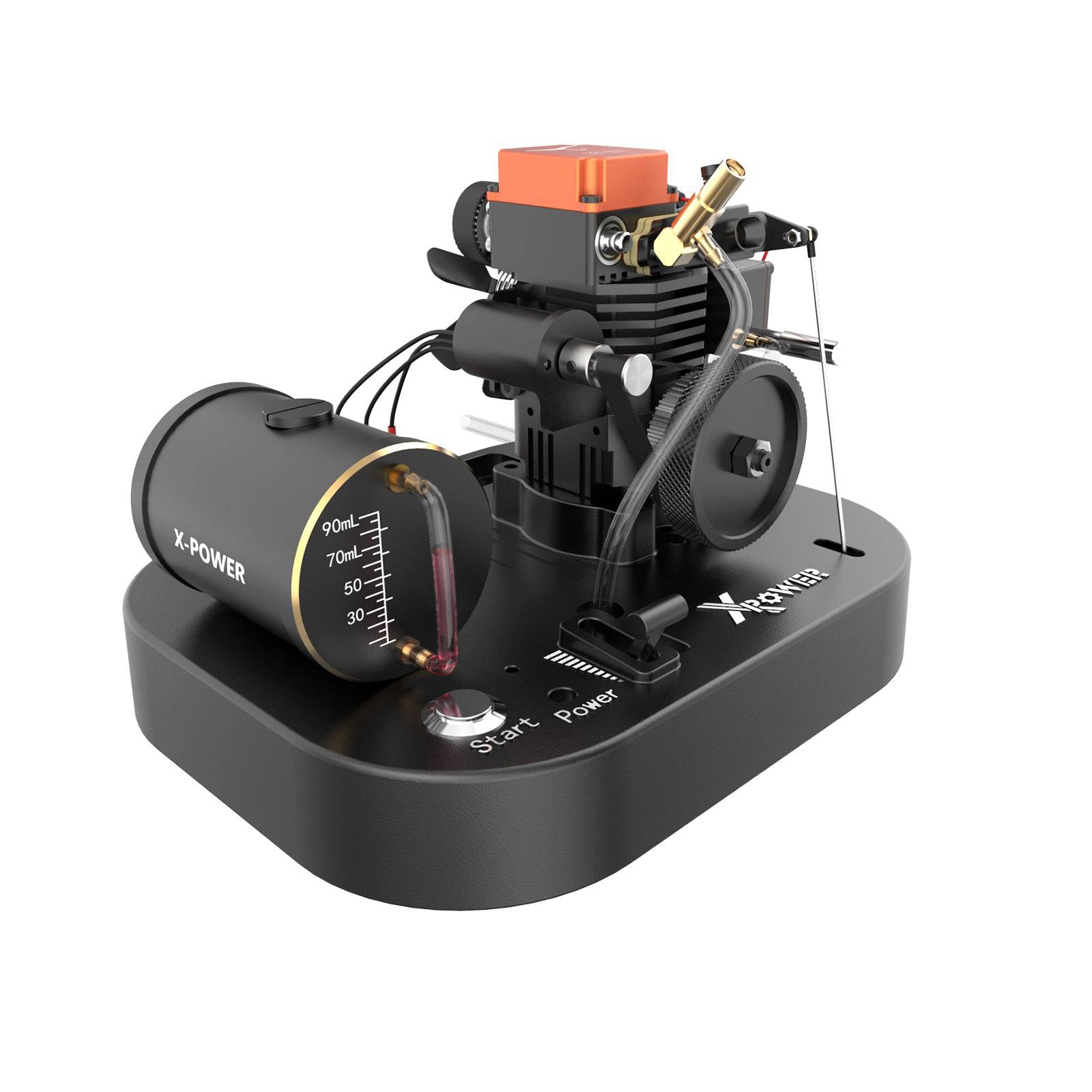

TOYAN FS-S100AC 4 stroke Methanol Engine Assembly Starting Full Set for 1/8 1/10 1/12 RC Car Ship Model

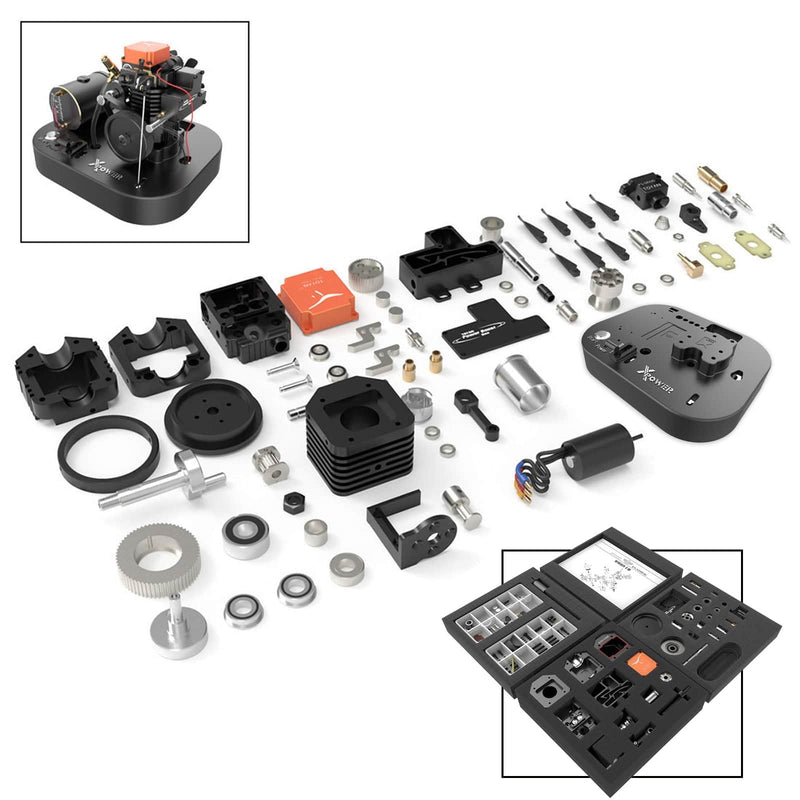

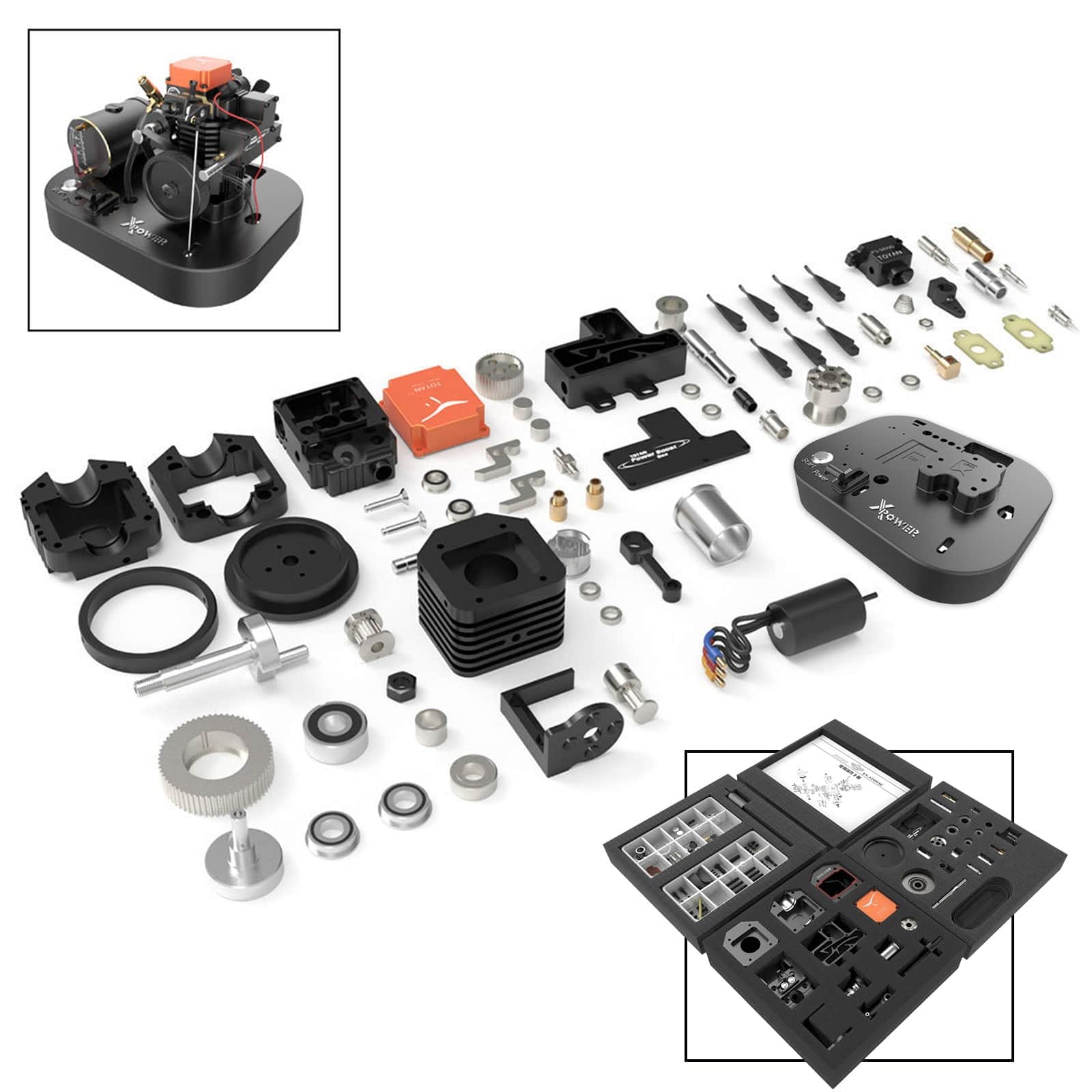

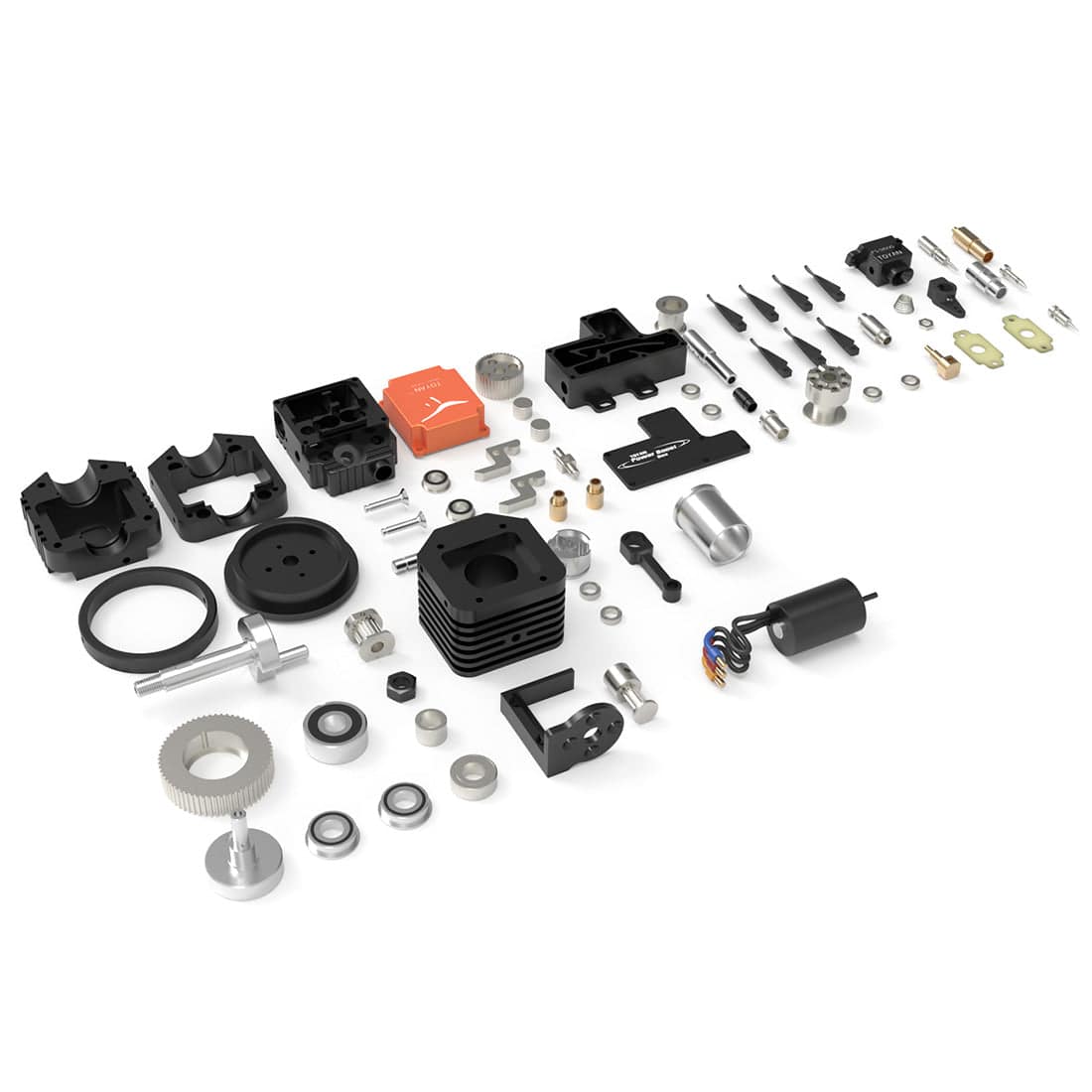

Including Engine, Base, 3-in-1 ESC, Glow Plug, Oil Tube, Gas Pedal Arm, Throttle Lever, Start Button, Screw. After you get the kit, it can strat when added methanol fuel.
1. This engine has been upgraded to a T plug one, so the parcel doesn't include the battery box, battery, and charger . pls buy a rechargeable lithium battery if you need. thanks again for your understanding.
2. the tank is plastic now.

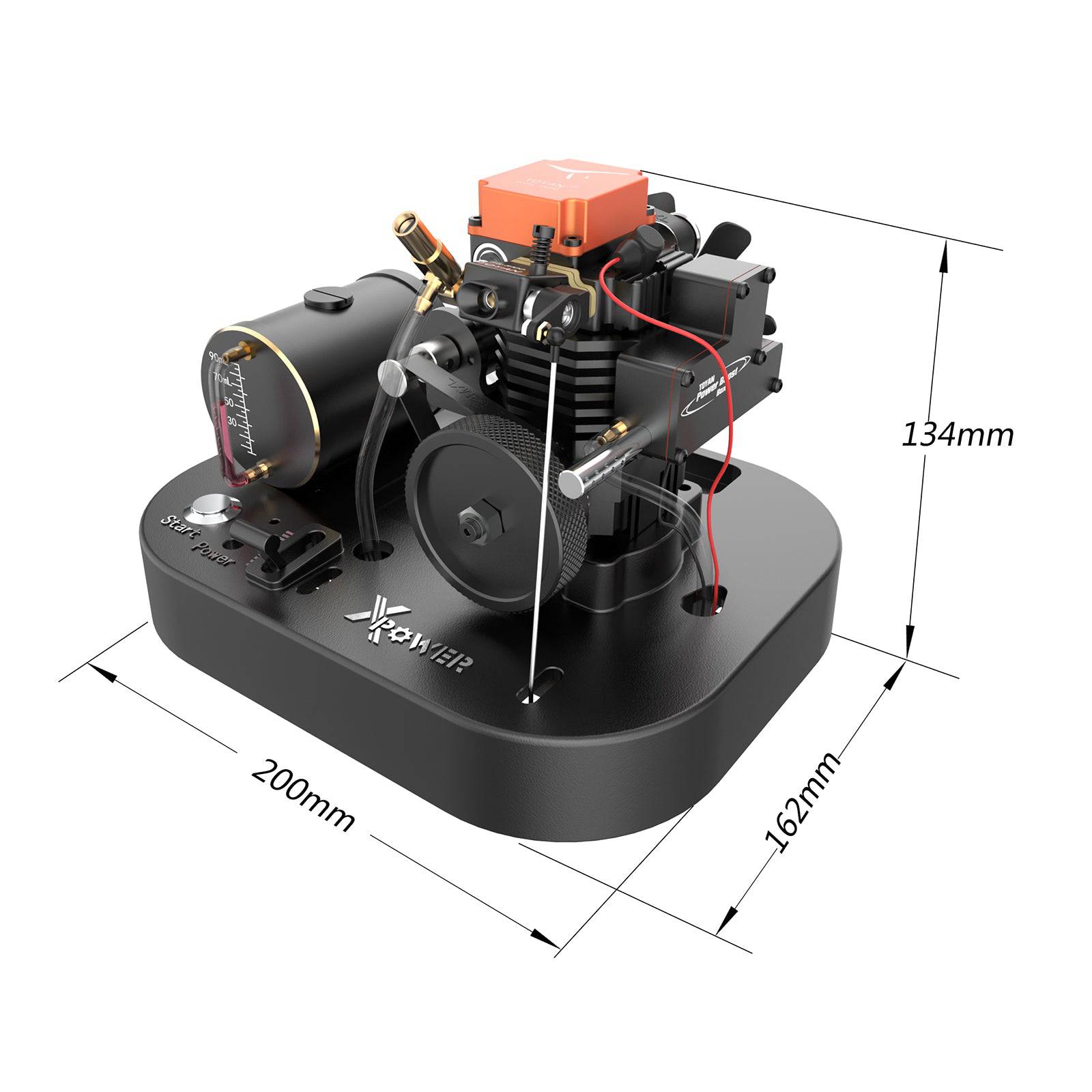

.Parameters: Engine Length x Width x Height: 100.5 x 85.4 x 86.5mm. Cylinder Diameter: 17.0mm. Piston Diameter: 16.6mm. Displacement: 3.5cc. Output Power: 0.5ps Horsepower. Revolving Speed: 2500-13500rpm. Machine Weight: About 1.7kg. Starting Battery: 7.4v 20C lithium battery. (not included) Battery Capacity: 2400mAh. (not included) Charging Time: 4h. Tank Capacity: 90mL. Running Time: 40min

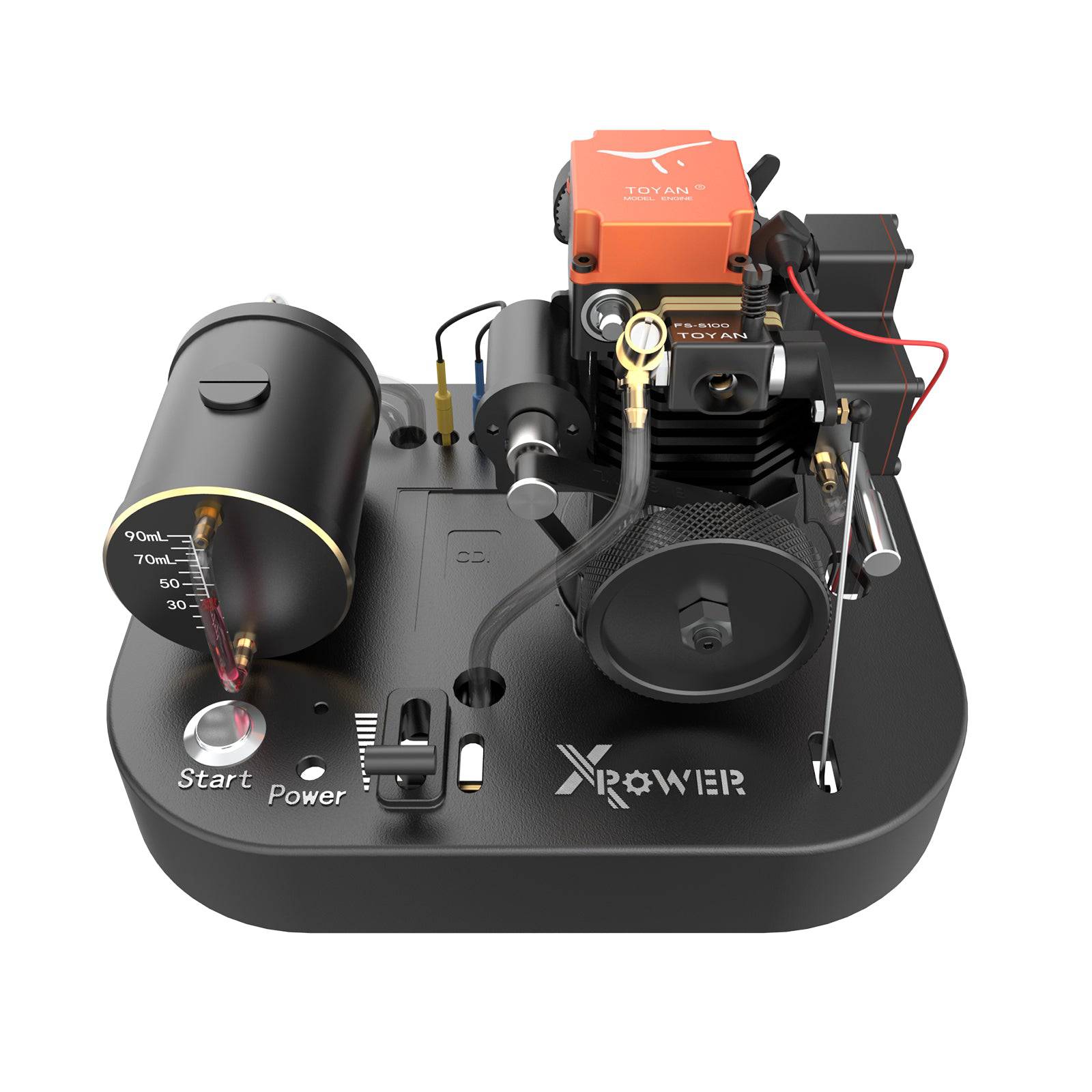

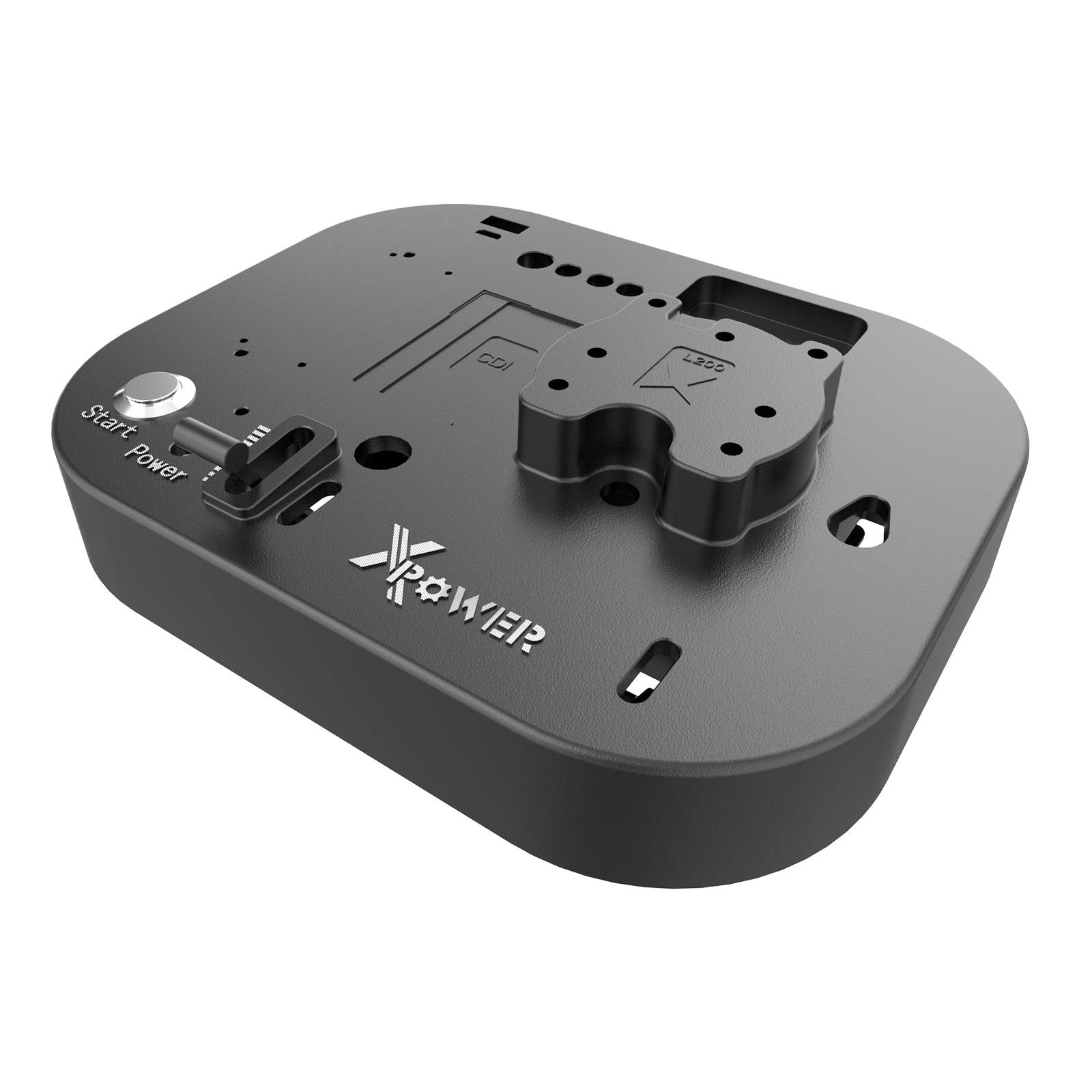

All-metal body. Made of aluminium alloy and alloy steel. Anodized coloring process. The surface is fine and smooth. The engine is small and powerful, with a one-click start, and the bracket base keeps the engine steady while idling, without toppling or vibrating.
Using methanol as fuel. As the piston moves back and forth in the cylinder, the process of moving from one end of the cylinder to the other is called a stroke. Four-stroke engines are divided into suction stroke, compression stroke, power stroke and exhaust stroke
.How to Operate：
The ignition part is the glow plug connected to the corresponding hot glow plug cap and then connected to the voltage regulator module, and finally connected to the 7.4v T-plug battery (not included).
Fuel Part: The fuel tank is connected to the oil tubing and then connected to the engine. The starting part is 11v T-plug battery (not included) connected to the starting ESC and then connected to the simulator and the starting motor. The starting motor is attached to itself

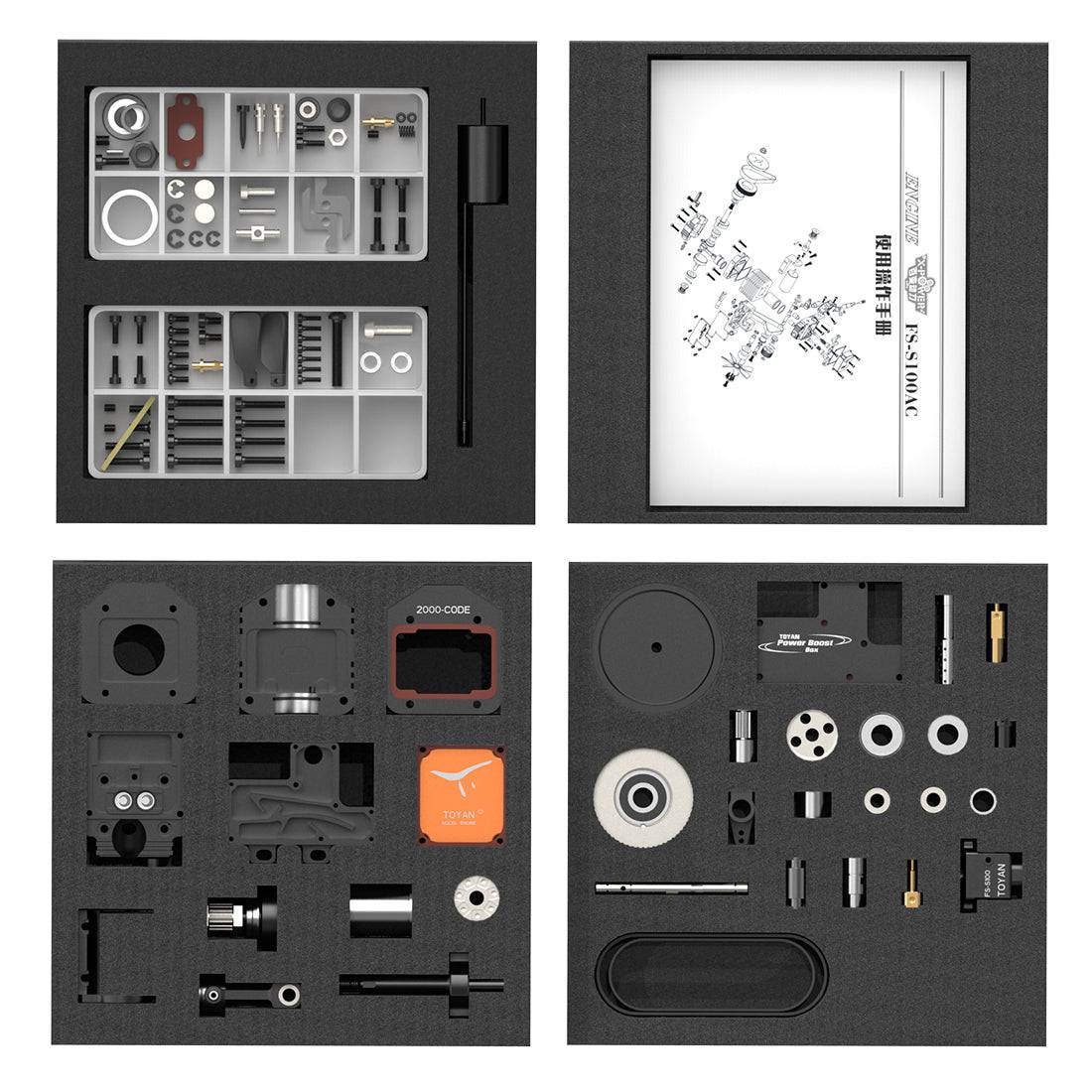

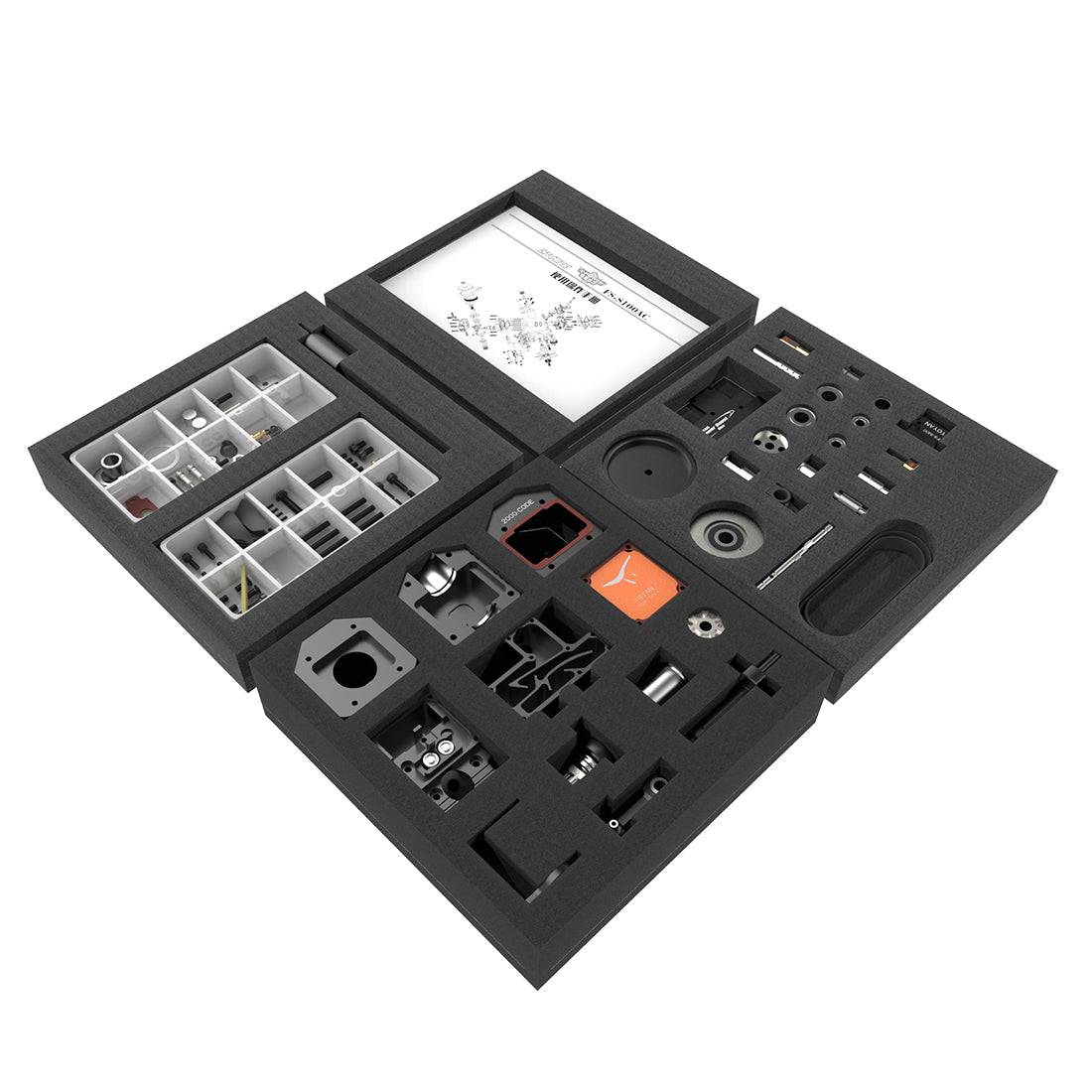

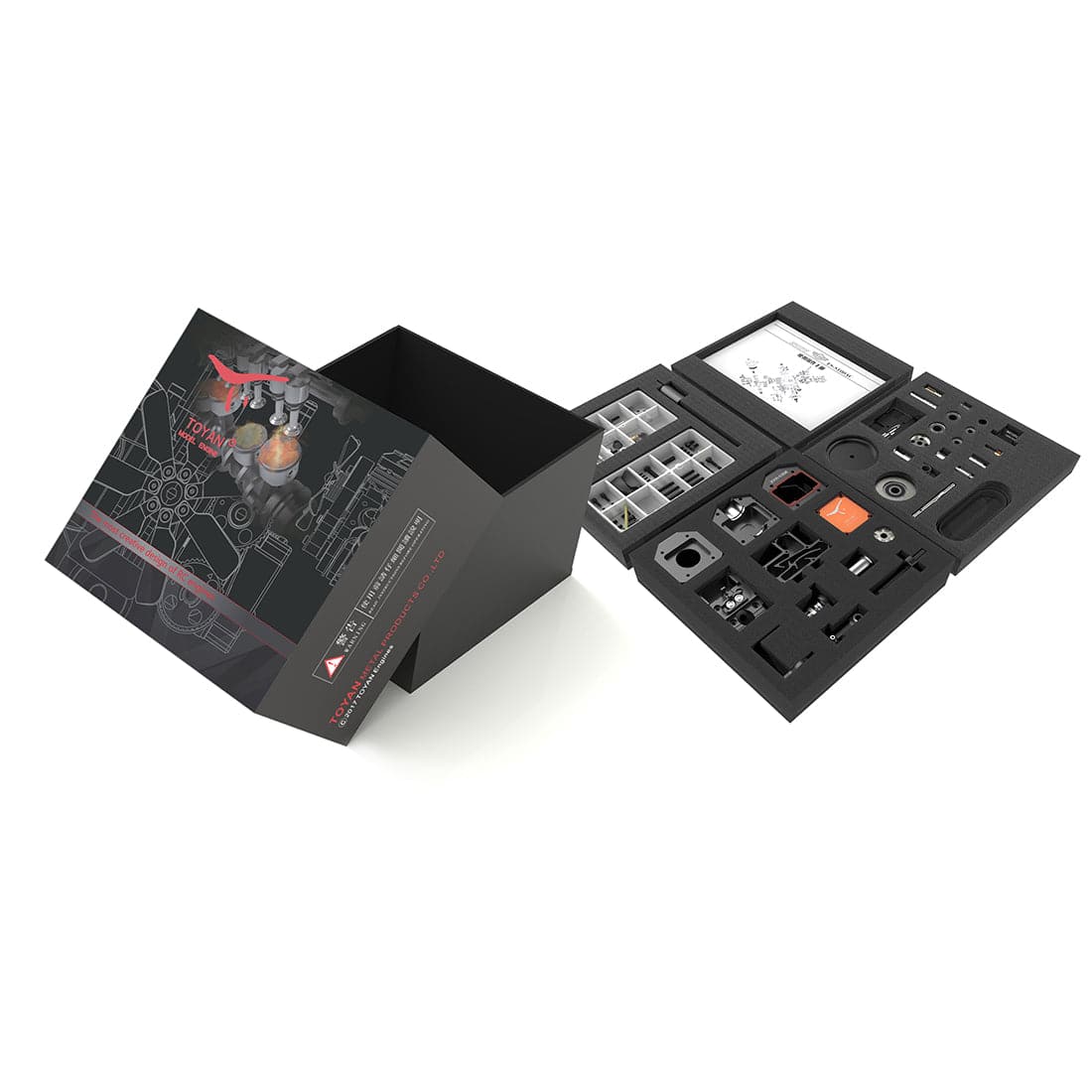

The kit contains engine and complete accessories. Just need to prepare methanol fuel by yourselves.
(The fuel is typically formulated as 20% castor oil, 5-30% nitromethane, and the rest is methanol. This product does not have high requirements on methanol fuel, and 20-25% concentration can be used). Please pay attention to safety during operation.
The engine is suitable to be installed in 1:8, 1:10, 1:12 scale model car, model ship, model aircraft and other equipment.
This kit is also suitable for decoration, science and education, exhibition, etc.
