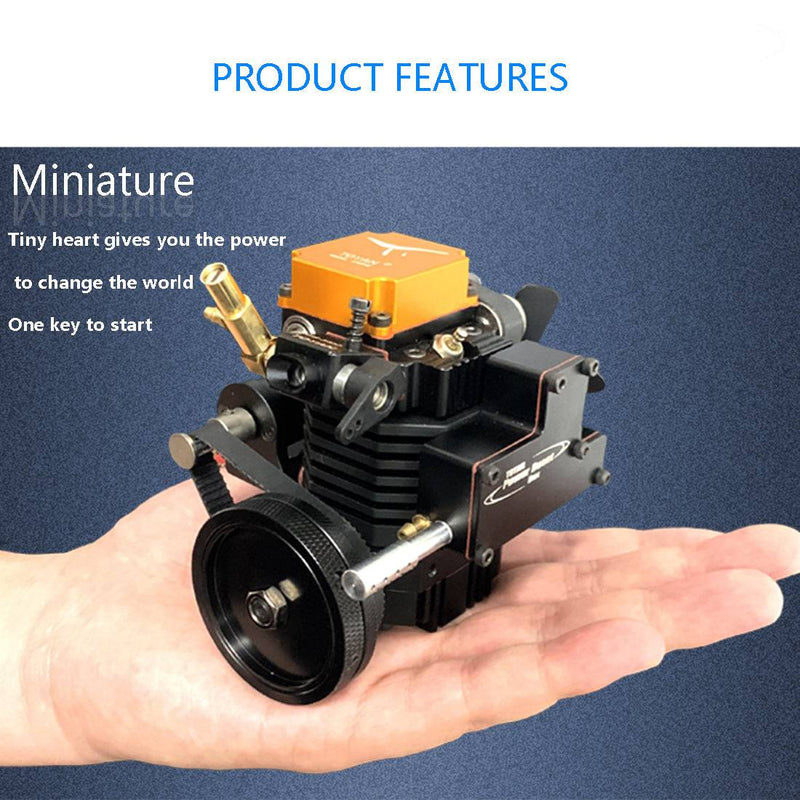

Toyan Four-stroke Methanol FS-S100A Engine Set with Base Fuel Tank Battery Start ESC Hot Head Heat Head Cap Throttle Push Rod and Throttle Lever for 1:10 1:12 1:14 Car Ship Airplane Model
1. This engine has been upgraded to a T plug one, so the parcel doesn't include the battery box, battery, and charger . pls buy a rechargeable lithium battery if you need. thanks again for your understanding.

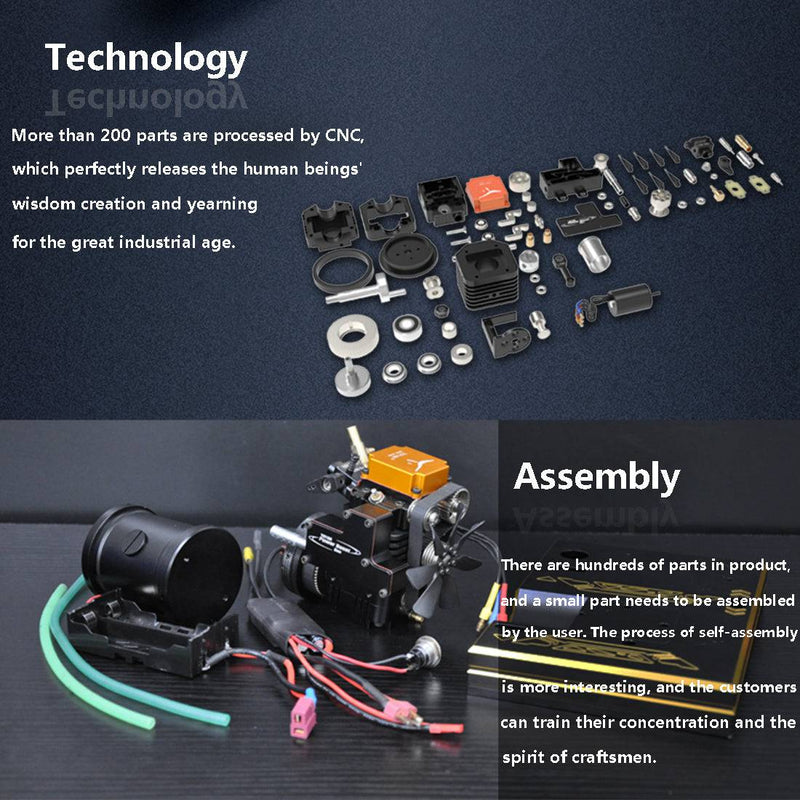

.The kit includes: FS-S100A engine, bracket base (with throttle push rod, throttle lever, one-button start button, metal fuel tank, battery box), ignition start module, heat head, heat head cap, that is, after the hand, if methanol fuel Can be started

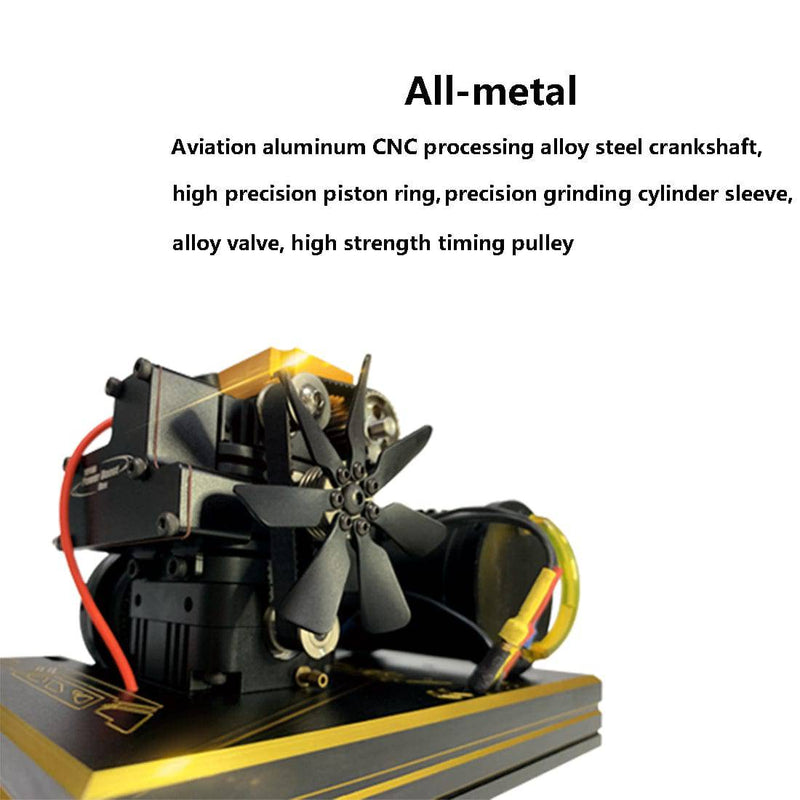

.Exquisite Workmanship: all-metal body design, the material is made of aluminum alloy and alloy steel, anodizing and coloring process, the surface is delicate and smooth, the high-end atmosphere is graded, the engine is small and the horsepower is large, with one button to start, the bracket base can let the engine It remains stable when idling, does not dump and vibrate

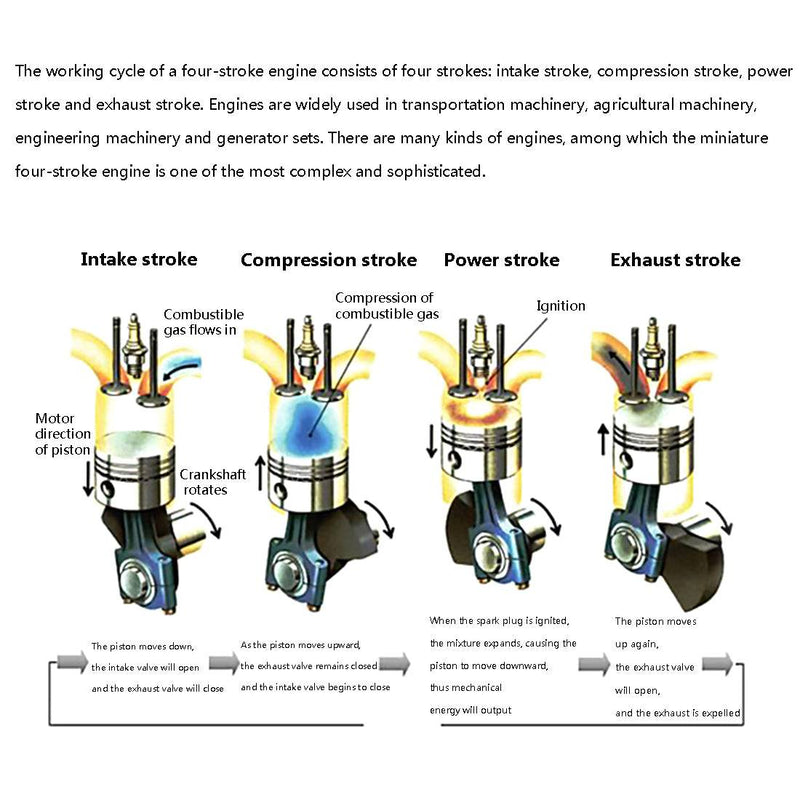

.Working Principle: using methanol as fuel. The process of moving from one end of the cylinder to the other when the piston reciprocates within the cylinder is called a stroke. The four-stroke engine is divided into an intake stroke, a compression stroke, a power stroke, and an exhaust stroke.
.Operation Method: the ignition part is connected to the corresponding heat head cap and then connected to the voltage regulator module, and finally connected to the 7.4v T plug-in battery. The fuel part is connected to the fuel tank after the fuel tank is connected to the engine, and the starting part is the 11vT plug battery. After starting the ESC, connect the simulator and the starter motor. The starter motor is included with it.
.Tips: This set of engines and accessories are complete, just need to prepare methanol fuel (the formula of this type of fuel is generally: 20% castor oil, nitromethane 5-30%, the rest is methanol.
.This product does not require high methanol fuel. It can be used at a concentration of 20-25%. Please pay attention to safety during operation.

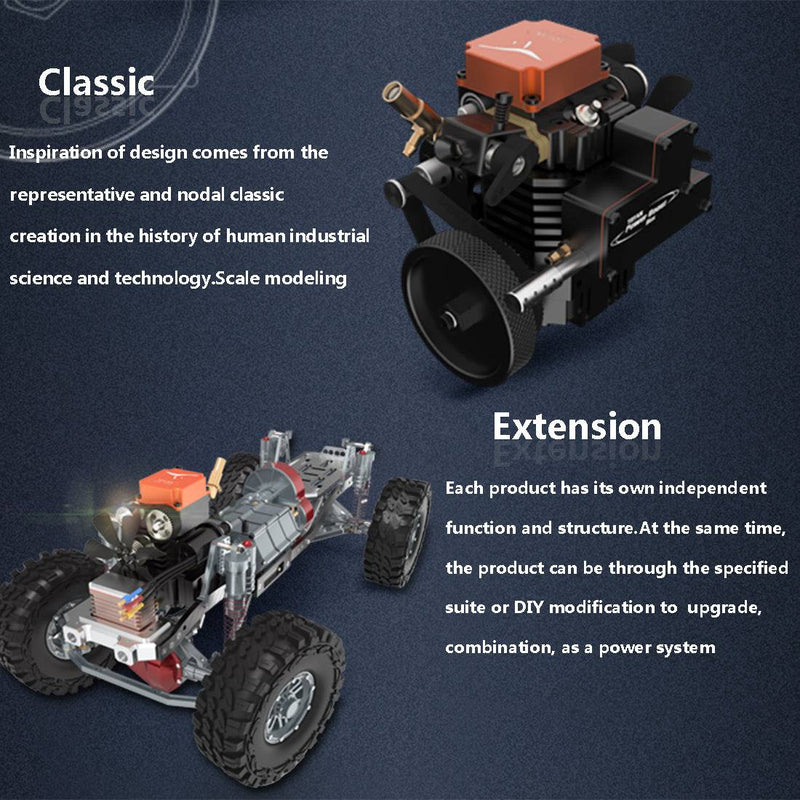

.The engine is suitable for installation on models such as 1:10, 1:12, 1:14 scale, ship model, model airplane, etc. This set is also suitable as a decoration, science and education, exhibition, etc.
.For Age: 14 years old or older Specifications:

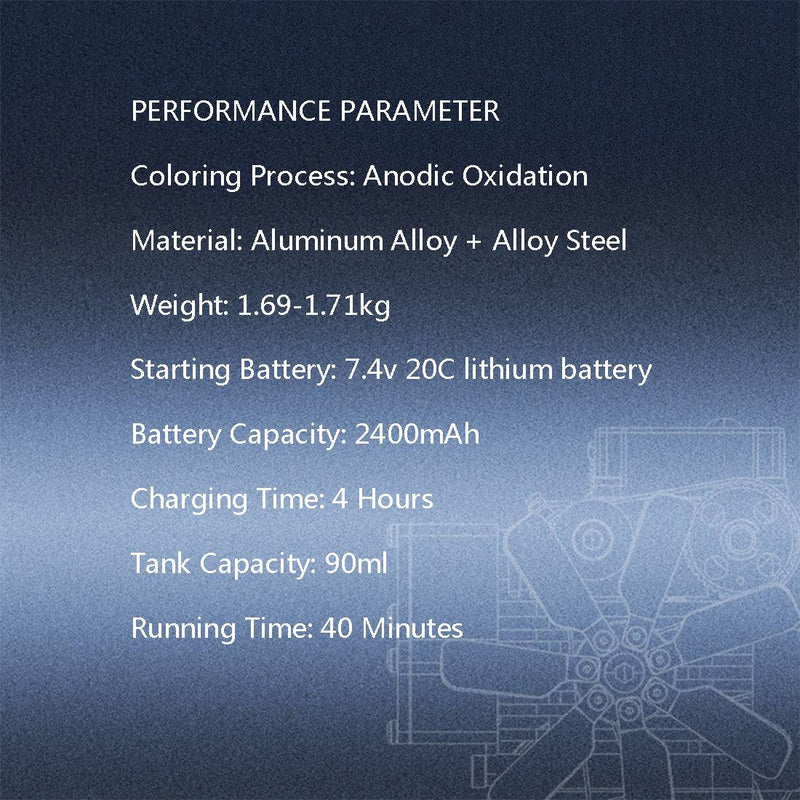

.Color: As Shown .Material: Aluminium Alloy + Alloy Steel .Engine length x width x height: 100.5x85.4x86.5mm .Cylinder Diameter: 17.0mm .Piston Diameter: 16.6mm .Displacement: 3.5cc .Output Power: 0.5ps horsepower .Speed: 2500-13500rpm .Machine Weight: about 1.7kg .Starting Battery: 7.4V 20C lithium battery .Battery Capacity: 2400mAh .Charging Time: 4h .Fuel Tank Capacity: 90mL .Running Time: 40min .Product Weight: 1710g .Package Dimensions: 26 x 16 x 20cm .Package Weight: 2000g .Packing: Box

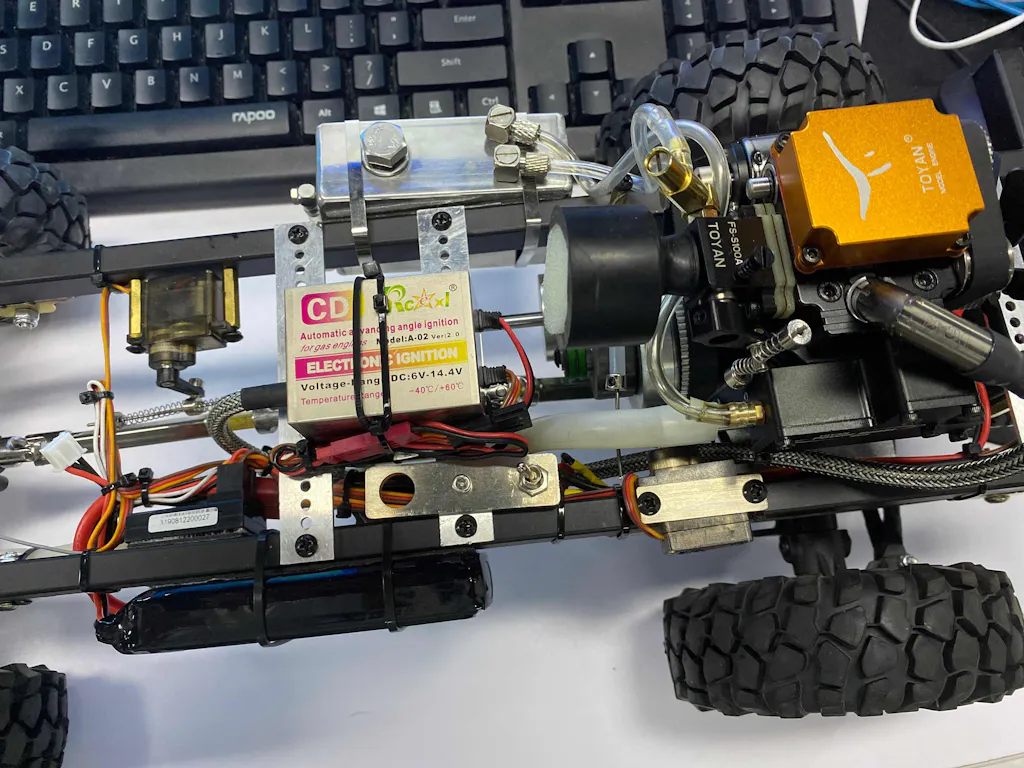

Good for the price. Got it for my car and need to put it on still. Started in 1 pull after letting the carb bowl fill up. 5 like it says
Toyan Four stoke engine with base
Brilliant looking piece of kit. Not run yet at time of writing this but so far so good. This thing looks excellent in a display cabinet!!!
I must admit if it weren’t for YouTube videos I would have struggled to build it all up as instructions on putting it together isn’t too clear. But there’s plenty of videos out there to look at. As for the company Stirling kit.com they’ve been very good, will answer any questions if asked. Very helpful.
Great little piece of kit
The kit itself is amazing and works well.
One little issue that I can see is for fellow newbies to this hobby like me, the instructions to assemble are no where near clear enough (there is a video on youtube which is much better), especially on correctly configuring the esc and the starting up sequence.
Toyan 4 Stroke Methanol RC Engine FS-S100A Set With Base And All Start Kits
John A Winton
Extremely well made parts
Base is milled from solid aluminium
Very impressive overall
